862-693 WAGO Industrial Automation Components

862-693 on Powermatic Associates
WAGO

Part#:862-693

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

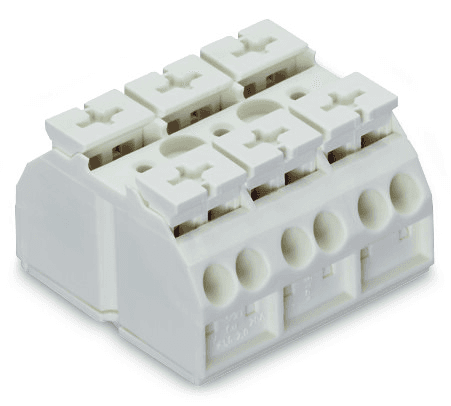

862-693 WAGO - 4-conductor chassis-mount terminal strip; without ground contact; 3-pole; 4 mm²; 4,00 mm²; white

Product Details

  • Weight
    20.68200544 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Actuator
    Push-button
  • Mounting Type
    Snap-in Foot At Pos. 1+3
  • Conductor Material
    Copper
  • Insulation Material
    Polyamide
  • Width
    1.417 inches, 36 millimeters
  • Depth
    1.378 inches, 35 millimeters
  • Flammability Class
    V0
  • Current
    32 amperes
  • Color
    White
  • Strip Length
    0.43 inches, 11 millimeters
  • Country of Origin
    Germany
  • Weight
    20.682 grams
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Voltage
    500 volts
  • Package Type
    Bag

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-693 on Powermatic Associates is $1.71. Order now.

About the product

Wago 862-693 is a feed-through/thru chassis-mount terminal strip designed for efficient connectivity. It features push-in CAGE CLAMP spring connections for secure and easy wire installation. This terminal strip is rated for a current of 32A according to IEC standards and is designed as a 1-deck/level unit. It has a net height of 6 kV and includes 3 feed-through poles (3P). The terminal strip can be mounted on a DIN rail or surface with an accessory snap-in foot. It is suitable for 0.5mm2 to 4mm2 fine stranded or solid conductors and #20AWG to #12AWG fine stranded or solid conductors. The terminal strip is made from polyamide (PA) 66 and halogen-free materials, ensuring durability and safety. It also features 12-wires (6 push-in + 6 push-in) connections and has a diameter rating of 500 V according to IEC standards. The dimensions are H22.3mm x W36mm x D35mm, accommodating a wide range of wiring configurations.
