862-503 WAGO Industrial Automation Components

862-503 on Powermatic Associates
WAGO

Part#:862-503

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

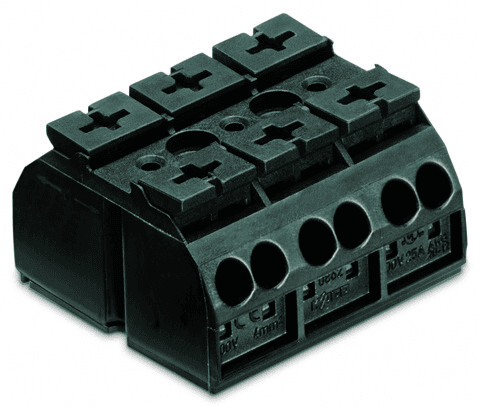

862-503 WAGO - 4-conductor chassis-mount terminal strip; without ground contact; 3-pole; 4 mm²; 4,00 mm²; black

Product Details

  • Weight
    20.48800539 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Width
    1.417 inches, 36 millimeters
  • Weight
    20.488 grams
  • Voltage
    500 volts
  • Strip Length
    0.43 inches, 11 millimeters
  • Package Type
    Bag
  • Mounting Type
    Screw
  • Insulation Material
    Polyamide
  • Flammability Class
    V0
  • Country of Origin
    Germany
  • Depth
    1.378 inches, 35 millimeters
  • Current
    32 amperes
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Conductor Material
    Copper
  • Color
    Black
  • Actuator
    Push-button

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-503 on Powermatic Associates is $1.71. Order now.

About the product

Wago 862-503 is a feed-through/thru chassis-mount terminal strip designed for efficient connectivity. It features push-in CAGE CLAMP spring connections for secure and straightforward wiring. This terminal strip is rated for a current of 32A according to IEC standards and is designed as a 1-deck/level unit. It has a net height of 6 kV and includes 3 feed-through poles (3P), with a control voltage of 3mm screw+nut. The color is black, and its dimensions are H22.3mm x W36mm x D35mm, making it suitable for 0.5mm2 to 4mm2 fine stranded or solid conductors, as well as #20AWG to #12AWG fine stranded or solid conductors. The terminal strip is made from polyamide (PA) 66 and halogen-free materials, ensuring compatibility with a wide range of installations. It also features 12-wires (6 push-in + 6 push-in) (6+6) for connectivity and has a rated diameter of 500 V according to IEC standards.
