862-694 WAGO Industrial Automation Components

862-694 on Powermatic Associates
WAGO

Part#:862-694

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

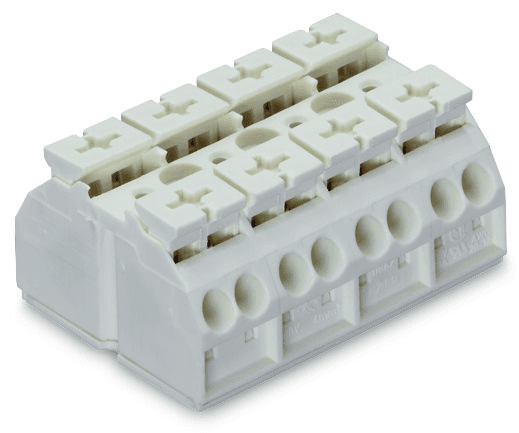

862-694 WAGO - 4-conductor chassis-mount terminal strip; without ground contact; 4-pole; 4 mm²; 4,00 mm²; white

Product Details

  • Weight
    27.3660072 g
  • Country Of Origin
    Germany
  • HTS Code
    85369010000
  • Actuator
    Push-button
  • Current
    32 amperes
  • Width
    1.89 inches, 48 millimeters
  • Country of Origin
    Germany
  • Conductor Size
    12 american wire gauge, 4 millimeters
  • Weight
    27.366 grams
  • Mounting Type
    Snap-in Foot At Pos. 1+4
  • Conductor Material
    Copper
  • Voltage
    500 volts
  • Flammability Class
    V0
  • Color
    White
  • Strip Length
    0.43 inches, 11 millimeters
  • Insulation Material
    Polyamide
  • Depth
    1.378 inches, 35 millimeters
  • Package Type
    Bag

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 862-694 on Powermatic Associates is $2.28. Order now.

About the product

Wago 862-694 is a feed-through/thru chassis-mount terminal strip designed for efficient wire connection and distribution. It features push-in CAGE CLAMP spring connections for easy installation and maintenance. This terminal strip is rated for a current of 32A according to IEC standards and is designed as a 1-deck/level unit. It supports a control voltage that allows for mounting on DIN rails or surfaces via an accessory snap-in foot. The terminal strip is suitable for 0.5mm2 to 4mm2 fine stranded or solid conductors and #20AWG to #12AWG fine stranded or solid conductors. It is constructed from polyamide (PA) 66 and halogen-free materials, ensuring durability and environmental safety. The dimensions are H22.3mm x W48mm x D35mm, accommodating 16 wires (8 push-in + 8 push-in) for a comprehensive wiring solution. The terminal strip is designed to withstand a voltage of up to 500V according to IEC standards, making it suitable for a wide range of applications.
