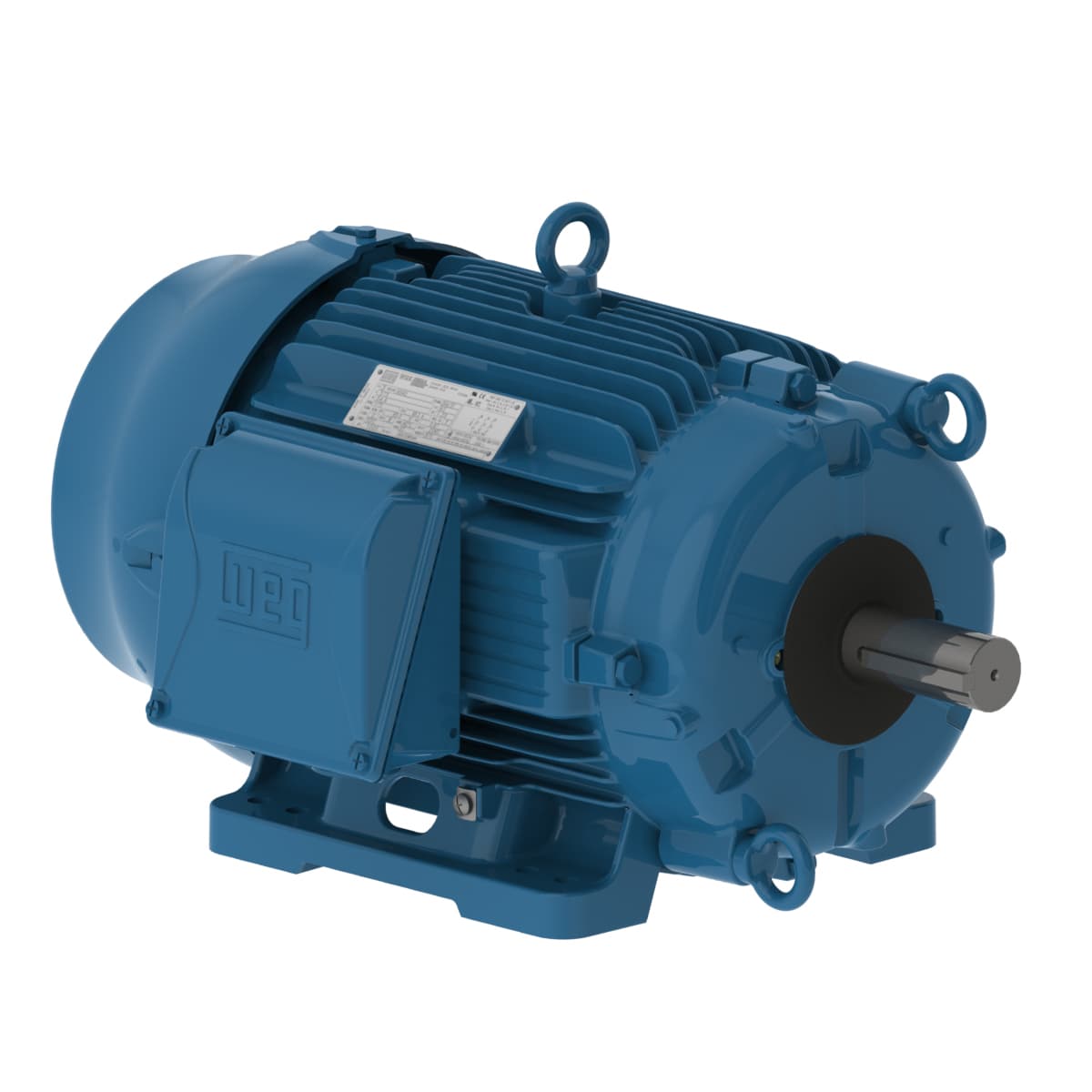

01518ET3HCT254TF1-W2 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 15 HP
- Rated Speed 1768 rpm
- Flange Type Without
- Frequency 60 Hz
- Insulation Class F
- Enclosure IC411 - TEFC
- Synchronous speed 1800 rpm
- Rated voltage 575 V
- Moment of inertia (J) 2.62 sq.ft.lb
- Temperature rise 80 K
- Standard NEMA MG-1
- LRC 6.4x(Code G)
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- L. R. Amperes 92.2 A
- Altitude 1000 m.a.s.l.
- Approx. weight³ 277 lb
- Rated current 14.4 A
- Design B
- Service factor 1.25
- Flange Without
- Number of Poles 4
- Rated torque 44.6 ft.lb
- Ambient temperature -20°C to +40°C
- Number of poles 4
- Slip 1.78 %
- Locked rotor time 55s (cold) 31s (hot)
- Noise level² 64.0 dB(A)
- Frame 254T
- Locked rotor torque 240 %
- Mounting F-1
- Output rating 15 HP
- Rated speed 1768 rpm
- Breakdown torque 260 %
- Starting Method Direct On Line
- Output 15 HP (11 kW)
- No load current 5.60 A
- Voltage 575 V
- Degree of Protection IP55
- Terminal box¹ Left position
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
