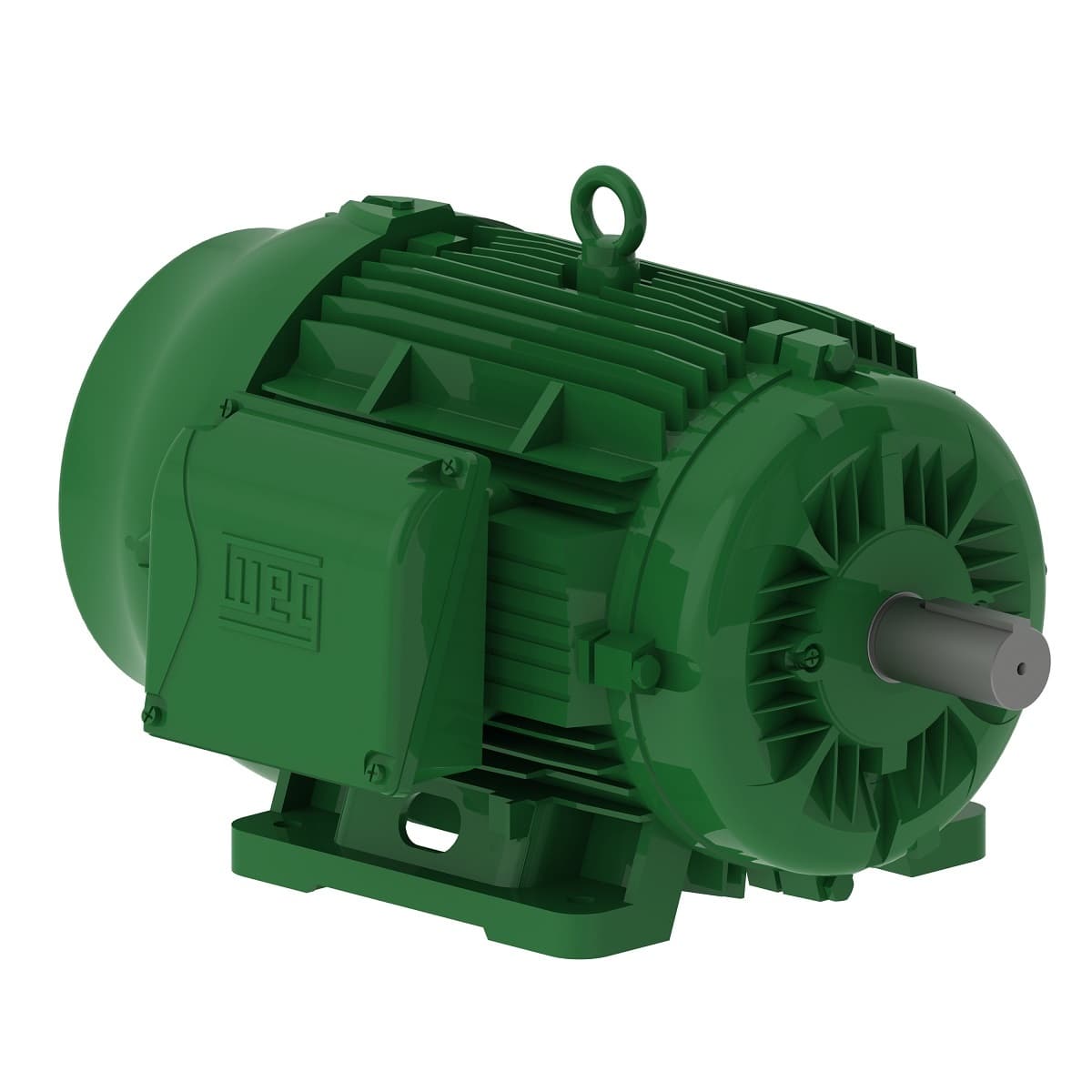

03036EG3E286TS-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 30 HP
- Rated Speed 3561 rpm
- Flange Type Without
- Rated current 67.0/33.5 A
- Service factor 1.25
- Enclosure IC411 - TEFC
- Output rating 30 HP
- Rated voltage 230/460 V
- Locked rotor time 34s (cold) 19s (hot)
- Ambient temperature -20°C to +40°C
- Flange Without
- L. R. Amperes 536/268 A
- Insulation Class F
- Approx. weight³ 438 lb
- Number of Poles 2
- Moment of inertia (J) 3.19 sq.ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Slip 1.08 %
- Design A
- Voltage 208-230/460//380 V
- LRC 8.0x(Code J)
- Temperature rise 80 K
- Noise level² 72.0 dB(A)
- Frame 284/6TS
- No load current 18.6/9.30 A
- Degree of Protection IP55
- Number of poles 2
- Rated speed 3561 rpm
- Duty Cycle Cont.(S1)
- Mounting F-1
- Terminal box¹ Left position
- Output 30 HP (22 kW)
- Rated torque 44.2 ft.lb
- Altitude 1000 m.a.s.l.
- Synchronous speed 3600 rpm
- Frequency 60 Hz
- Locked rotor torque 300 %
- Breakdown torque 310 %
- Rotation¹ Both (CW and CCW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
