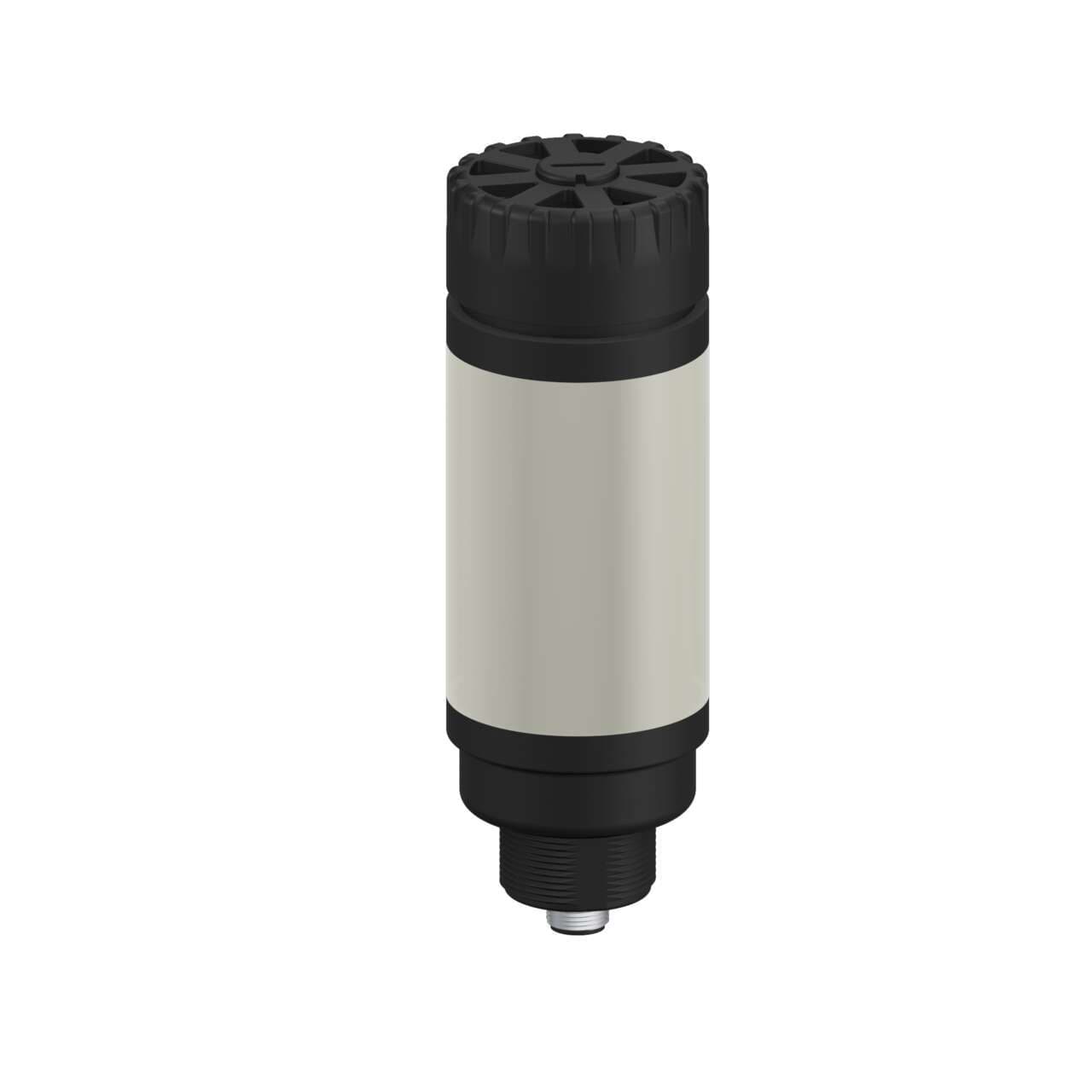

CL50GRYANQ Banner Signal Towers

Product Details

• Weight
  204.1164 g
• Country Of Origin
  CN
• Housing Style
  Base Mount - Tower
• Color Technology
  Standard LED
• Lumens Color 2
  38.0
• Max Current Color (mA)
  100
• Min Audible Intensity (db at 1m)
  62
• Feature: Audible
  Yes
• Product Size (mm)
  50
• Animation Option 2
  Solid On
• Number of Input Pins/Conductors
  5
• Max Op. Temperature (°C)
  50
• Modbus RTU
  No
• Indication
  Yes
• Connection
  Integral QD
• Animation Option 3
  Solid On
• Max Input Response Time (ms)
  10
• Environmental Rating
  IP50
• IO Link
  No
• Primary Housing Material
  ABS/Polycarbonate
Lumens Color 1
72.0
Supply Voltage
18-30 V dc
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Power
DC
Color Option 1
Green
Color Option 3
Yellow
Max Current - Audible Alarm (mA)
25
Min Op. Temperature (°C)
-20
Feature: Chemical Resistant
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Color 1 - Wavelength/Color Temp/Coordinates
525 nm
Color 3 - Wavelength/Color Temp/Coordinates
590 nm
Audible Operating Frequency (kHz)
2.7
Wireless
No
Power Source
DC
Color Option 2
Red
Physical Dimensions (LxWxH or DxH mm)
50.0 x 145.3
Primary Window Material
Polycarbonate Diffused
Mounting Thread
M30 x 1.5
Animation Option 1
Solid On
Color 2 - Wavelength/Color Temp/Coordinates
625 nm
Input Type
NPN
Feature: Hazardous Area
No
Number of Colors / Segments
3
Quick Disconnect Type
M12 (Euro)
Lumens Color 3
30.0
Max Audible Intensity (db at 1m)
92
Primary Housing Color
Black
Audible Alarm Type
Continuous
NEMA Type and UL Type Rating
NEMA and UL 13
Pro-Editor Compatible (Discrete)
No
Multi-Color Device
Single Color On
