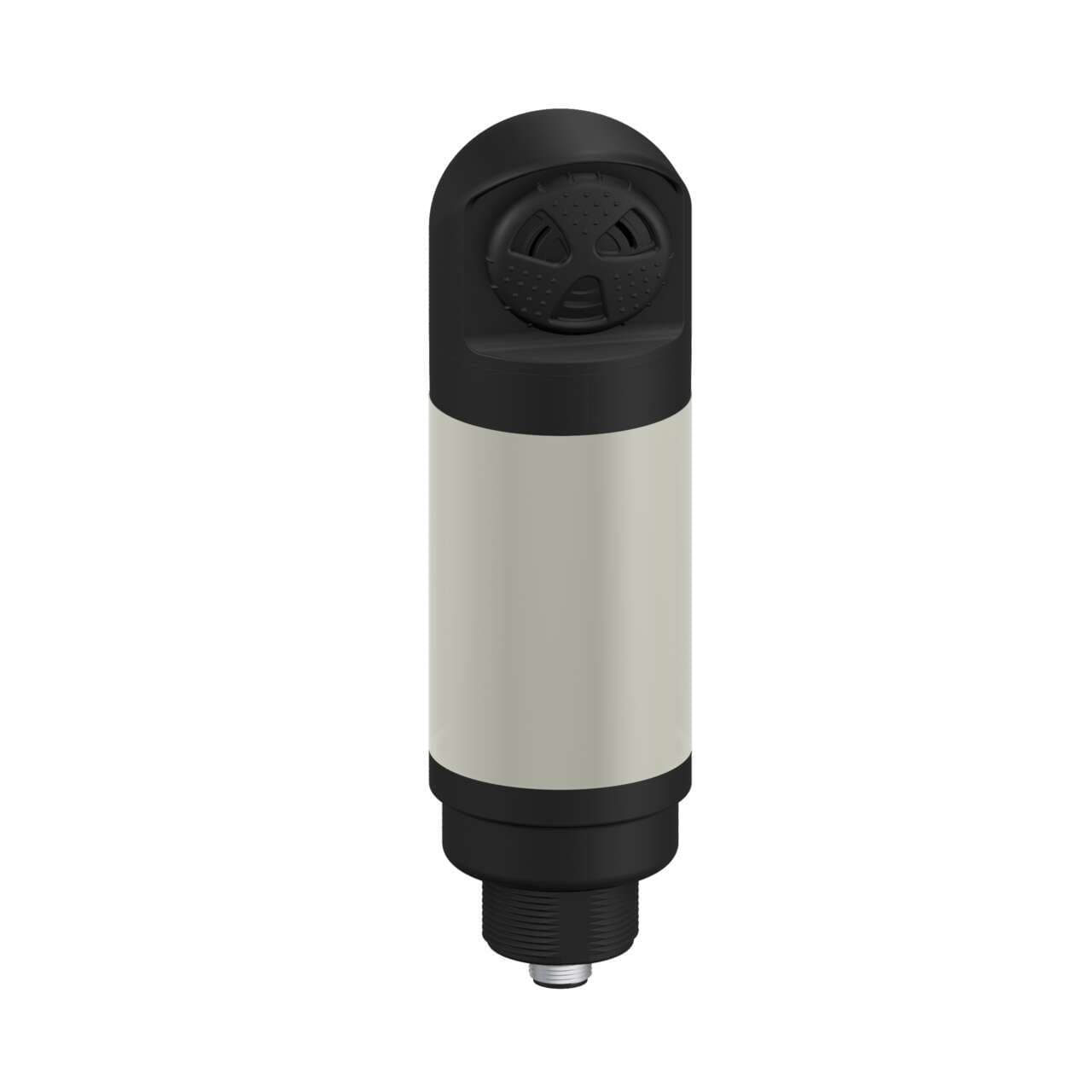

CL50RXXALSPQ Banner Signal Towers

Product Details

• Weight
  385.5532 g
• Country Of Origin
  MX
• Power
  DC
• Color Technology
  Standard LED
• Audible Alarm Type
  Continuous
• Feature: Hazardous Area
  No
• Modbus RTU
  No
• Indication
  Yes
• Supply Voltage
  18-30 V dc
• NEMA Type and UL Type Rating
  NEMA and UL 13
• Feature: Chemical Resistant
  No
• Color Input Control
  Individual (One wire/color, same number of colors as input wires)
• Connection
  Integral QD
• Min Audible Intensity (db at 1m)
  74
• Max Op. Temperature (°C)
  50
• Housing Style
  Base Mount - Tower
• Color 1 - Wavelength/Color Temp/Coordinates
  625 nm
• Max Current - Audible Alarm (mA)
  35
• Primary Housing Color
  Black
• Min Op. Temperature (°C)
  -20
Product Size (mm)
50
Animation Option 1
Solid On
Max Audible Intensity (db at 1m)
94
Environmental Rating
IP67
Pro-Editor Compatible (Discrete)
No
Power Source
DC
Quick Disconnect Type
M12 (Euro)
Physical Dimensions (LxWxH or DxH mm)
50.0 x 168.2
Primary Window Material
Polycarbonate Diffused
Number of Colors / Segments
1
Lumens Color 1
38.0
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
IO Link
No
Primary Housing Material
ABS/Polycarbonate
Number of Input Pins/Conductors
5
Input Type
PNP
Max Input Response Time (ms)
10
Wireless
No
Mounting Thread
M30 x 1.5
Color Option 1
Red
Max Current Color (mA)
100
Audible Operating Frequency (kHz)
2.9
Feature: Audible
Yes
