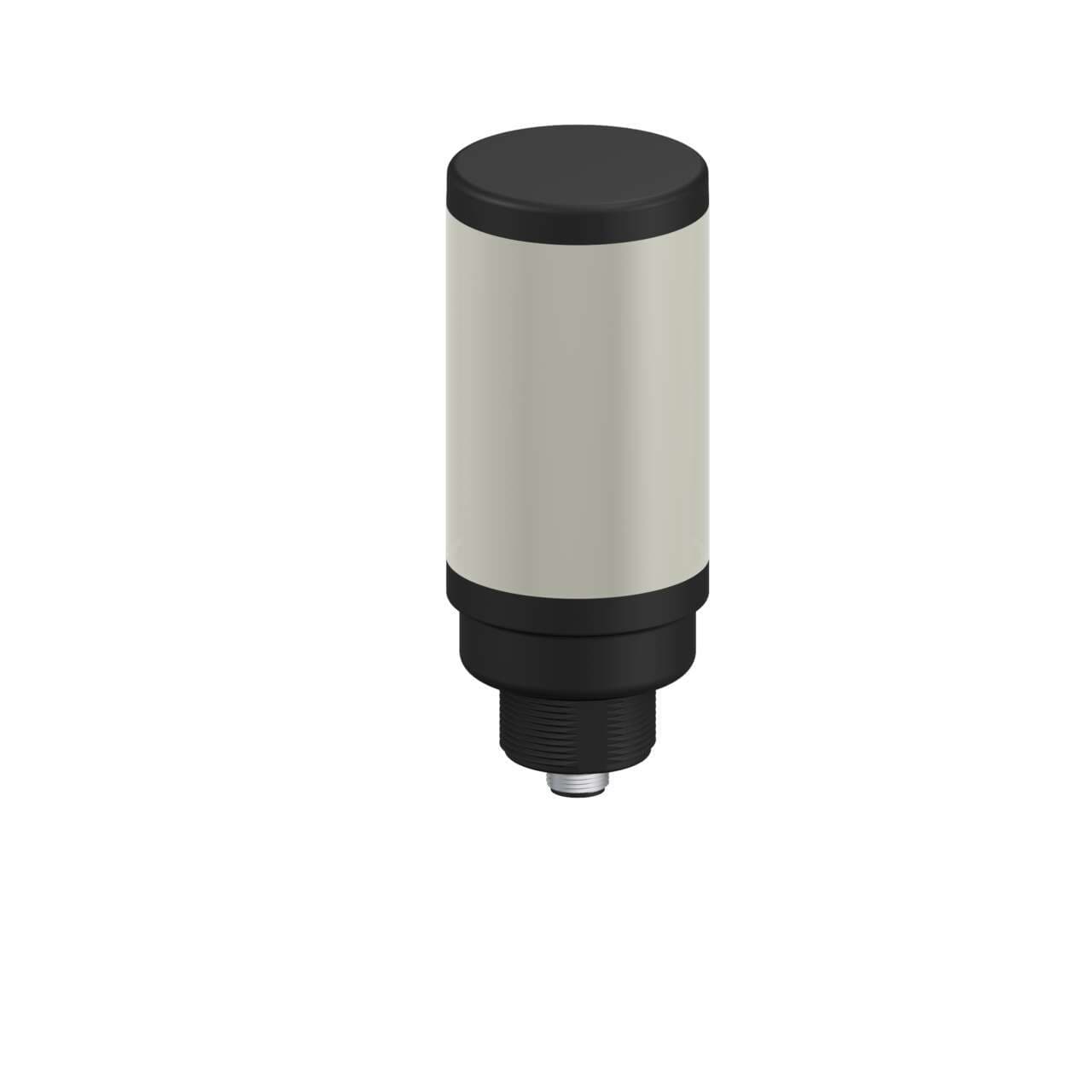

CL50WXXPQ Banner Signal Towers

Name: CL50WXXPQ
Brand: Banner
Price: 93 USD
Availability: BackOrder

Part#:CL50WXXPQ

Alt. Part#:16944

Manufacturer:Banner

Category:Signal Towers

Product Lifecycle:Active

Product description

Column Light: 1-Color Indicator; Voltage: 18-30 V dc; Environ. Rating: IP67; Input: PNP; Colors: White; 4-pin M12 Integral QD

Product Details

Weight
158.7572 g
Country Of Origin
MX
Pro-Editor Compatible (Discrete)
No
Wireless
No
Feature: Quick Disconnect
Yes
Feature: Chemical Resistant
No
Feature: Audible
No
Feature: Hazardous Area
No
IO Link
No
Modbus RTU
No
Min Op. Temperature (°C)
-40
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Max Op. Temperature (°C)
50
Primary Window Material
Polycarbonate Diffused
Physical Dimensions (LxWxH or DxH mm)
50.0 x 114.2
Primary Housing Color
Black
Supply Voltage
18-30 V dc
Environmental Rating
IP67
NEMA Type and UL Type Rating
NEMA and UL 13
Max Input Response Time (ms)
10

Input Type

PNP

Number of Input Pins/Conductors

Quick Disconnect Type

M12 (Euro)

Max Current Color (mA)

100

Lumens Color 1

85.0

Color Option 1

White

Color Technology

Standard LED

Animation Option 1

Solid On

Color 1 - Wavelength/Color Temp/Coordinates

5000K (Daylight)

Connection

Integral QD

Indication

Yes

Number of Colors / Segments

Color Input Control

Individual (One wire/color, same number of colors as input wires)

Product Size (mm)

Mounting Thread

M30 x 1.5

Housing Style

Base Mount - Tower

Primary Housing Material

ABS/Polycarbonate

Power

Power Source

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of CL50WXXPQ on Powermatic Associates is $93.00. Order now.

About the product

Banner Engineering CL50WXXPQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -40°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates a single-tier, white LED illumination, supported by 1 x digital input (18-30Vdc; PNP) for color control. The CL50WXXPQ is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2". The housing is black.

CL50WXXPQ Related Documents

145315.pdf

$93.00

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$93.00

$93.00 each

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us
