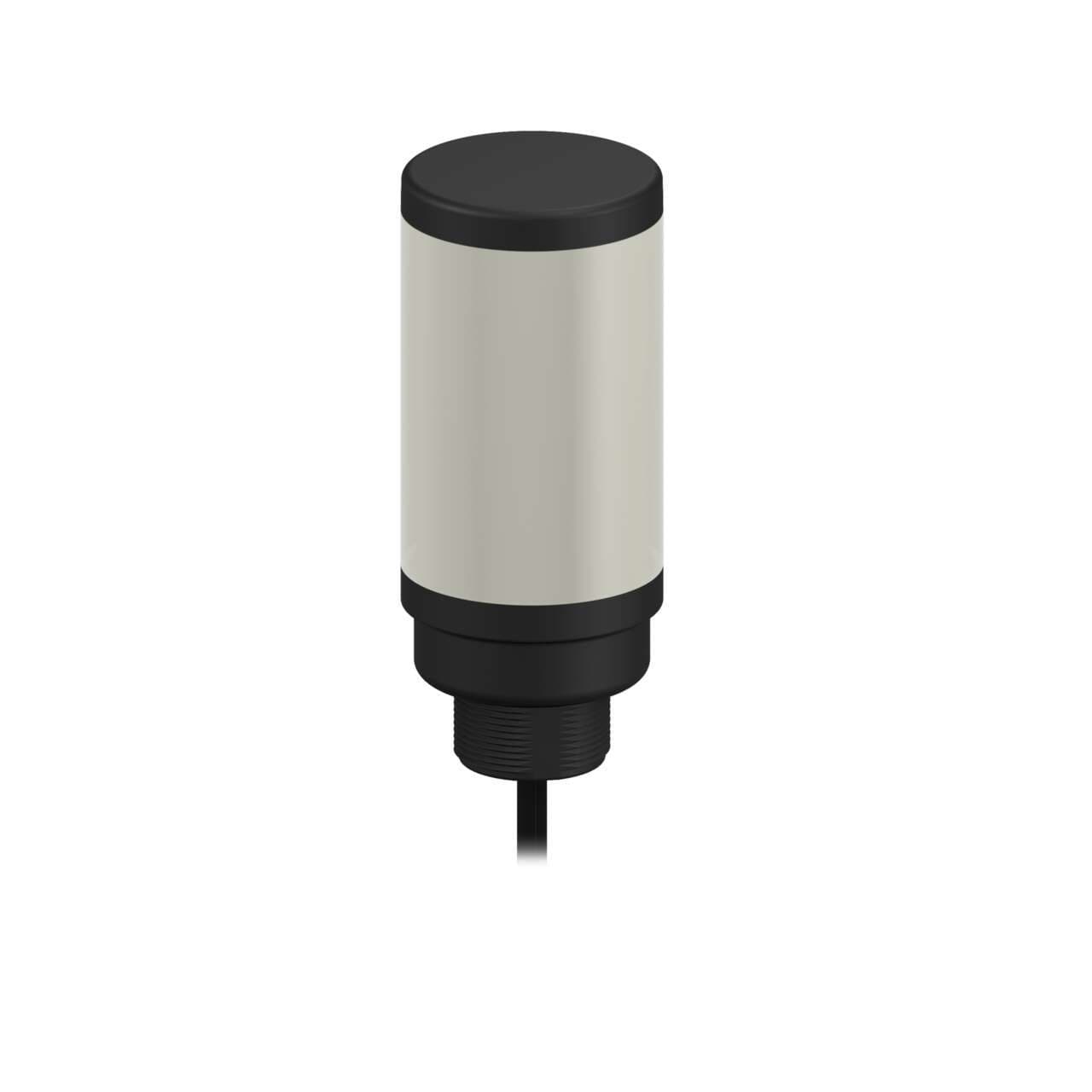

CL50XRYN Banner Signal Towers

Product Details

• Weight
  255.825888 g
• Country Of Origin
  MX
• Power Source
  DC
• Color Option 2
  Yellow
• Max Input Response Time (ms)
  10
• Feature: Hazardous Area
  No
• Indication
  Yes
• Animation Option 1
  Solid On
• Supply Voltage
  18-30 V dc
• Primary Window Material
  Polycarbonate Diffused
• Mounting Thread
  M30 x 1.5
• Color 1 - Wavelength/Color Temp/Coordinates
  625 nm
• Input Type
  NPN
• Primary Housing Color
  Black
• Number of Colors / Segments
  2
• Color Option 1
  Red
• Lumens Color 2
  30.0
• Feature: Audible
  No
• Feature: Quick Disconnect
  No
• Cable Length (m)
  2
Connection
Cable
Physical Dimensions (LxWxH or DxH mm)
50.0 x 114.2
Multi-Color Device
Single Color On
Primary Housing Material
ABS/Polycarbonate
Lumens Color 1
38.0
Environmental Rating
IP67
Feature: Chemical Resistant
No
Power
DC
Color Technology
Standard LED
Max Current Color (mA)
100
Min Op. Temperature (°C)
-40
IO Link
No
Number of Input Pins/Conductors
4
Max Op. Temperature (°C)
50
Wireless
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Animation Option 2
Solid On
Max Op. Relative Humidity Non-Condensing (%)
95% @ 50°C
Modbus RTU
No
Housing Style
Base Mount - Tower
Product Size (mm)
50
Color 2 - Wavelength/Color Temp/Coordinates
590 nm
NEMA Type and UL Type Rating
NEMA and UL 13
Pro-Editor Compatible (Discrete)
No
