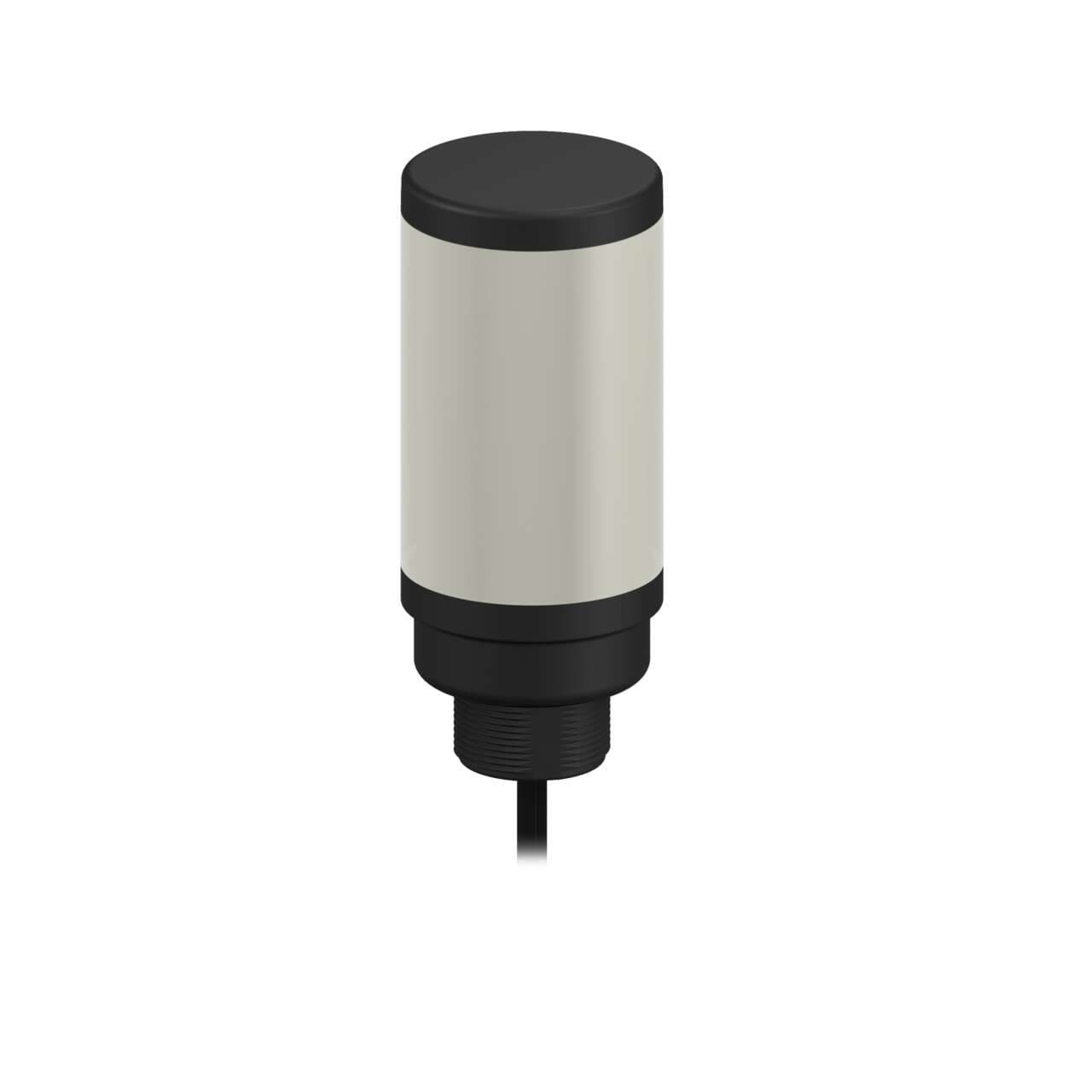

CL50YXYRPQP Banner Signal Towers

Product Details

• Weight
  181.4368 g
• Country Of Origin
  US
• Number of Colors / Segments
  3
• Color Option 1
  Yellow
• Max Current Color (mA)
  100
• Max Op. Temperature (°C)
  50
• Primary Housing Material
  ABS/Polycarbonate
• Product Size (mm)
  50
• Color 2 - Wavelength/Color Temp/Coordinates
  590 nm
• Color 3 - Wavelength/Color Temp/Coordinates
  625 nm
• Max Op. Relative Humidity Non-Condensing (%)
  95% @ 50°C
• Indication
  Yes
• Color Technology
  Standard LED
• Lumens Color 2
  30.0
• Max Input Response Time (ms)
  10
• Primary Window Material
  Polycarbonate Diffused
• Cable Length (m)
  2
• Connection
  Pigtail QD
• Color Option 3
  Red
• Input Type
  PNP
Primary Housing Color
Black
Modbus RTU
No
Power
DC
Color 1 - Wavelength/Color Temp/Coordinates
590 nm
Animation Option 3
Solid On
Physical Dimensions (LxWxH or DxH mm)
50.0 x 114.2
Feature: Chemical Resistant
No
Color Input Control
Individual (One wire/color, same number of colors as input wires)
Lumens Color 1
30.0
Number of Input Pins/Conductors
5
Min Op. Temperature (°C)
-40
IO Link
No
Housing Style
Base Mount - Tower
Quick Disconnect Type
M12 (Euro)
Supply Voltage
18-30 V dc
Feature: Hazardous Area
No
Pro-Editor Compatible (Discrete)
No
Mounting Thread
M30 x 1.5
Color Option 2
Yellow
Lumens Color 3
38.0
NEMA Type and UL Type Rating
NEMA and UL 13
Multi-Color Device
Single Color On
Power Source
DC
Animation Option 1
Solid On
Animation Option 2
Solid On
Environmental Rating
IP67
Feature: Audible
No
Feature: Quick Disconnect
Yes
Wireless
No
