DEE2R-83RS Banner Cordsets
Product Details
- Weight 58.96696 g
- Country Of Origin TW
- Cable Jacket Material PVC
- Primary Coupling Method M12 Single Key
- Secondary Number of Conductors 8
- Trunk Length (m) No Trunk
- Minimum Temp. (°C) -40
- Secondary Coupling Method M12 Single Key
- Cordset Length (m) 1
- Voltage Rating (V) 60 V ac/75 V dc
- Primary AWG 22
- Shield/No Shield No Shield
- Coupling Material/Color Nickel Plated Brass
- Secondary AWG 22
- Cable Jacket Color Yellow
- Current Rating (A) 2.0
- Secondary Connector Type EURO
- Number of Connectors 2
- Number of Contacts 8
- Primary Gender Female
- Secondary Gender Male
- Outside Cable Diameter (mm) 6
- IP Rating IP68
- Feature: Hazardous Area No
- Primary Connector Type EURO
- Secondary Orientation Right Angle
- Primary Orientation Straight
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Primary Number of Conductors 8
- Oil/Grease Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DEE2R-83RS on Powermatic Associates is $44.00. Order now.
About the product

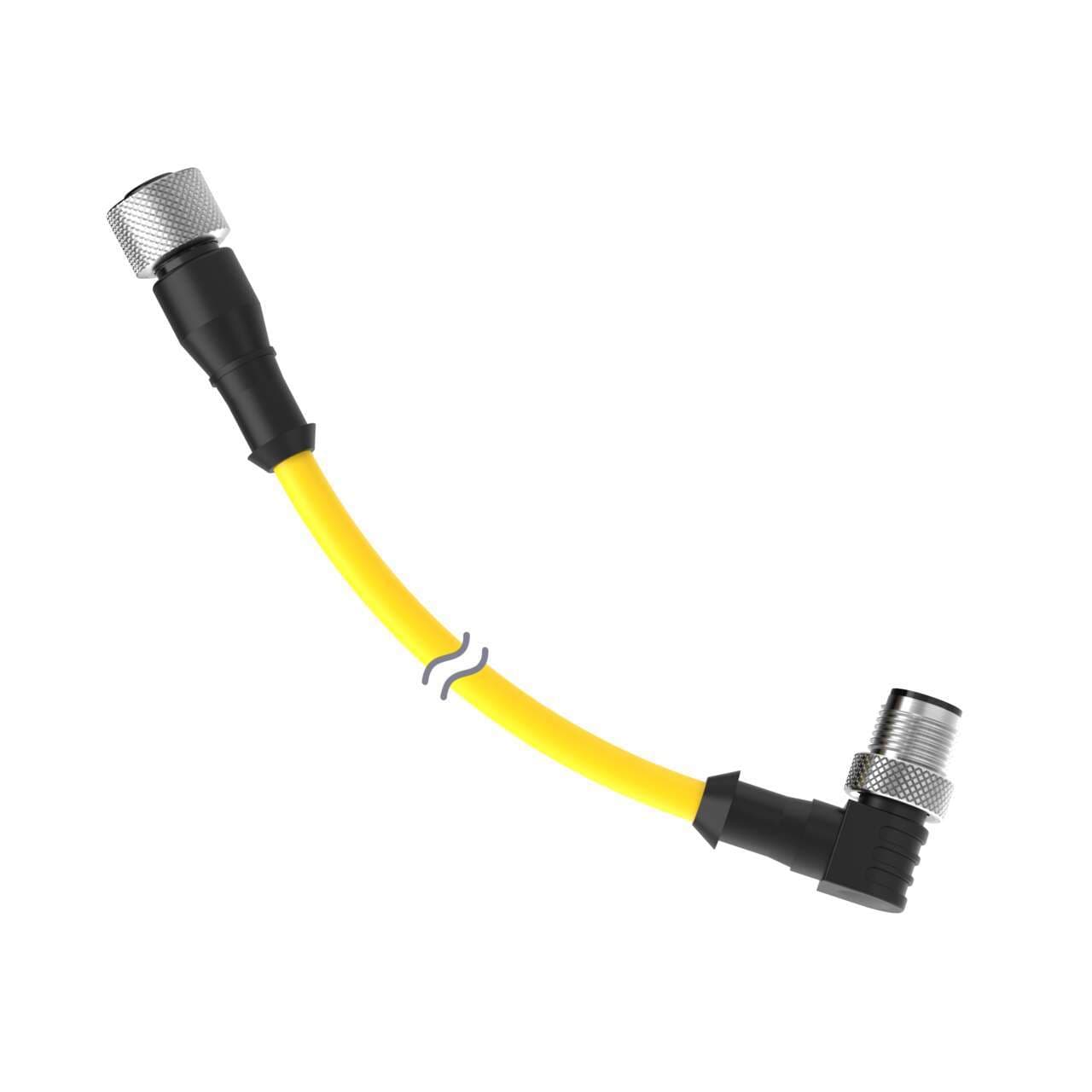

Banner Engineering DEE2R-83RS is a pre-assembled cable/cordset designed with a double-ended configuration, featuring an 8-pin Euro-style M12 female connector on one end and an 8-pin Euro-style M12 male connector on the other. The cable is constructed with a chrome-plated brass coupling nut and PVC sheathing in yellow, ensuring durability and visibility. It has a diameter of 6mm and a length of 3.3ft (1m). This part is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68, making it suitable for demanding environments. The DEE2R-83RS is rated for a voltage of 60Vac and 75Vdc, accommodating a variety of automation applications.
