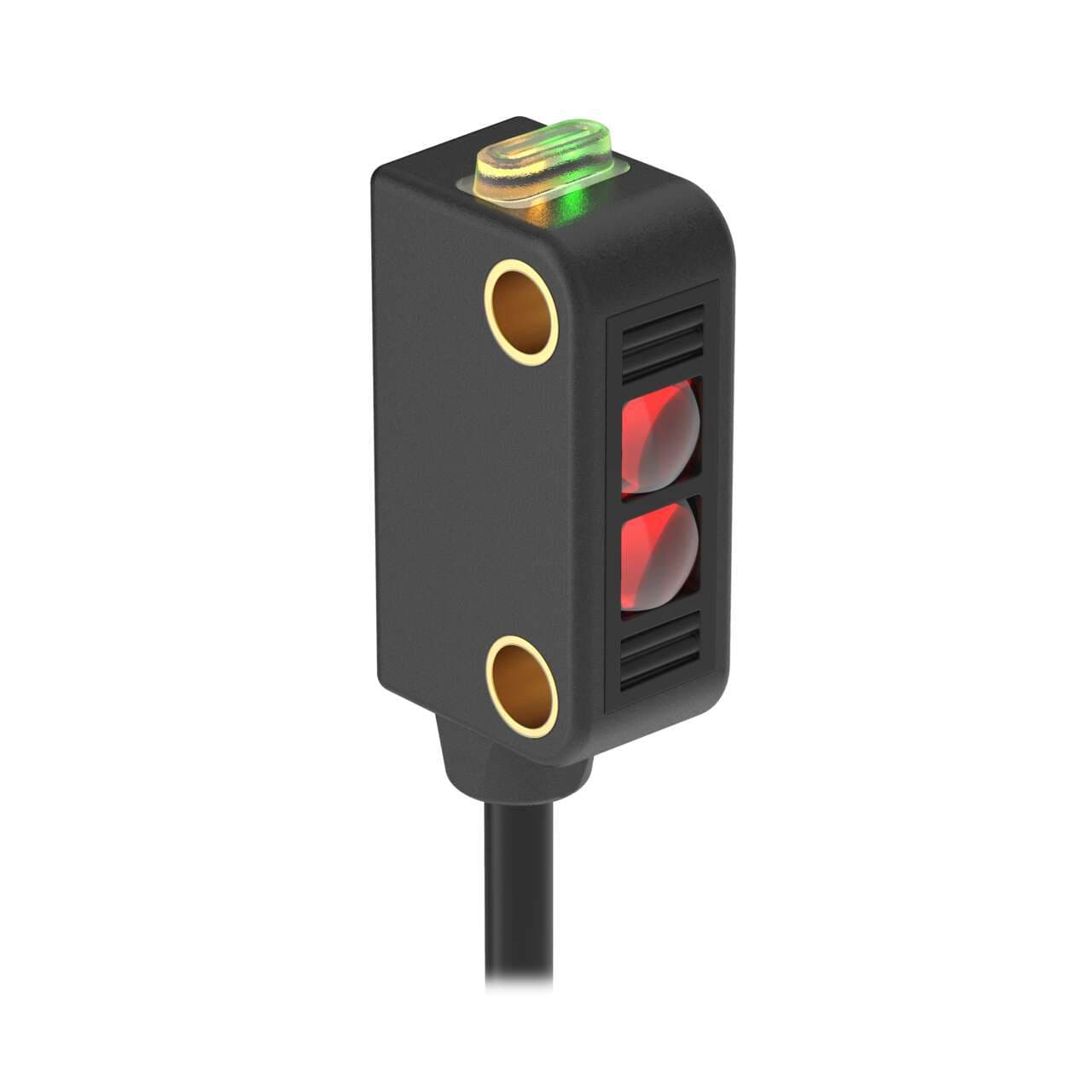

DQ126EQ3 Banner Proximity Sensors
Part#:DQ126EQ3
Alt. Part#:808069
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Emitter; Range: 3 m; Input 10-30 V dc; Output: Not Applicable; 3-pin M8 150 mm (6 in) Pigtail QD;Black Housing
Product Details
- Weight 13.60776 g
- Country Of Origin CN
- Sensing Mode (Detailed) Emitter
- Output response time (ms) 1.3 ON/0.7 OFF
- Primary Housing Material Polyamide
- Lens Material Polycarbonate
- Max Sensing Distance (mm) 3000
- Min Op. Temp. (°C) -20
- Adjustments N/A
- Sensing Beam Visible Red LED
- Power Supply/Supply Voltage 10-30 V dc
- Barrel Diameter (mm) N/A
- Power DC
- Connection Pigtail QD
- Special Feature: Remote Teach No
- Housing Style Rectangular
- Max Op. Temp. (°C) 55
- Number of Pins 2
- IP Rating IP67
- Feature: Hazardous Area No
- Cable Length (m) 0.15
- Quick Disconnect Type M8 (Pico)
- Delay at Power-up (ms) 120
- Sensing Mode (General) Opposed
- Outputs N/A
- Special Feature: Water Detection No
- Feature: Timing (Hold/Delay) No
- Special Feature: Intrinsically Safe No
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Repeatability (µs) 125
- Feature: Audible No
- Opposed Mode Emitter/Receiver Emitter
- Feature: Chemical Resistant No
- Feature: Encapsulated No
- IO Link No
- Sensing Beam Wavelength 645
- Indicator LEDs
- Operation N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ126EQ3 on Powermatic Associates is $63.00. Order now.
About the product
Banner Engineering DQ126EQ3 is a photo-electric sensor with a thermoplastic housing and a polycarbonate lens. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 1.3ms. Designed in a rectangular shape, it is part of the DQ12 series and utilizes a through-beam system, functioning as an emitter alone. The sensing distance reaches up to 3m. It features a pre-wired connection with a 6-inch pigtail terminated with a 3-pin Pico-style M8 connector. The supply voltage required for operation ranges from 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. The housing is black.
