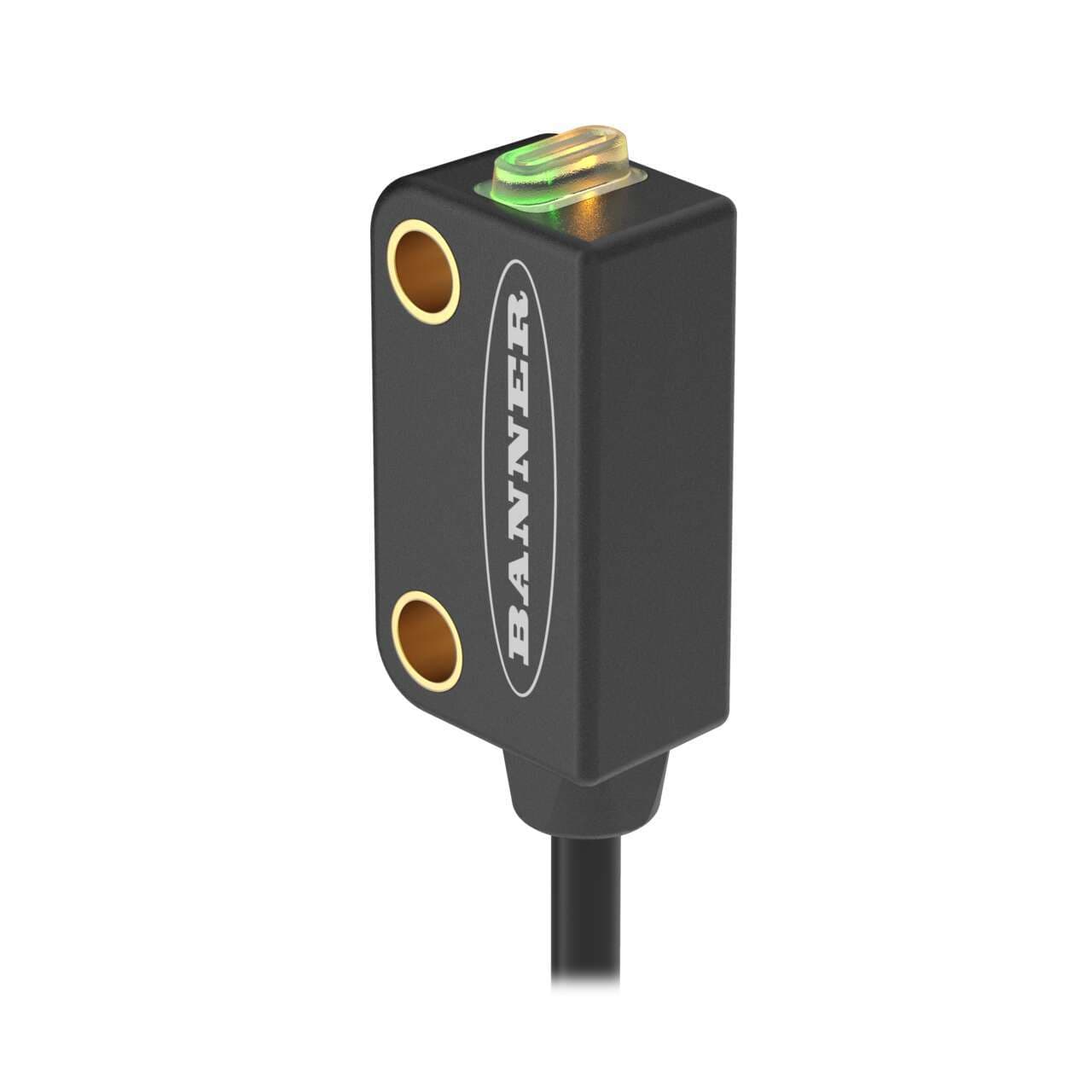

DQ12AP6FF50Q3 Banner Proximity Sensors
Part#:DQ12AP6FF50Q3
Alt. Part#:808402
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Fixed-Field; Range: 50 mm; Input: 10-30 V dc; Output: LO; 1 PNP; 3-pin M8 150 mm (6 in) Pigtail QD;Black Housing
Product Details
- Weight 27.21552 g
- Country Of Origin CN
- Outputs PNP
- Primary Housing Material Polyamide
- IP Rating IP67
- Feature: Encapsulated No
- Small Visible Spot LED
- Connection Pigtail QD
- Special Feature: Intrinsically Safe No
- Adjustments N/A
- IO Link No
- Cable Length (m) 0.15
- Output response time (ms) 0.85 ON/OFF
- Max Op. Relative Humidity [%] 95% @ 50°C
- Housing Style Rectangular
- Quick Disconnect Type M8 (Pico)
- Special Feature: Remote Teach No
- Lens Material Polycarbonate
- Feature: Chemical Resistant No
- Sensing Mode (General) Proximity
- Power Supply/Supply Voltage 10-30 V dc
- Sensing Beam Wavelength 645
- Barrel Diameter (mm) N/A
- DeviceNet No
- Power DC
- Max Op. Temp. (°C) 55
- Number of Pins 3
- Feature: Hazardous Area No
- Max Sensing Distance (mm) 50
- Sensing Beam Visible Red LED
- Repeatability (µs) 125
- Opposed Mode Emitter/Receiver N/A
- Input/Output Discrete
- Min Op. Temp. (°C) -20
- Special Feature: Water Detection No
- Indicator LEDs
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Operation Light Operate
- Delay at Power-up (ms) 120
- Feature: Timing (Hold/Delay) No
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ12AP6FF50Q3 on Powermatic Associates is $109.00. Order now.
About the product
Banner Engineering DQ12AP6FF50Q3 is a fixed-field photo-electric sensor designed with a thermoplastic housing and a polycarbonate lens. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 0.85ms. It features a single digital output (PNP transistor) and operates in a Light-ON mode. The DQ12AP6FF50Q3, part of the DQ12 series, is designed with a background suppression system and has a sensing distance of 50mm. It comes pre-wired with a 6" / 150mm pigtail terminated with a 4-pin Pico-style M8 connector. The sensor requires a supply voltage of 10Vdc-30Vdc, with 12Vdc / 24Vdc nominal, and is presented in a rectangular shape with a black housing.
