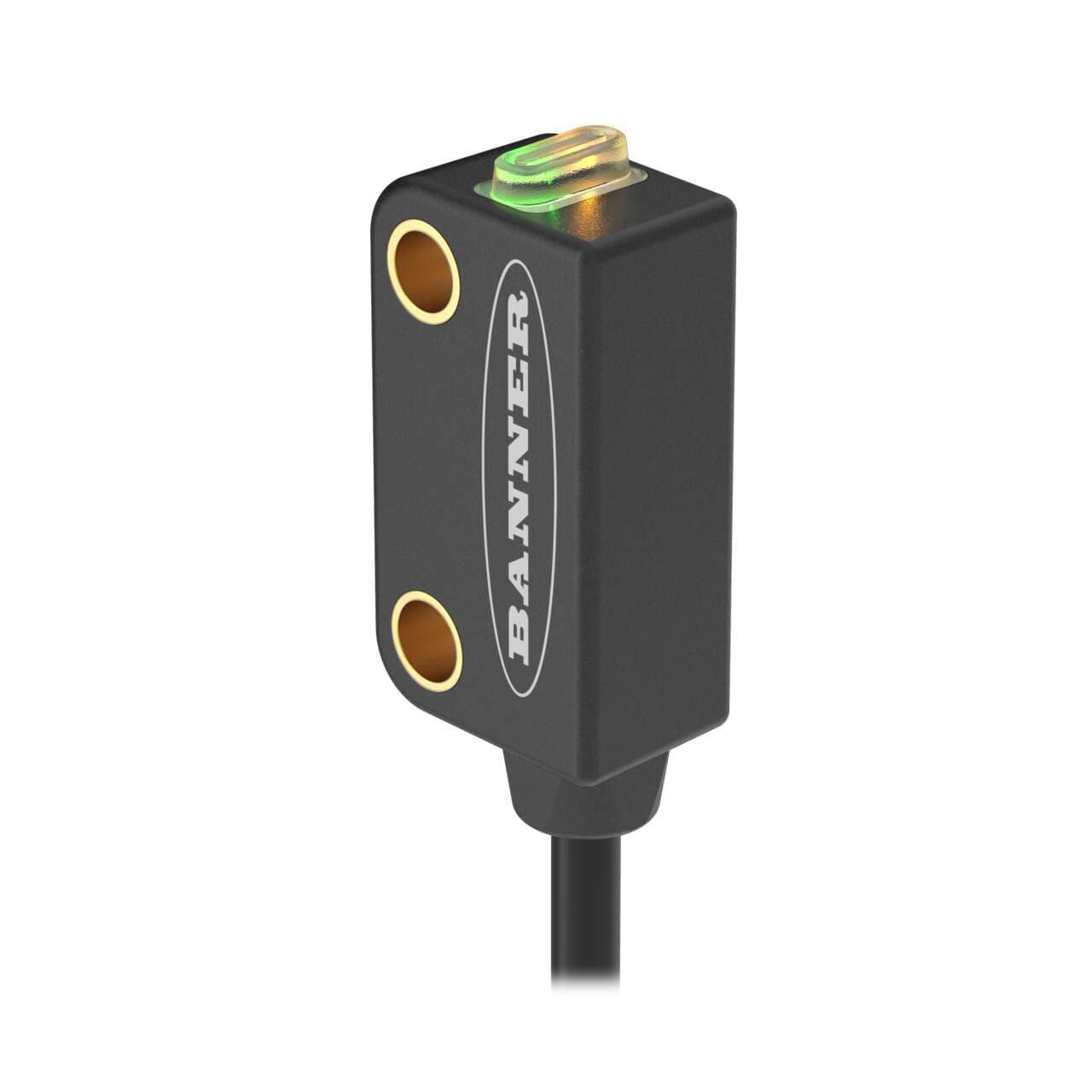

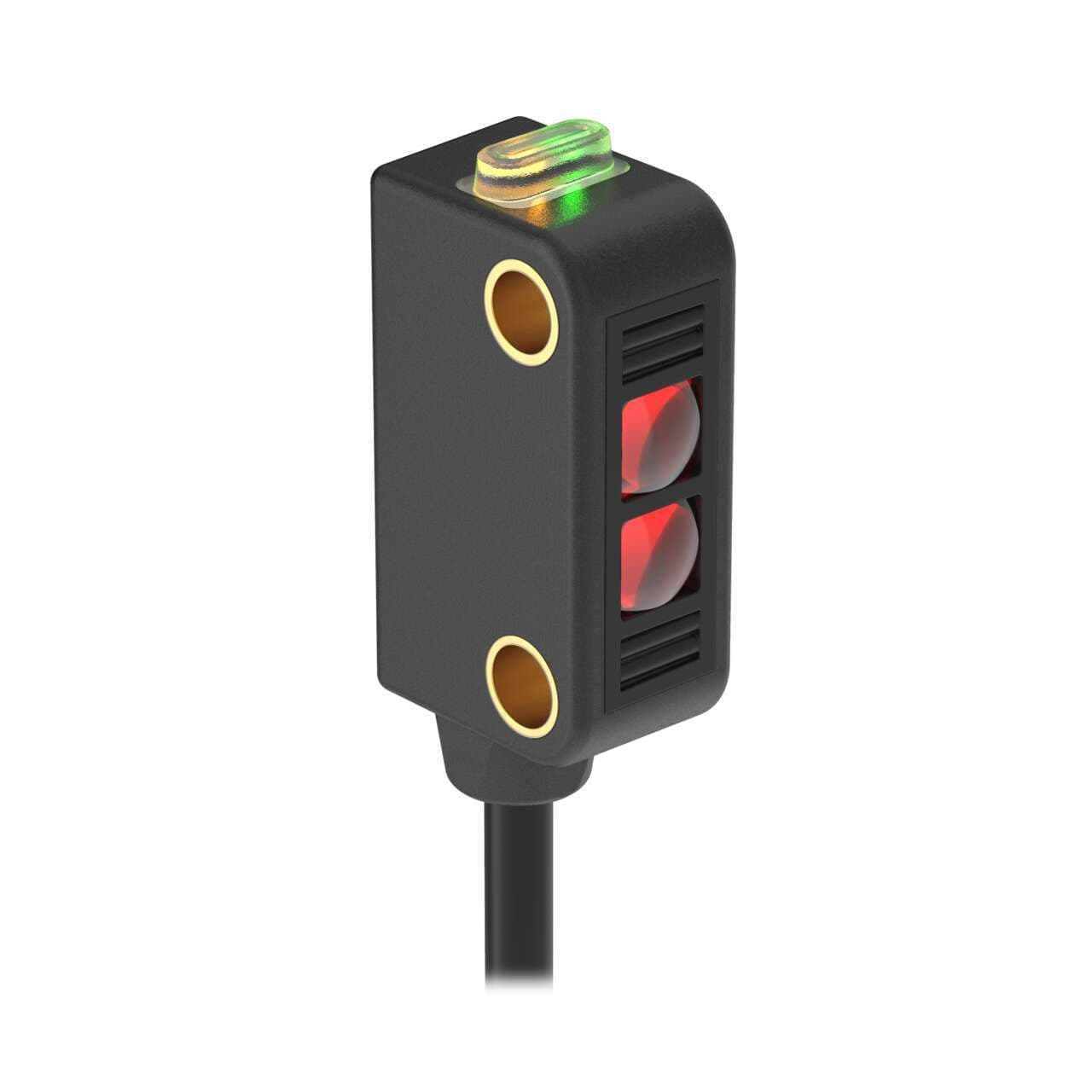

DQ126E Banner Proximity Sensors
Part#:DQ126E
Alt. Part#:85772
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Emitter; Range: 3 m; Input 10-30 V dc; Output: Not Applicable; 2 m (6.5 ft) Cable; Black Housing
Product Details
- Weight 27.21552 g
- Country Of Origin CN
- Primary brand Banner Engineering
- Design through-beam system / opposed mode
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -20...+55 °C
- Product series / family name WORLD-BEAM series
- Functions Photo-electric emitter green LED (power ON) yellow LED (signal)
- Shape Rectangular
- Color Black housing
- Sub-range name DQ12 series
- Light Color Visible red
- Response time 1.3ms / 0.0013 s
- Wavelength 645 nm
- Material thermoplastic housing Polycarbonate lns.
- Main function Sensor (Photo-electric)
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Degree of protection IP67
- Order code / Manufacturer SKU 85772
- Compliant with standard(s) cURus CE
- Sensing Mode (Detailed) Emitter
- Sensing Beam Wavelength 645
- Barrel Diameter (mm) N/A
- Primary Housing Material Polyamide
- Cable Length (m) 2
- Delay at Power-up (ms) 120
- Opposed Mode Emitter/Receiver Emitter
- Max Sensing Distance (mm) 3000
- Sensing Mode (General) Opposed
- Special Feature: Remote Teach No
- Feature: Timing (Hold/Delay) No
- Outputs N/A
- Power DC
- Repeatability (µs) 125
- Feature: Encapsulated No
- Connection Cable
- Operation N/A
- IP Rating IP67
- Feature: Hazardous Area No
- Housing Style Rectangular
- Output response time (ms) 1.3 ON/0.7 OFF
- Max Op. Relative Humidity [%] 95% @ 50°C
- DeviceNet No
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- Indicator LEDs
- Feature: Chemical Resistant No
- Quick Disconnect Type No QD
- Special Feature: Water Detection No
- Lens Material Polycarbonate
- IO Link No
- Min Op. Temp. (°C) -20
- Max Op. Temp. (°C) 55
- Adjustments N/A
- Number of Pins 2
- Feature: Audible No
- Sensing Beam Visible Red LED
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ126E on Powermatic Associates is $57.00. Order now.
About the product
Banner Engineering DQ126E is a photo-electric sensor characterized by its thermoplastic housing and polycarbonate lens. Designed for operation in ambient air temperatures ranging from -20 to +55°C, it offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 1.3ms. Its rectangular shape and through-beam system design allow for a sensing distance of up to 3 meters. As part of the DQ12 series, this emitter alone functions within a supply voltage range of 10Vdc to 30Vdc, with nominal values at 12Vdc and 24Vdc. It comes pre-wired with a 6.5ft / 2m cable featuring bare end flying leads for connection, and its housing is black.
