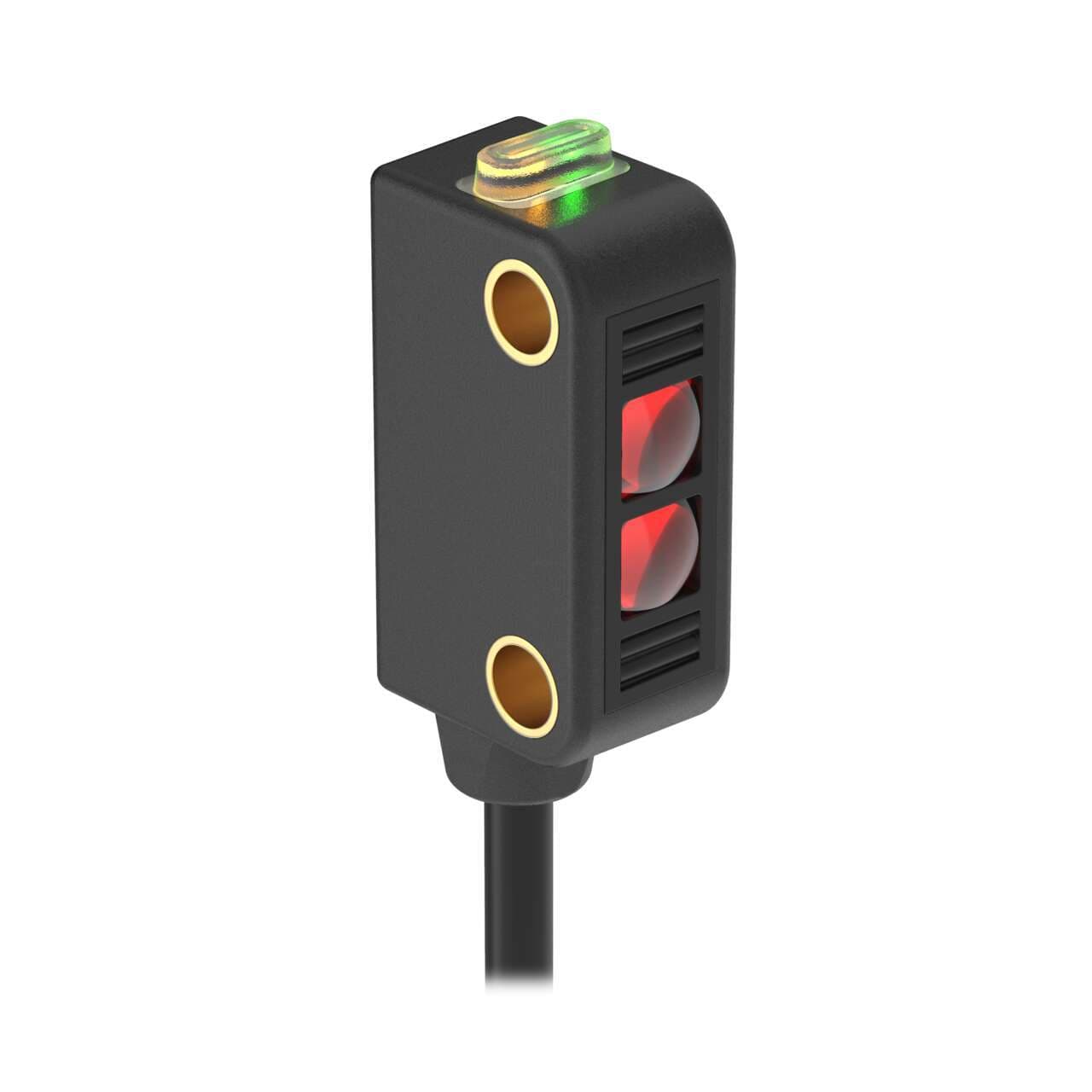

DQ126EQ5 Banner Proximity Sensors
Part#:DQ126EQ5
Alt. Part#:85830
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Emitter; Range: 3 m; Input 10-30 V dc; Output: No Outputs; M124-pin 150 mm (6 in) Pigtail QD;Black Housing
Product Details
- Weight 18.14368 g
- Country Of Origin CN
- Sensing Mode (General) Opposed
- Max Op. Temp. (°C) 55
- Adjustments N/A
- DeviceNet No
- Housing Style Rectangular
- Special Feature: Intrinsically Safe No
- IO Link No
- Special Feature: Water Detection No
- Indicator LEDs
- Power DC
- Sensing Mode (Detailed) Emitter
- Min Op. Temp. (°C) -20
- Repeatability (µs) 125
- Feature: Timing (Hold/Delay) No
- Primary Housing Material Polyamide
- Output response time (ms) 1.3 ON/0.7 OFF
- Feature: Hazardous Area No
- Operation N/A
- Cable Length (m) 0.15
- Feature: Audible No
- Max Sensing Distance (mm) 3000
- Connection Pigtail QD
- IP Rating IP67
- Feature: Chemical Resistant No
- Outputs N/A
- Special Feature: Remote Teach No
- Lens Material Polycarbonate
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 95% @ 50°C
- Number of Pins 4
- Delay at Power-up (ms) 120
- Sensing Beam Wavelength 645
- Opposed Mode Emitter/Receiver Emitter
- Sensing Beam Visible Red LED
- Feature: Encapsulated No
- Quick Disconnect Type M12 (Euro)
- Barrel Diameter (mm) N/A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ126EQ5 on Powermatic Associates is $81.00. Order now.
About the product
Banner Engineering DQ126EQ5 is a photo-electric sensor characterized by its thermoplastic housing and polycarbonate lens. Designed for operation in ambient air temperatures ranging from -20 to +55°C, it offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and has a response time of 1.3ms. Its rectangular shape and through-beam system design allow for a sensing distance of up to 3 meters. The DQ126EQ5, part of the DQ12 series, functions as an emitter alone in opposed mode setups. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Euro-style M12 connector, facilitating easy installation. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc, and features a black housing.
