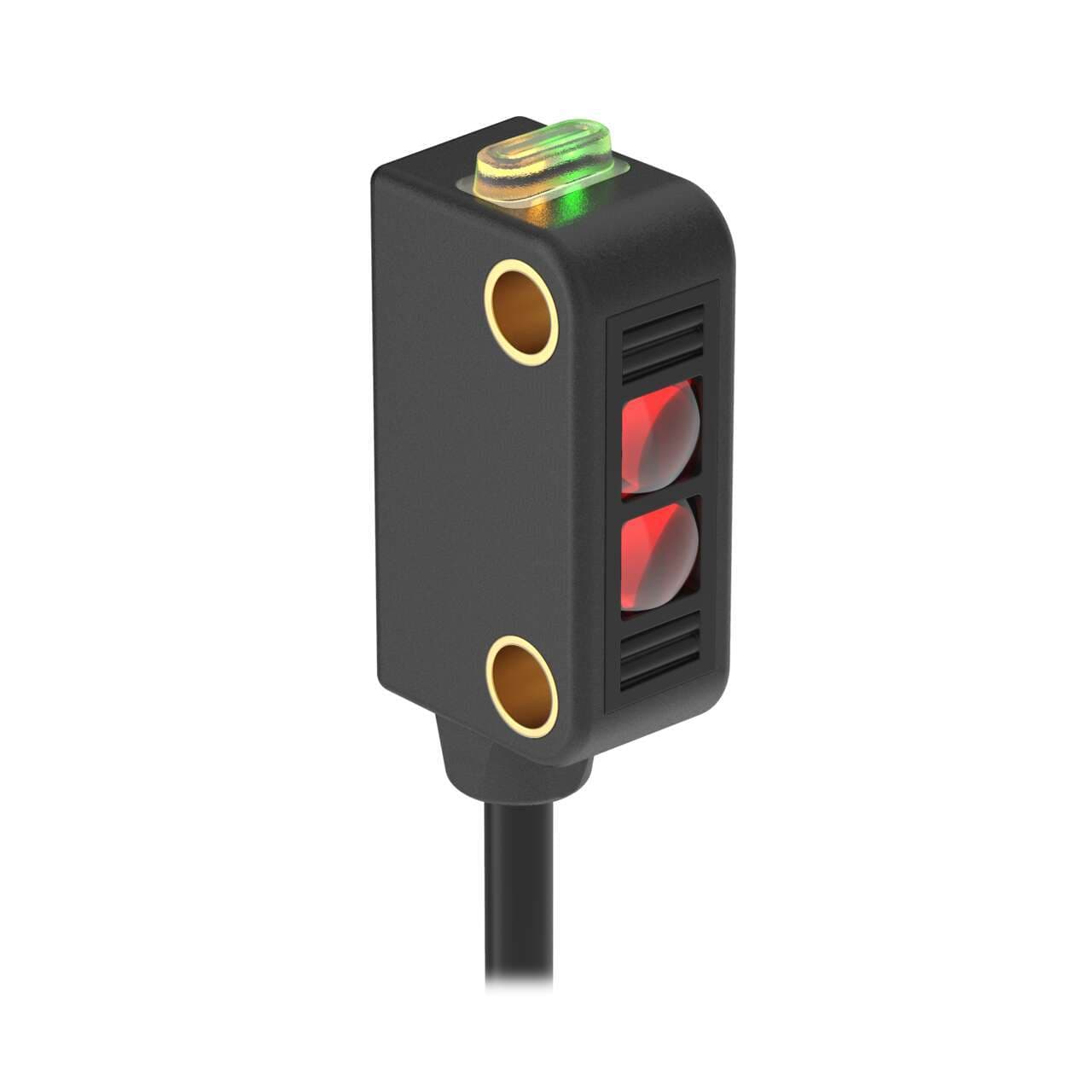

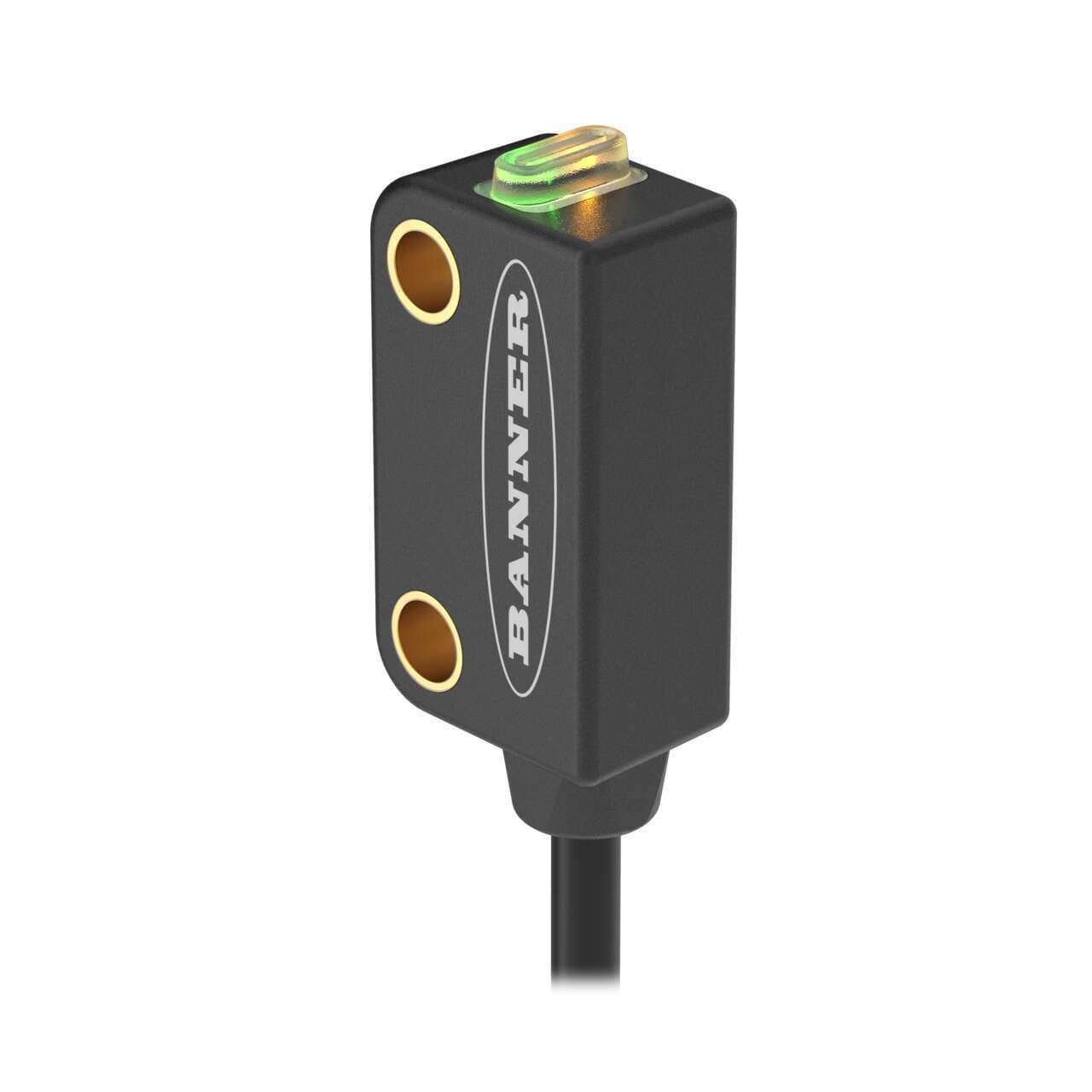

DQ12AP6RQ3 Banner Proximity Sensors
Part#:DQ12AP6RQ3
Alt. Part#:808074
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
WORLD-BEAM DQ12 Series: Receiver; Range: 3 m; Input: 10-30 V dc; Output: LO (Light Operate) PNP; 3-pin M8 150 mm (6 in) Pigtail QD;Black Housing
Product Details
- Weight 13.60776 g
- Country Of Origin CN
- Sensing Mode (Detailed) Receiver
- Operation Light Operate
- Feature: Hazardous Area No
- Power Supply/Supply Voltage 10-30 V dc
- Max Op. Relative Humidity [%] 95% @ 50°C
- Adjustments N/A
- Feature: Chemical Resistant No
- Max Op. Temp. (°C) 55
- Sensing Beam Wavelength 645
- Feature: Timing (Hold/Delay) No
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Feature: Encapsulated No
- Sensing Beam Visible Red LED
- Outputs PNP
- Delay at Power-up (ms) 120
- Indicator LEDs
- DeviceNet No
- Input/Output Discrete
- Connection Pigtail QD
- Repeatability (µs) 125
- Barrel Diameter (mm) N/A
- IO Link No
- Power DC
- Cable Length (m) 0.15
- Housing Style Rectangular
- Sensing Mode (General) Opposed
- Min Op. Temp. (°C) -20
- Output response time (ms) 1.3 ON/0.7 OFF
- IP Rating IP67
- Opposed Mode Emitter/Receiver Receiver
- Max Sensing Distance (mm) 3000
- Quick Disconnect Type M8 (Pico)
- Number of Pins 3
- Feature: Audible No
- Primary Housing Material Polyamide
- Special Feature: Water Detection No
- Special Feature: Remote Teach No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of DQ12AP6RQ3 on Powermatic Associates is $83.00. Order now.
About the product
Banner Engineering DQ12AP6RQ3 is a photo-electric sensor characterized by its thermoplastic housing and polycarbonate lens. It operates within an ambient air temperature range of -20 to +55°C and offers a degree of protection rated at IP67. This sensor emits visible red light with a wavelength of 645 nm and features a response time of 1.3ms for turning on and 0.7ms for turning off. It includes one digital output utilizing a PNP transistor and operates in a Light-ON mode. The DQ12AP6RQ3, part of the DQ12 series, is designed as a through-beam system or opposed mode sensor with a rectangular shape and a sensing distance of up to 3 meters. It comes pre-wired with a 6-inch (150mm) pigtail terminated with a 4-pin Pico-style M8 connector. The sensor requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values, and is presented in a black housing.
