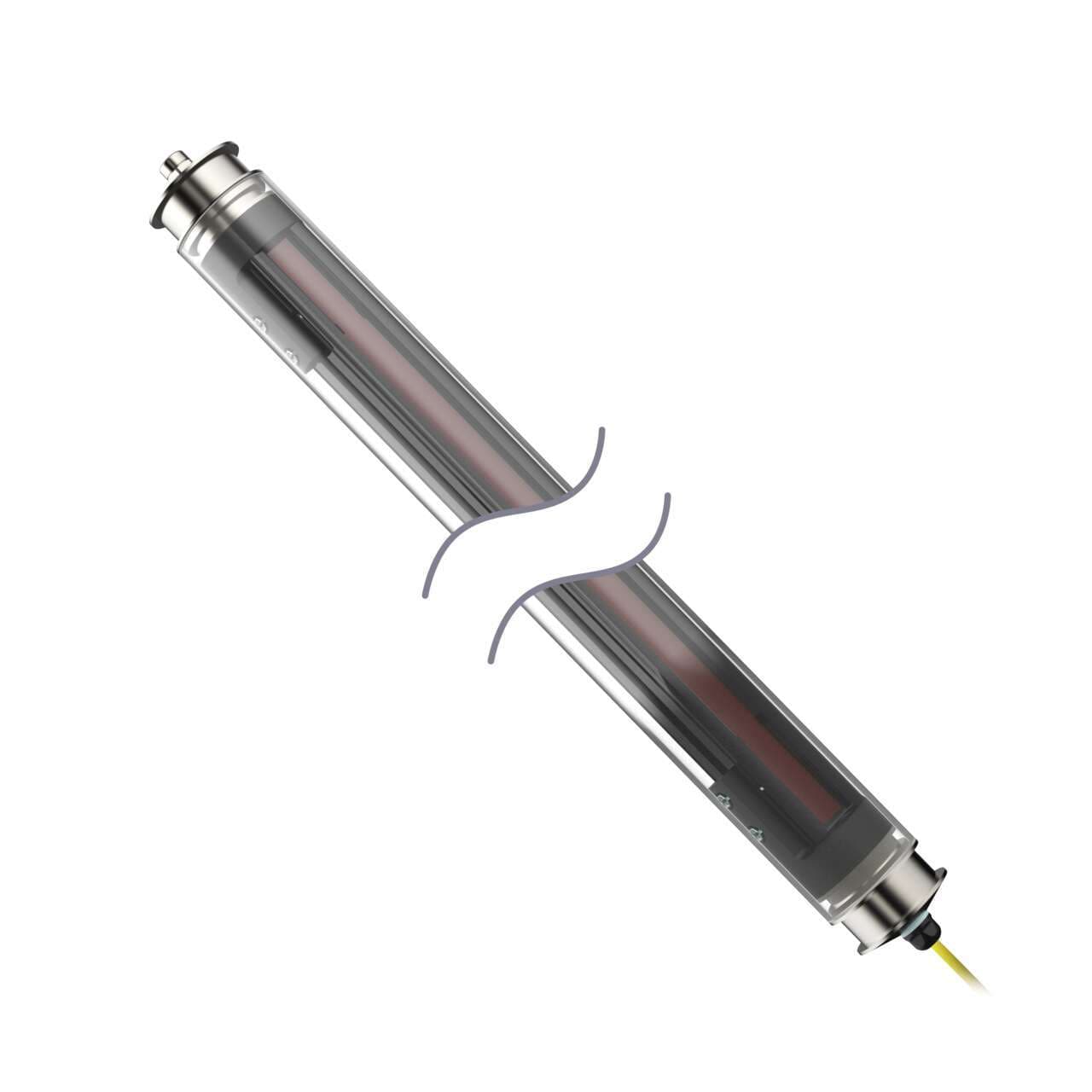

EZLSA-HTE-E23-630 Banner Safety Light Curtains
Part#:EZLSA-HTE-E23-630
Alt. Part#:803159
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS; Emitter; 630 mm; Resolution: 23 mm; Range: 8.4 m (27 ft); Defined Area: 630 mm (24.8 in); Housing: Black; LS Custom Connector to 8-wire Flying Leads; in Hygienic Tubular Enclosure
Product Details
- Weight 5751.092968 g
- Country Of Origin US
- Overall Length (mm) 792
- Effective Aperture Angle Type 4 Per IEC 61496-2
- Safety Level Type 4
- Connector Type 7.6 m Cable with Flying Leads
- Dimensions WxD (mm) Φ 63.5
- Fixed Blanking No
- Operating Voltage 24 V dc +/- 15%
- Number of Pins (Receiver/Emitter) 8
- Recovery Time 51 / 175
- Operating Temperature -20 to +55 deg. C; RH 95%
- Resolution (mm) 23
- Defined Area Height (mm) 630
- External Monitoring Device 1 Channel
- IP Rating IP65; IP67; IP69
- Primary Housing Material FDA Polycarbonate
- Housing Finish Yellow Polyester
- Operating Distance (m) 0.1 - 8.4
- Vibration 10-55 Hz at 0.35 mm
- Auxiliary Output No
- Fault Output Yes
- Test Input No
- Shock 10g at 16ms (6000 cycles)
- Feature: ESD Safe No
- PL Rating Ple
- Feature: Integral Muting No
- System Type Emitter
- Housing Material FDA-grade Polycarbonate, Stainless Steel
- Reduced Resolution No
- Supply Current 110 mA Typical
- Response Time 12.5
- Trip/Latch Output Trip
- OSSD Rating 24 V dc at 0.5 A each
- SIL Rating SIL3; CL3
- Electrical Safety Class III
- Feature: End-to-End Sensing No
- Scan Code Selectable
- Feature: Washdown Rated Yes
- Short Protection Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZLSA-HTE-E23-630 on Powermatic Associates is $1,597.00. Order now.
About the product
Banner Engineering EZLSA-HTE-E23-630 is a safety light curtain designed for hand detection with a resolution of 23mm and a protective height of 630mm. It features an FDA-approved hygienic polycarbonate (PC) housing, PVC cable, and stainless steel end cap, ensuring durability and compliance with hygiene standards. This part operates within an ambient air temperature range of -20 to +55°C and offers a high degree of protection with IP65, IP67, and IP69K ratings. It emits infrared (IR) light and has a response time of 12.5ms. The EZLSA-HTE-E23-630 is equipped with two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and can sense objects within a distance of 10cm to 8.4m. It belongs to the LS series type 4 safety light curtains specifically designed for use in hygienic areas and comes pre-wired with a 25ft cable terminated with bare end flying leads. The supply voltage required is 24Vdc, and the cable diameter is 63.5mm. The housing is yellow, and the beam spacing/pitch is 23mm, with a net height of 792 mm.
