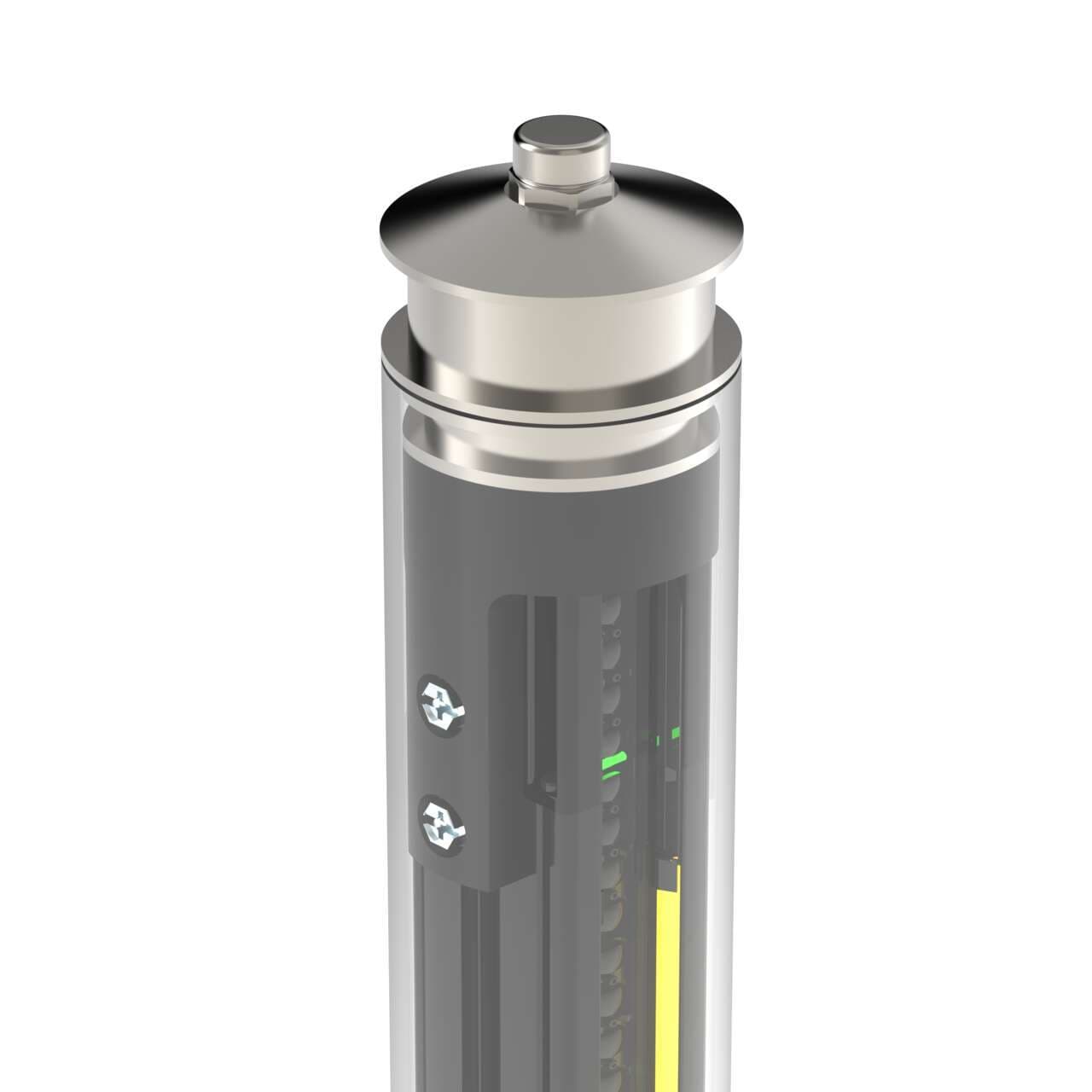

EZLSA-HTE-R23-910 Banner Safety Light Curtains
Part#:EZLSA-HTE-R23-910
Alt. Part#:803166
Manufacturer:Banner
Category:Safety Light Curtains
Product Lifecycle:Active
Product description
EZ-SCREEN LS; Receiver; 910 mm; Resolution: 23 mm; Range: 8.4 m (27 ft); Defined Area: 910 mm (35.8 in); Housing: Black; LS Custom Connector to 8-wire Flying Leads; in Hygienic Tubular Enclosure
Product Details
- Weight 6454.61416 g
- Country Of Origin US
- Operating Temperature -20 to +55 deg. C; RH 95%
- PL Rating Ple
- SIL Rating SIL3; CL3
- Electrical Safety Class III
- Auxiliary Output No
- Fault Output Yes
- Supply Current 110 mA Typical
- Feature: ESD Safe No
- OSSD Rating 24 V dc at 0.5 A each
- Feature: Integral Muting No
- Operating Voltage 24 V dc +/- 15%
- Reduced Resolution No
- Shock 10g at 16ms (6000 cycles)
- Vibration 10-55 Hz at 0.35 mm
- Feature: Washdown Rated Yes
- Trip/Latch Output Trip
- External Monitoring Device 1 Channel
- Safety Level Type 4
- Operating Distance (m) 0.1 - 8.4
- Resolution (mm) 23
- System Type Receiver
- Scan Code Selectable
- Housing Finish Yellow Polyester
- Fixed Blanking No
- Defined Area Height (mm) 910
- Connector Type 7.6 m Cable with Flying Leads
- Response Time 15.9
- Overall Length (mm) 1072
- Primary Housing Material FDA Polycarbonate
- Test Input No
- Dimensions WxD (mm) Φ 63.5
- Number of Pins (Receiver/Emitter) 8
- Effective Aperture Angle Type 4 Per IEC 61496-2
- IP Rating IP65; IP67; IP69
- Housing Material FDA-grade Polycarbonate, Stainless Steel
- Feature: End-to-End Sensing No
- Recovery Time 67 / 225
- Short Protection Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EZLSA-HTE-R23-910 on Powermatic Associates is $2,108.00. Order now.
About the product
Banner Engineering EZLSA-HTE-R23-910 is a safety light curtain designed for hand detection with a resolution of 23mm and a protective height of 910mm. It features a FDA-approved hygienic polycarbonate (PC) housing, PVC cable, and stainless steel end cap, ensuring durability and compliance with hygiene standards. This part operates within an ambient air temperature range of -20 to +55 °C and offers a high degree of protection with ratings of IP65, IP67, and IP69K. It emits infrared (IR) light and has a response time of 15.9ms. Equipped with 2 digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs), it supports a sensing distance from 10cm to 8.4m. This model, part of the LS series type 4 safety light curtain in an IP69K hygienic housing, comes pre-wired with a 25ft cable terminated with bare end flying leads. It requires a 24Vdc supply voltage and features a 63.5mm diameter cable, yellow housing, 23mm beam spacing/pitch, and a net height of 1072 mm.
