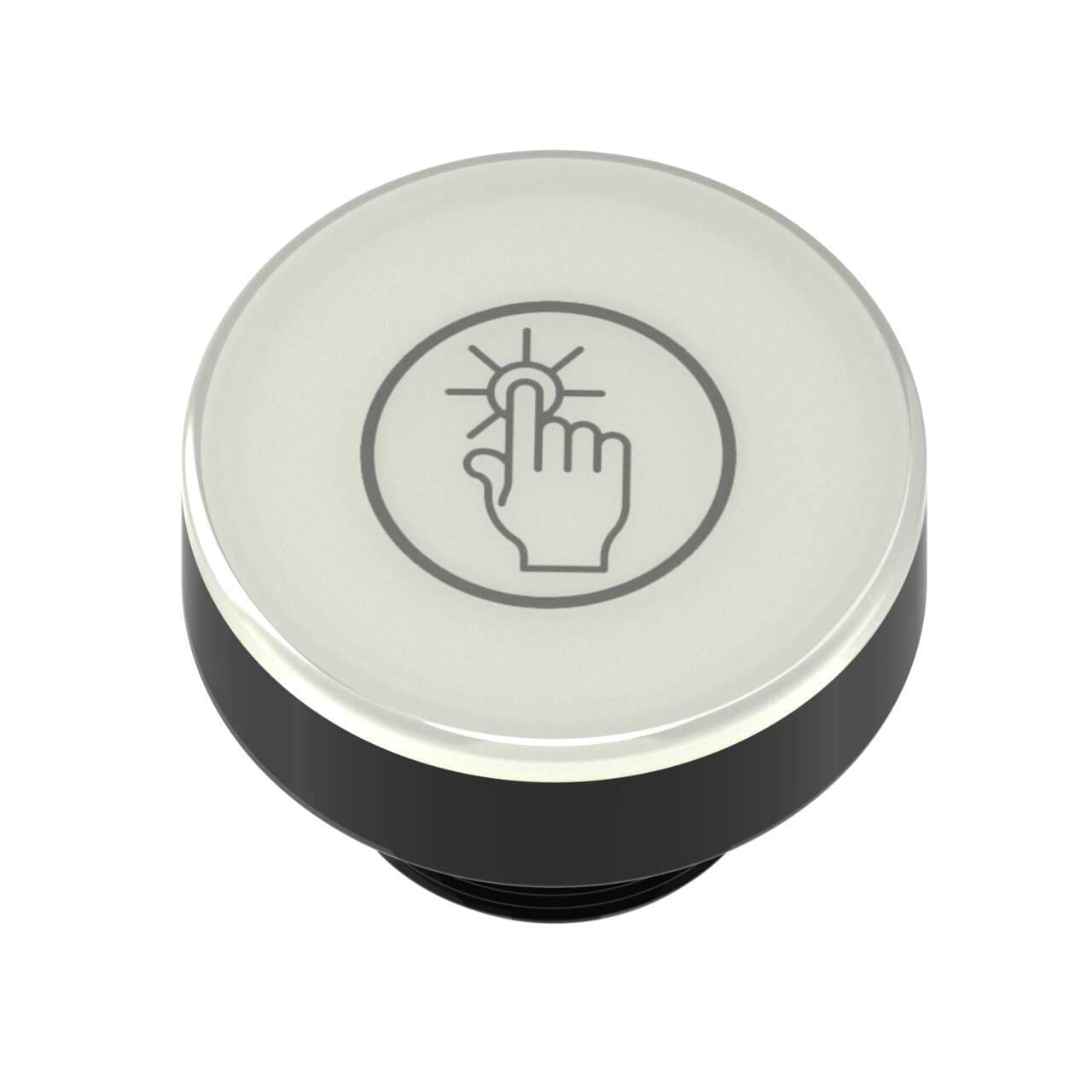

K50CAPT2GREQ Banner Pick-to-Light Sensors
Part#:K50CAPT2GREQ
Alt. Part#:803845
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Compact Series: 2-Color Touch Sensor Gen 2; Job Light Overrides Touch Light; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green Red; 5-pin M12 Integral QD
Product Details
- Weight 90.7184 g
- Country Of Origin MX
- Housing Style Base Mount - Flat Window
- Color Option 1 Green
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Number of Input Pins/Conductors 5
- IO Link No
- Mounting Thread M30 x 1.5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.0
- Mis-Pick Light Red
- Feature: Chemical Resistant No
- Actuation Yes
- Connection Integral QD
- Color Option 2 Red
- Output Type PNP
- Storage Temp (°C) -40 to 70
- Modbus RTU No
- Max Current Color (mA) 75
- Max Output Response Time (ms) 50
- Button Operation Momentary
- Primary Housing Material Polycarbonate
- Power DC
- Job Light Green
- Product Size (mm) 50
- Pick-to-Light Function E
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Hazardous Area No
- Operation Normally Open
- Max Op. Temperature (°C) 50
- Feature: Washdown Rated Yes
- Number of Colors / Segments 2
- Wireless No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Lumens Color 1 29.0
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Input Type PNP
- Primary Housing Color Black
- I/O Block Compatible Yes
- Multi-Color Device Single Color On
- Power Source DC
- Color Technology Standard LED
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Environmental Rating IP67; IP69
- Feature: Audible No
- Activation Function Capacitive Touch
- Animation Option 1 Solid On
- Lumens Color 2 13.0
- Supply Voltage 12-30 V dc
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50CAPT2GREQ on Powermatic Associates is $159.00. Order now.
About the product
Banner Engineering K50CAPT2GREQ is a capacitive touch-sensitive pick-to-light component from the EZ-LIGHT series, designed with a flat-top Gen.2 LED illumination for clear visibility. It features a black housing with a flat window shape, constructed from polycarbonate (PC) for both the diffused window and the base, ensuring durability. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads for easy installation. It operates on a supply voltage of 12Vdc-30Vdc, with 24Vdc nominal, and can be mounted via surface or base pole with an M30 thread. The device has a diameter of 50mm / 2" and is designed to function in ambient air temperatures ranging from -40°C to +50°C. It offers a high degree of protection with IP67 and IP69K ratings, suitable for harsh environments. The operating mode includes a momentary job light (Green) that is ON when the job input is active, and touch activates the output and sensing light (Red) with a Normally Open (NO) touch output. It consumes 75mA of current and includes 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
