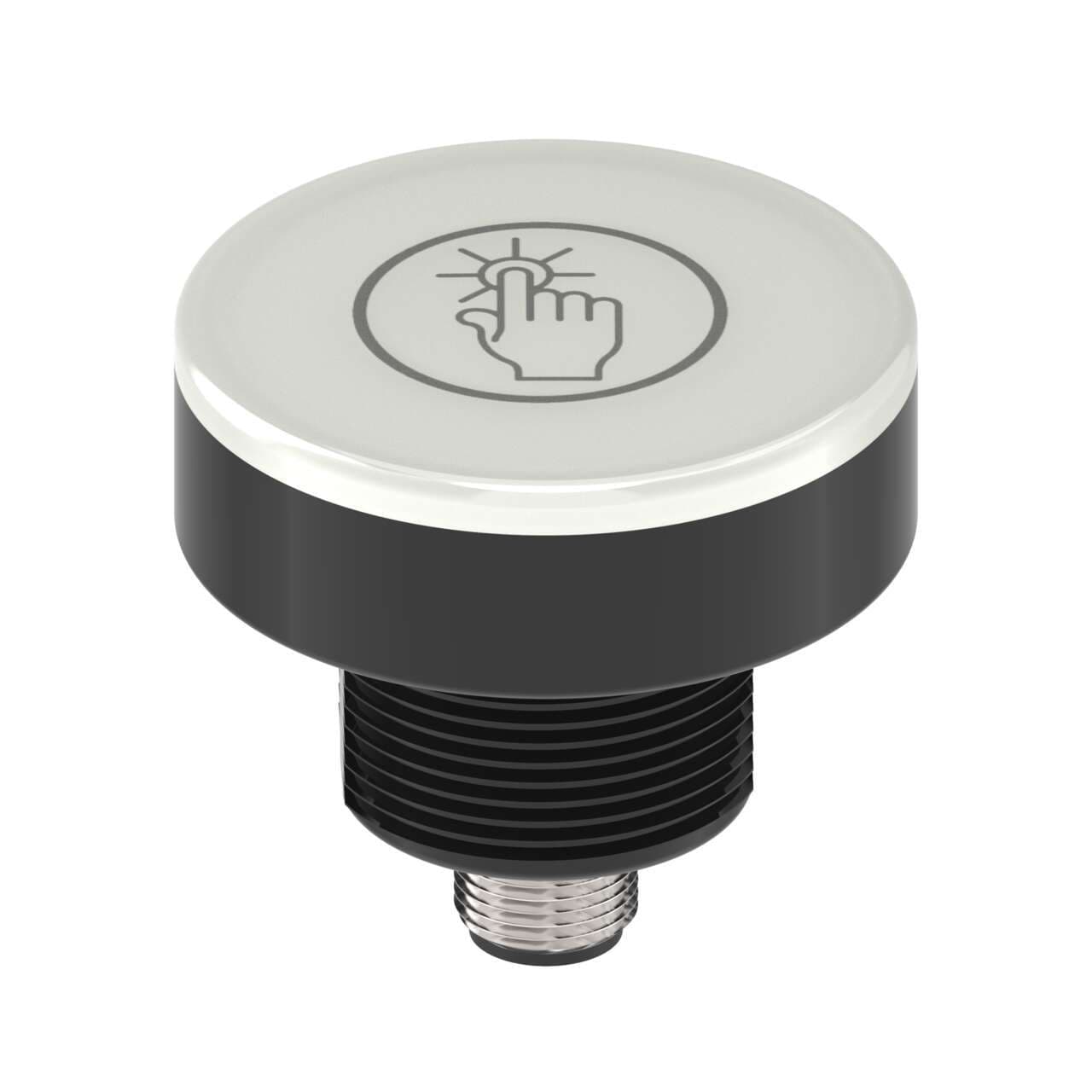

K50CAPT2GXDQ Banner Pick-to-Light Sensors
Part#:K50CAPT2GXDQ
Alt. Part#:803846
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Compact Series: 1-Color Touch Sensor Gen 2; Job Light Only; Voltage: 12-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: PNP (NO); Colors: Green; 5-pin M12 Integral QD
Product Details
- Weight 362.8736 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 48.0
- Feature: Hazardous Area No
- Power Source DC
- Color Option 1 Green
- Input Type PNP
- Storage Temp (°C) -40 to 70
- Multi-Color Device Single Color On
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
- Housing Style Base Mount - Flat Window
- Connection Integral QD
- Operation Normally Open
- Primary Housing Color Black
- Modbus RTU No
- Number of Colors / Segments 1
- Pick-to-Light Function D
- Feature: Audible No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Max Current Color (mA) 75
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Button Operation Momentary
- Output Type PNP
- Feature: Chemical Resistant No
- Pro-Editor Compatible (Discrete) No
- Primary Housing Material Polycarbonate
- Animation Option 1 Solid On
- Actuation Yes
- Lumens Color 1 29.0
- Max Output Response Time (ms) 50
- Feature: Washdown Rated Yes
- Job Light Green
- Product Size (mm) 50
- Supply Voltage 12-30 V dc
- Min Op. Temperature (°C) -40
- IO Link No
- Power DC
- Color Technology Standard LED
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Wireless No
- Environmental Rating IP67; IP69
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50CAPT2GXDQ on Powermatic Associates is $159.00. Order now.
About the product
Banner Engineering K50CAPT2GXDQ is a capacitive touch-sensitive pick-to-light component from the EZ-LIGHT series, designed with a flat-top Gen.2 LED illumination. It features a black housing with a flat window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50CAPT2GXDQ offers versatile mounting options, including surface or base pole with an M30 thread, and has a diameter of 50mm / 2 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated with a degree of protection of IP67 and IP69K. The operating mode includes a momentary job light (G; Green) that is ON when the job input is active, and touch activates the output and sensing light (W; White) with a Normally Open (NO) touch output. The current consumption is 75mA, and it features 1 x digital input (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch functionality.
