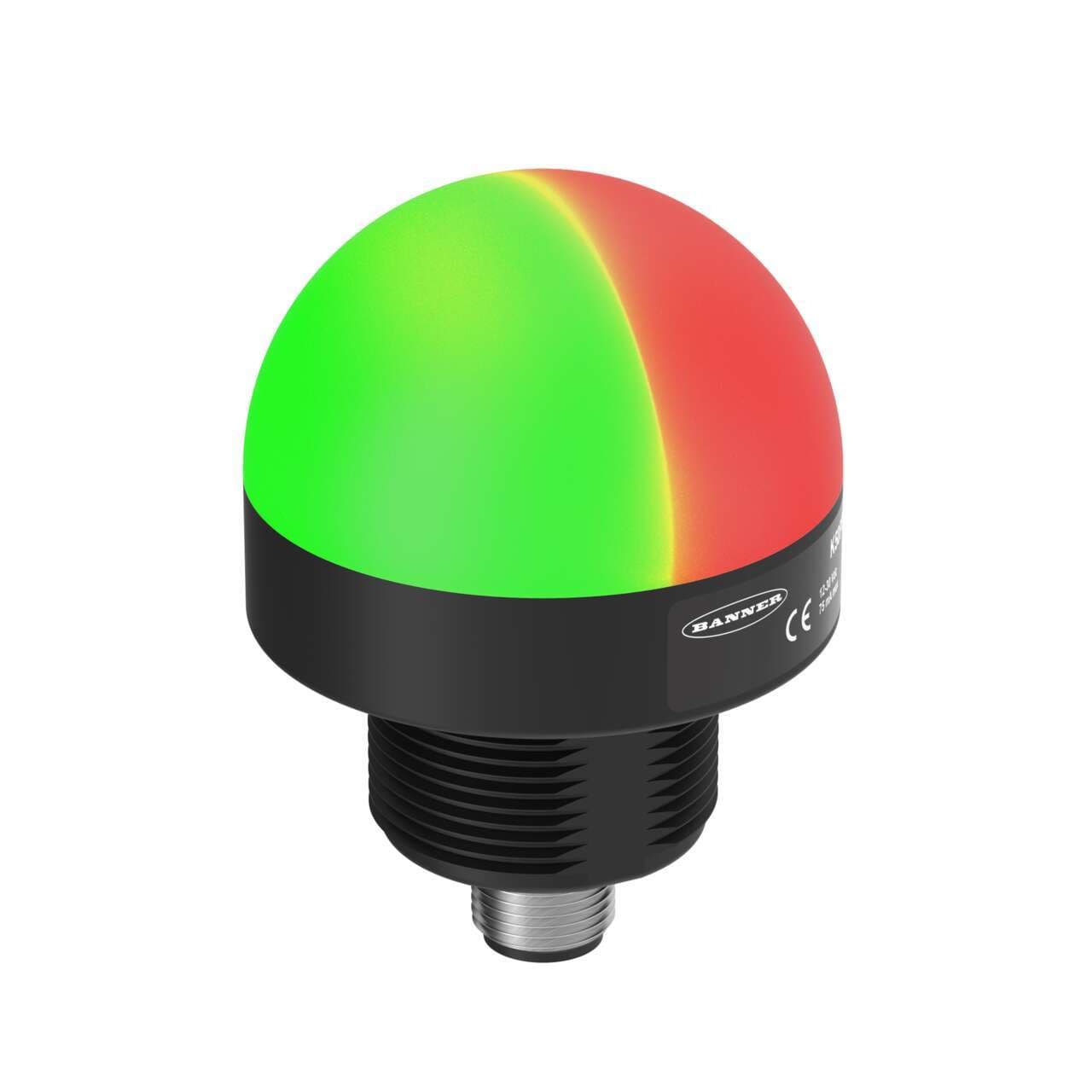

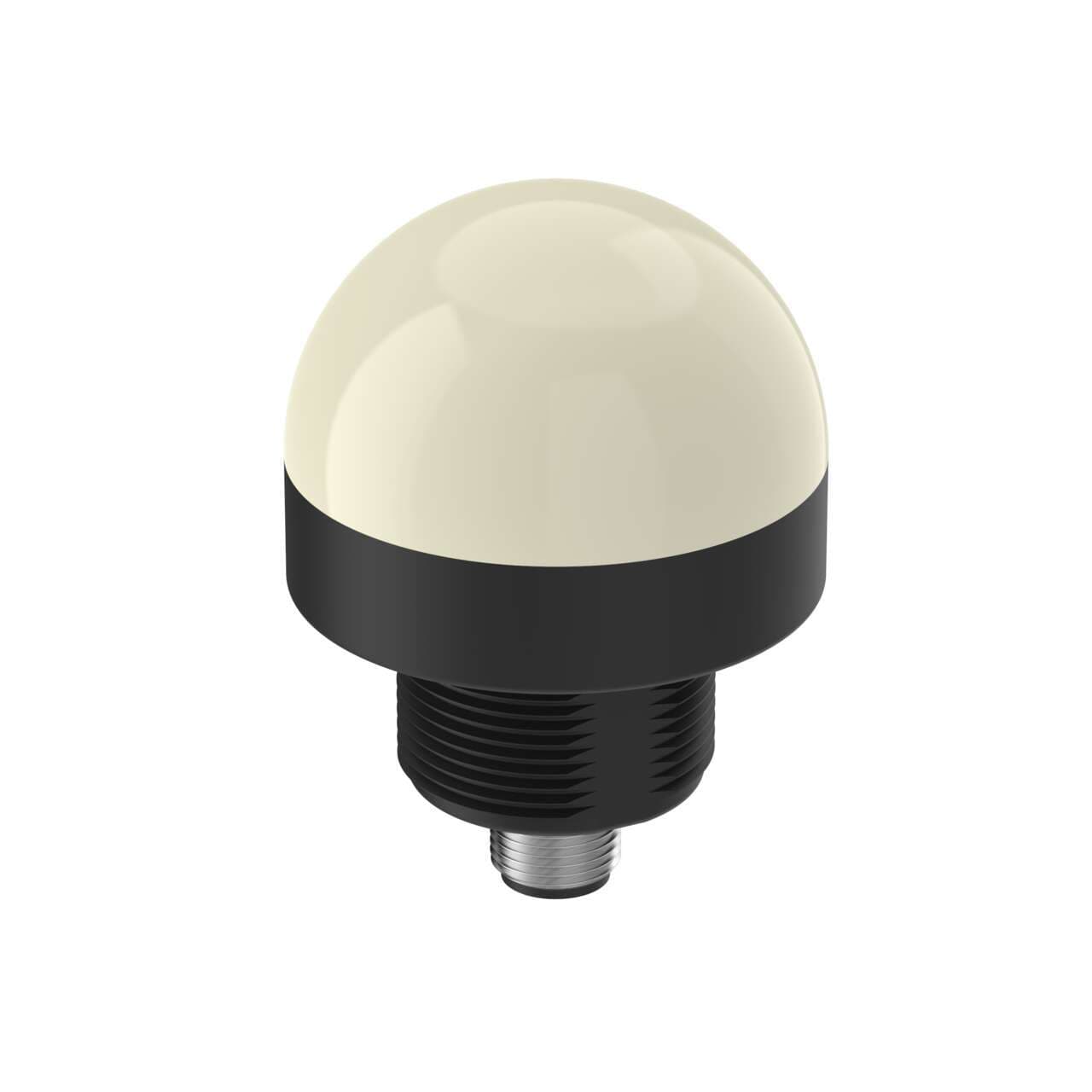

K50L2RGBKQ Banner Pick-to-Light Sensors
Part#:K50L2RGBKQ
Alt. Part#:802158
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Pro with IO-Link Series: RGB Indicator; Voltage: 18 - 30 V dc; Housing: Polycarbonate; IP66 IP67 IP69K; Colors: Multicolor; 4-pin M12 Integral QD
Product Details
- Weight 145.14944 g
- Country Of Origin US
- Color Input Control Communication Protocol
- Color Option 1 RGB
- Input Type Communication Protocol
- Primary Window Material Polycarbonate Diffused
- Number of Colors / Segments Programmable
- Connection Integral QD
- Max Input Response Time (ms) 30
- Feature: Hazardous Area No
- Housing Style Base Mount - Dome Window
- Dimming Option Programmable
- Environmental Rating IP66; IP67; IP69
- IO Link Yes
- Mounting Thread M30 x 1.5
- Color Technology RGB IO-Link
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Audible No
- Power DC
- Max Current Color (mA) 150
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Product Size (mm) 50
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 18-30 V dc
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Animation Option 1 IO-Link Controlled
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 69.0
- Min Op. Temperature (°C) -40
- Power Source DC
- Number of Input Pins/Conductors 4
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
- Primary Housing Color Black
- Wireless No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50L2RGBKQ on Powermatic Associates is $119.00. Order now.
About the product
Banner Engineering K50L2RGBKQ is a pilot light designed with a 14-color RGB multicolor LED illumination, compatible with IO-Link. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-wired with a 6" / 15cm pigtail that terminates with a 4-pin M12 Euro-style QD connector. It operates on a supply voltage range of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50L2RGBKQ can be mounted on a surface, base, or pole flush with a 30mm hole and an M30 thread, and has a dome diameter of 50mm / 2". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C. This part offers a high degree of protection with ratings of IP66, IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13, ensuring its durability in various environments. The current consumption is 150mA.
