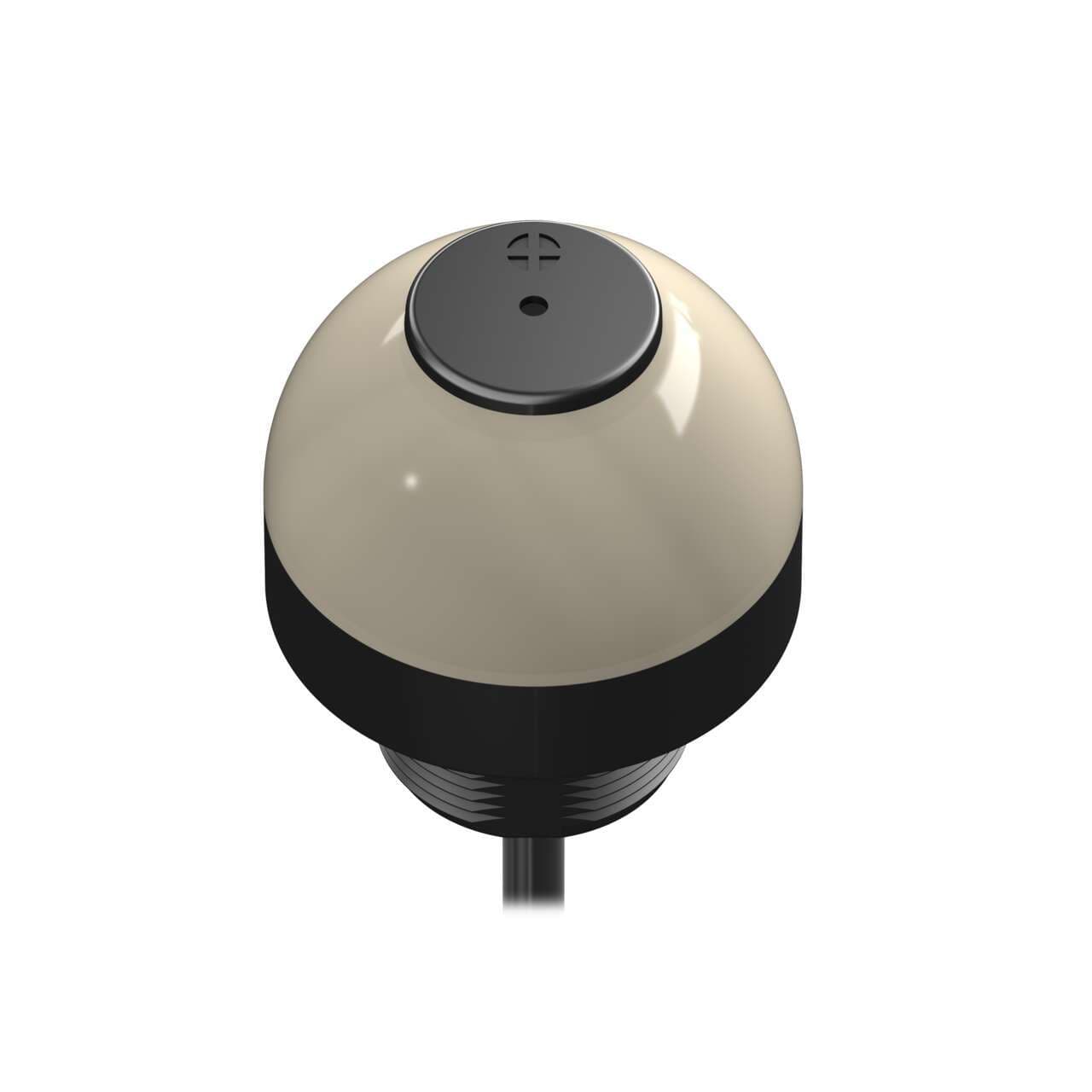

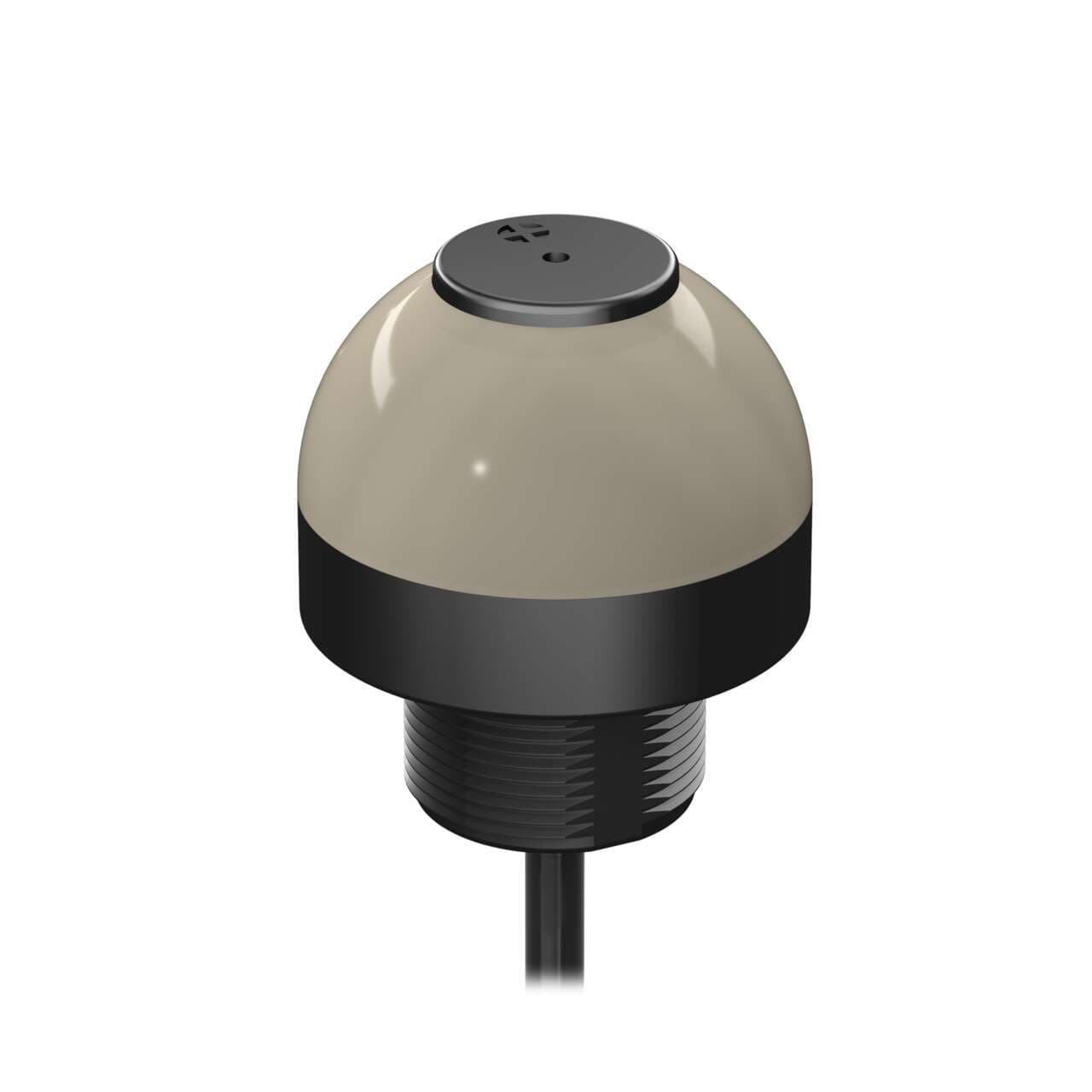

K50LGRA2YN Banner Pick-to-Light Sensors
Part#:K50LGRA2YN
Alt. Part#:78841
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Pulsed; Input: NPN; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 226.796 g
- Country Of Origin US
- Power DC
- Animation Option 1 Solid On
- Min Audible Intensity (db at 1m) 75
- Max Current - Audible Alarm (mA) 40
- Wireless No
- Cable Length (m) 0.15
- Number of Input Pins/Conductors 5
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Supply Voltage 18-30 V dc
- Min Op. Temperature (°C) -20
- Multi-Color Device Single Color On
- Product Size (mm) 50
- Connection Cable
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 57.0
- Secondary Material ABS
- Indication Yes
- Color Option 1 Green
- Input Type NPN
- Max Op. Temperature (°C) 50
- IO Link No
- Housing Style Base Mount - Dome Window
- Color Option 3 Yellow
- Audible Alarm Type Pulsed
- Max Input Response Time (ms) 10
- Feature: Audible Yes
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
- Max Current Color (mA) 40
- Mounting Thread M30 x 1.5
- Max Audible Intensity (db at 1m) 75
- Primary Housing Color Black
- Feature: Quick Disconnect No
- Power Source DC
- Color Option 2 Red
- Environmental Rating IP50
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Audible Operating Frequency (kHz) 3.0
- Feature: Hazardous Area No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRA2YN on Powermatic Associates is $168.00. Order now.
About the product
Banner Engineering K50LGRA2YN is a pilot light from the EZ-LIGHT series designed to serve as an audible LED pilot light indicator. It features a steady sound with a 3-color G/R/Y color pattern LED illumination housed in a black dome-shaped body. The window and base of the unit are made from polycarbonate (PC), ensuring durability. This part is designed for easy connection, pre-equipped with a 5-pin M12 Euro-style QD connector. It operates on a supply voltage of 18Vdc to 30Vdc, with 24Vdc as the nominal voltage. The K50LGRA2YN offers versatile mounting options including surface, base, or pole flush with a 30mm hole and an M30 thread. The dome has a diameter of 50mm (2 inches), and it can operate in ambient air temperatures ranging from -20°C to +50°C. It boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption is 40mA. For control, it includes 3 x digital inputs for color control and 1 x digital input for alarm, all supporting 18-30Vdc PNP.
