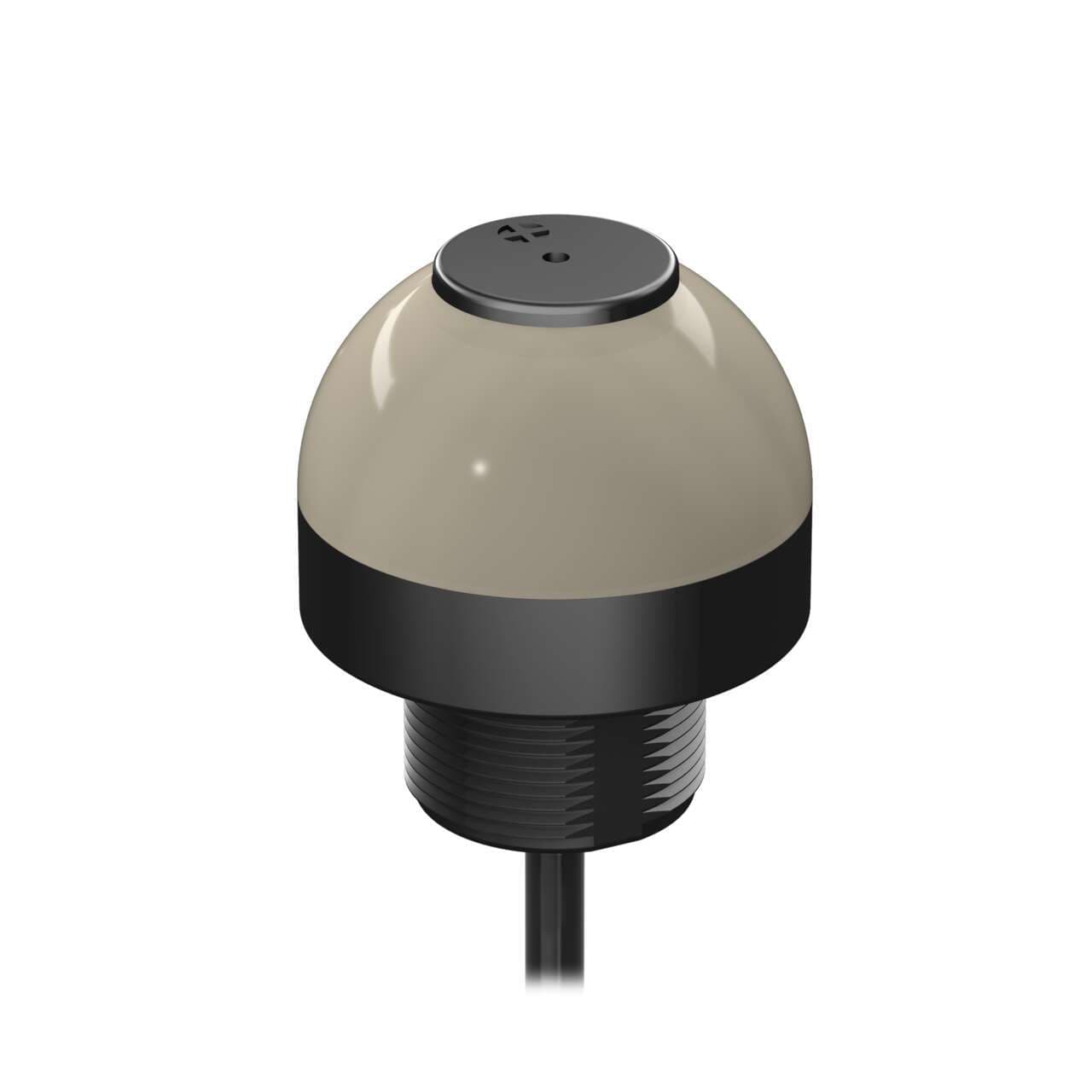

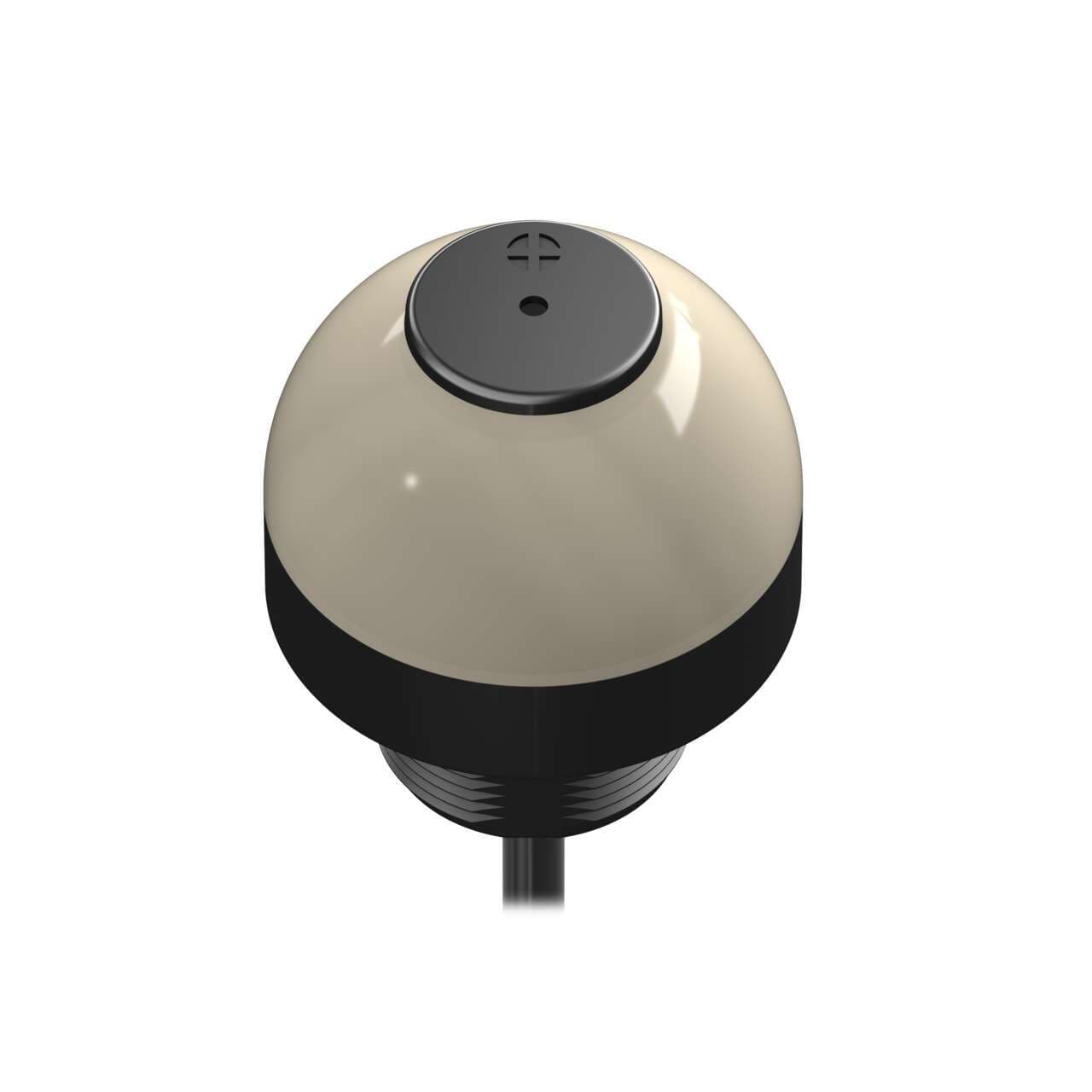

K50LGRA2YP Banner Pick-to-Light Sensors
Part#:K50LGRA2YP
Alt. Part#:78809
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K50 Series EZ-LIGHT: 3-Color Audible Indicator; Voltage: 18-30 V dc; Housing: Polycarbonate; IP50; Tone: Pulsed; Input: PNP; Colors: Green Red Yellow; 2 m (6.5 ft) Integral Cable
Product Details
- Weight 249.4756 g
- Country Of Origin MX
- Primary Housing Material Polycarbonate
- Indication Yes
- Power DC
- Color Technology Standard LED
- Color Option 2 Red
- Product Size (mm) 50
- Supply Voltage 18-30 V dc
- Housing Style Base Mount - Dome Window
- Connection Cable
- Power Source DC
- Animation Option 1 Solid On
- Min Audible Intensity (db at 1m) 75
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 3
- Number of Input Pins/Conductors 5
- Input Type PNP
- Mounting Thread M30 x 1.5
- Color Option 1 Green
- Max Current Color (mA) 40
- Max Audible Intensity (db at 1m) 75
- Max Input Response Time (ms) 10
- Feature: Audible Yes
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- IO Link No
- Multi-Color Device Single Color On
- Modbus RTU No
- Wireless No
- Feature: Chemical Resistant No
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 57.0
- Primary Housing Color Black
- Max Op. Temperature (°C) 50
- Audible Alarm Type Pulsed
- Environmental Rating IP50
- Secondary Material ABS
- Max Current - Audible Alarm (mA) 40
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Primary Window Material Polycarbonate Diffused
- Color Option 3 Yellow
- Audible Operating Frequency (kHz) 3.0
- Min Op. Temperature (°C) -20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50LGRA2YP on Powermatic Associates is $150.00. Order now.
About the product
Banner Engineering K50LGRA2YP is a pilot light from the EZ-LIGHT series featuring an audible LED pilot light indicator with a pulsed sound and 2-color G/R color pattern LED illumination. It has a black housing with a dome window shape, constructed from polycarbonate (PC) for both the diffused window and the base. This part is pre-wired with a 2m / 6.5ft 5-wire cable terminated with bare end flying leads, supporting a supply voltage range of 18Vdc-30Vdc (24Vdc nom.). It offers versatile mounting options including surface, base, or pole flush with a 30mm hole and M30 thread. The dome diameter measures 50mm / 2 inches. It operates within an ambient air temperature range of -20°C to +50°C and boasts a degree of protection rated at IP50, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. The current consumption is 40mA, and it includes 2 x digital inputs (18-30Vdc; NPN) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input.
