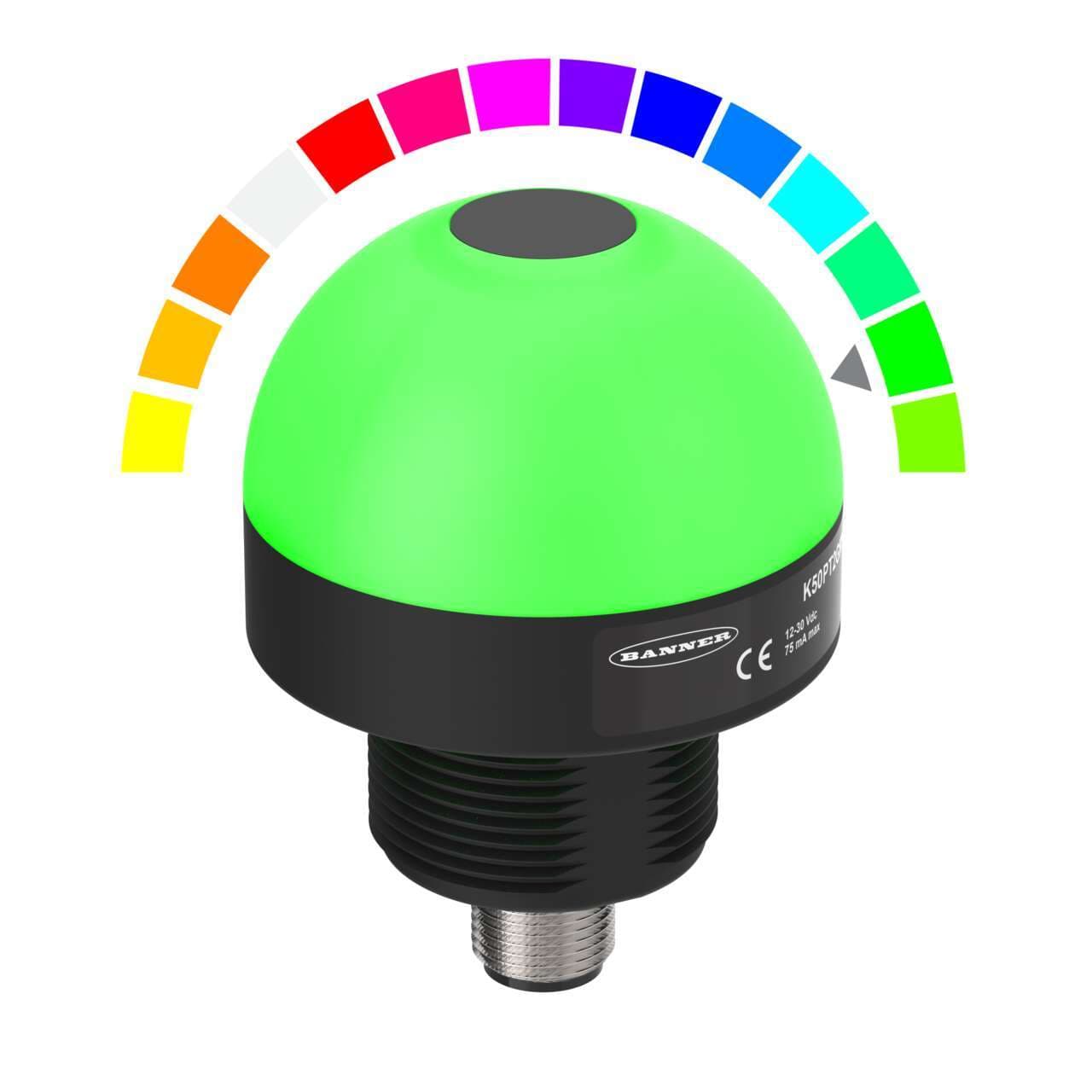

K50PFF50AMRGB14Q Banner Pick-to-Light Sensors

Product Details

• Weight
  149.68536 g
• Country Of Origin
  MX
• Sensing Mode (General)
  Fixed Field
• Number of Colors / Segments
  14
• Lumens Color 3
  14.2
• Color Option 6
  Magenta
• Supply Voltage
  12-30 V dc
• Housing Style
  Base Mount - Dome Window
• Color Option 1
  Red
• Lumens Color 4
  15.8
• Color 7 - Wavelength/Color Temp/Coordinates
  5700K
• Input Type
  Bimodal (PNP/NPN)
• IO Link
  No
• Power
  DC
• Connection
  Integral QD
• Color Option 4
  Cyan
• Lumens Color 7
  21.6
• Max Input Response Time (ms)
  40
• Modbus RTU
  No
• Max Op. Temperature (°C)
  50
Primary Housing Color
Black
Mounting Thread
M30 x 1.5
Color 1 - Wavelength/Color Temp/Coordinates
620 nm
Color 4 - Wavelength/Color Temp/Coordinates
493 nm
Max Current Color (mA)
150
Maximum Sensing Distance (mm)
50
Activation Function
Optical
Product Size (mm)
50
Color Option 3
Green
Lumens Color 5
4
Pick-to-Light Function
F2
Number of Beams
1
Feature: Chemical Resistant
No
Cable Length (m)
2
Color Input Control
Multiple (One or more wires/color, enables more colors than input wires)
Lumens Color 2
20.5
Color 5 - Wavelength/Color Temp/Coordinates
466 nm
Operation
Normally Open
Quick Disconnect Type
M12 (Euro)
Environmental Rating
IP67; IP69
Feature: Hazardous Area
No
Lumens Color 1
7.1
Color Option 5
Blue
Primary Window Material
Polycarbonate Diffused
Pro-Editor Compatible (Discrete)
Yes
Color Option 2
Yellow
Wire Selectable Function
Flashing
Storage Temp (°C)
-40 to 70
Primary Housing Material
Polycarbonate
Physical Dimensions (LxWxH or DxH mm)
50.0 x 67.3
Wireless
No
Color Option 7
White
Min Op. Temperature (°C)
-40
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Multi-Color Device
Simultaneous Colors On
Actuation
Yes
Color 3 - Wavelength/Color Temp/Coordinates
522 nm
Max Output Response Time (ms)
300
Button Operation
Momentary
Power Source
DC
Color Technology
RGB Configurable
Color 2 - Wavelength/Color Temp/Coordinates
576 nm
Output Type
Bipolar (NPN & PNP)
USB
No
Lumens Color 6
9.5
Number of Input Pins/Conductors
8
Feature: Washdown Rated
Yes
Feature: Audible
No
