K50PTVAMGRY3QP Banner Pick-to-Light Sensors
Part#:K50PTVAMGRY3QP
Alt. Part#:807912
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description

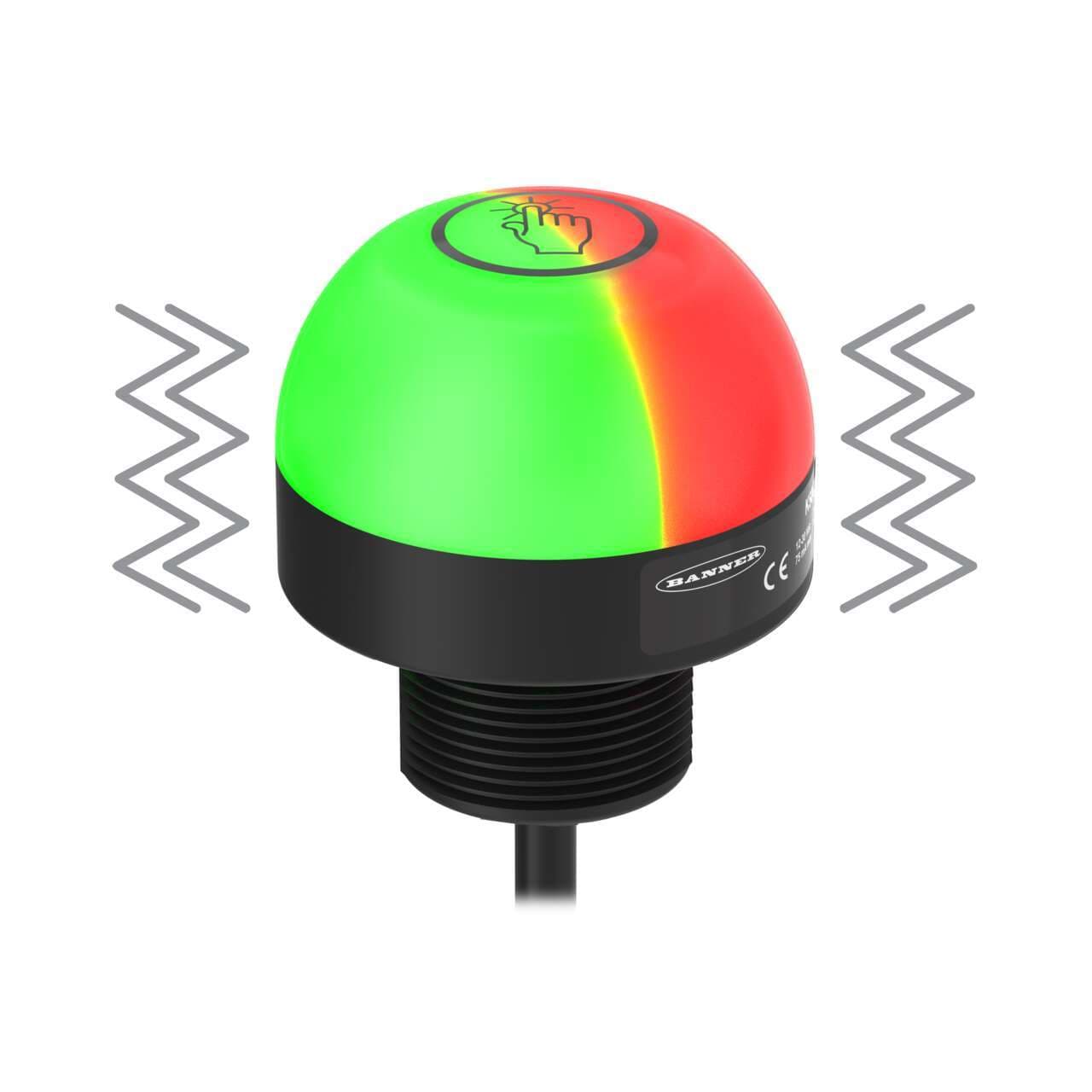

K50 Pro Touch Series: 3-Color RGB Touch Sensor with Vibration Feedback; 12-30 V dc; Polycarbonate; IP67 IP69K; Bimodal, NO, Momentary; Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 160.117976 g
- Country Of Origin MX
- Power Source DC
- Vibration Feedback Yes
- Color Option 1 Green
- Wireless No
- Power DC
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Mounting Thread M30 x 1.5
- Max Current Color (mA) 150
- Max Output Response Time (ms) 300
- Feature: Hazardous Area No
- Housing Style Base Mount - Flat Window
- Lumens Color 1 16.5
- Lumens Color 3 23.8
- Number of Colors / Segments 3
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Color Option 3 Yellow
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Actuation Yes
- Pick-to-Light Function F2
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 55.0
- Feature: Chemical Resistant No
- Color 3 - Wavelength/Color Temp/Coordinates 576 nm
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) Yes
- Lumens Color 2 8.3
- Max Input Response Time (ms) 40
- Button Operation Momentary
- Supply Voltage 12-30 V dc
- Max Op. Temperature (°C) 50
- Feature: Audible No
- Output Type Bipolar (NPN & PNP)
- Environmental Rating IP67; IP69
- Feature: Washdown Rated Yes
- Operation Normally Open
- Storage Temp (°C) -40 to 70
- Multi-Color Device Simultaneous Colors On
- I/O Block Compatible Yes
- Primary Window Material Polycarbonate Diffused
- Primary Housing Material Polycarbonate
- Connection Pigtail QD
- Min Op. Temperature (°C) -40
- Product Size (mm) 50
- Color Option 2 Red
- Modbus RTU No
- Color Technology RGB Configurable
- Color 2 - Wavelength/Color Temp/Coordinates 620 nm
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K50PTVAMGRY3QP on Powermatic Associates is $185.00. Order now.
About the product

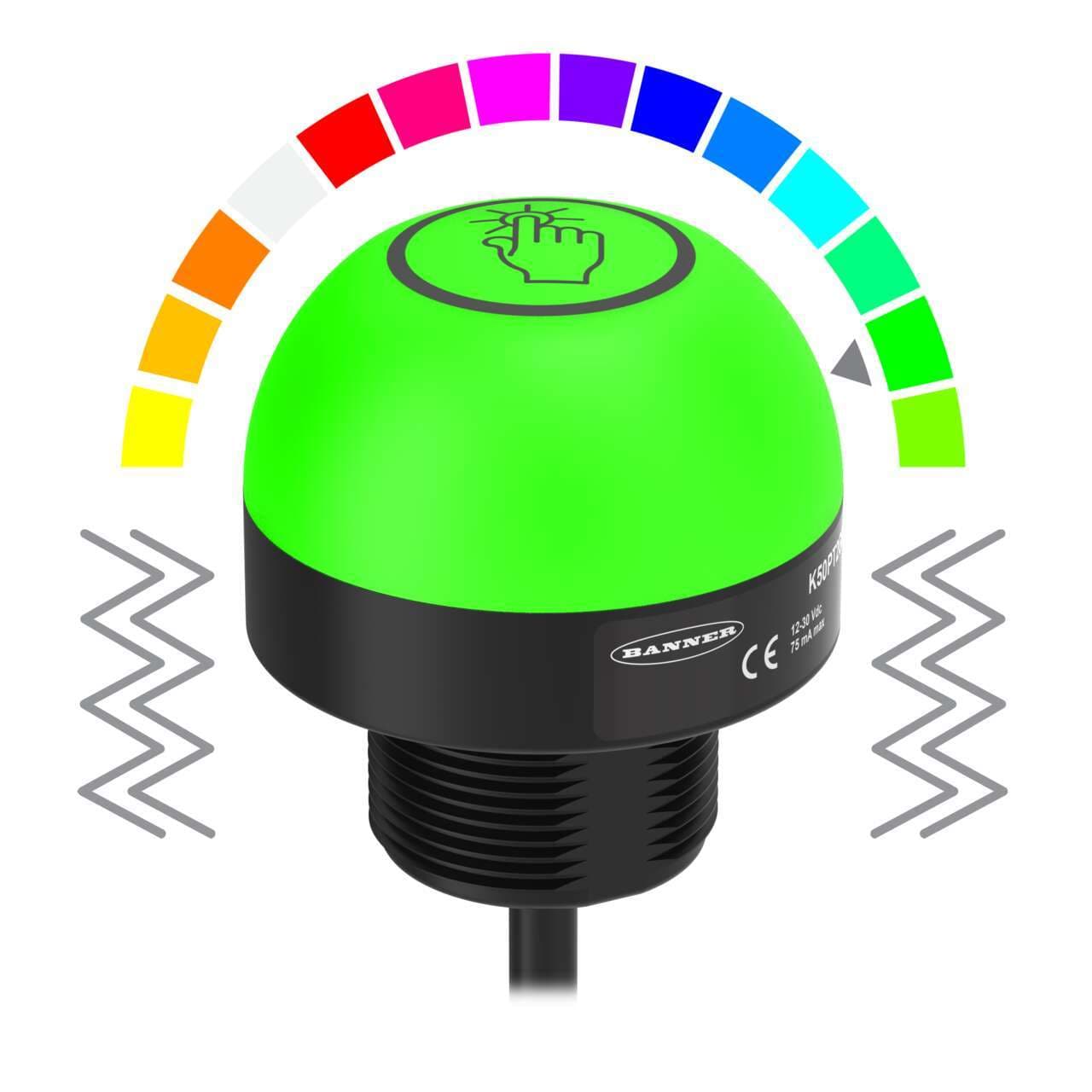

Banner Engineering K50PTVAMGRY3QP is an illuminated capacitive touch-sensitive button featuring vibration haptic feedback and 14-color RGB multicolor LED illumination. This part comes in a black housing with a dome window made of polycarbonate. It is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The supply voltage required ranges from 12Vdc to 30Vdc, with 24Vdc being nominal. It offers versatile mounting options including surface or base pole with an M30 thread. The dome diameter measures 50mm or approximately 2 inches. Designed to operate in ambient air temperatures ranging from -40°C to +50°C, it boasts a high degree of protection with IP67 and IP69K ratings. The operating mode is a momentary NO (Normally Open) touch output. It consumes a current of 150mA and includes 4 x digital inputs (12-30Vdc; PNP/NPN) for color control and 1 x digital output (12-30Vdc; PNP/NPN) for touch functionality.
