K70APT2GRYC3Q Banner Pick-to-Light Sensors
Part#:K70APT2GRYC3Q
Alt. Part#:96840
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K70 Series EZ-LIGHT: 3-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP65; Input: PNP (NO); Colors: Green Red Yellow; M12 Integral QD
Product Details
- Weight 199.58048 g
- Country Of Origin MX
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Acknowledge (Sense) Light Red
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 103.5
- Product Size (mm) 70
- Color Option 3 Yellow
- Environmental Rating IP65
- IO Link No
- Power Source DC
- Animation Option 1 Solid On
- Color Option 2 Red
- Supply Voltage 12-30 V dc
- Power DC
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Cable Length (m) 2
- Color Technology Standard LED
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Output Response Time (ms) 50
- Feature: Hazardous Area No
- Actuation Yes
- Lumens Color 1 45.0
- Mis-Pick Light Yellow
- Input Type PNP
- Min Op. Temperature (°C) -40
- Wireless No
- Housing Style Base Mount - Dome Window
- Number of Colors / Segments 3
- Lumens Color 3 13.0
- Output Type PNP
- Feature: Chemical Resistant No
- Job Light Green
- Activation Function Capacitive Touch
- Quick Disconnect Type M12 (Euro)
- Pick-to-Light Function C3
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Color Option 1 Green
- Max Current Color (mA) 220
- Operation Normally Open
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Multi-Color Device Single Color On
- Primary Housing Color Black
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70APT2GRYC3Q on Powermatic Associates is $216.00. Order now.
About the product

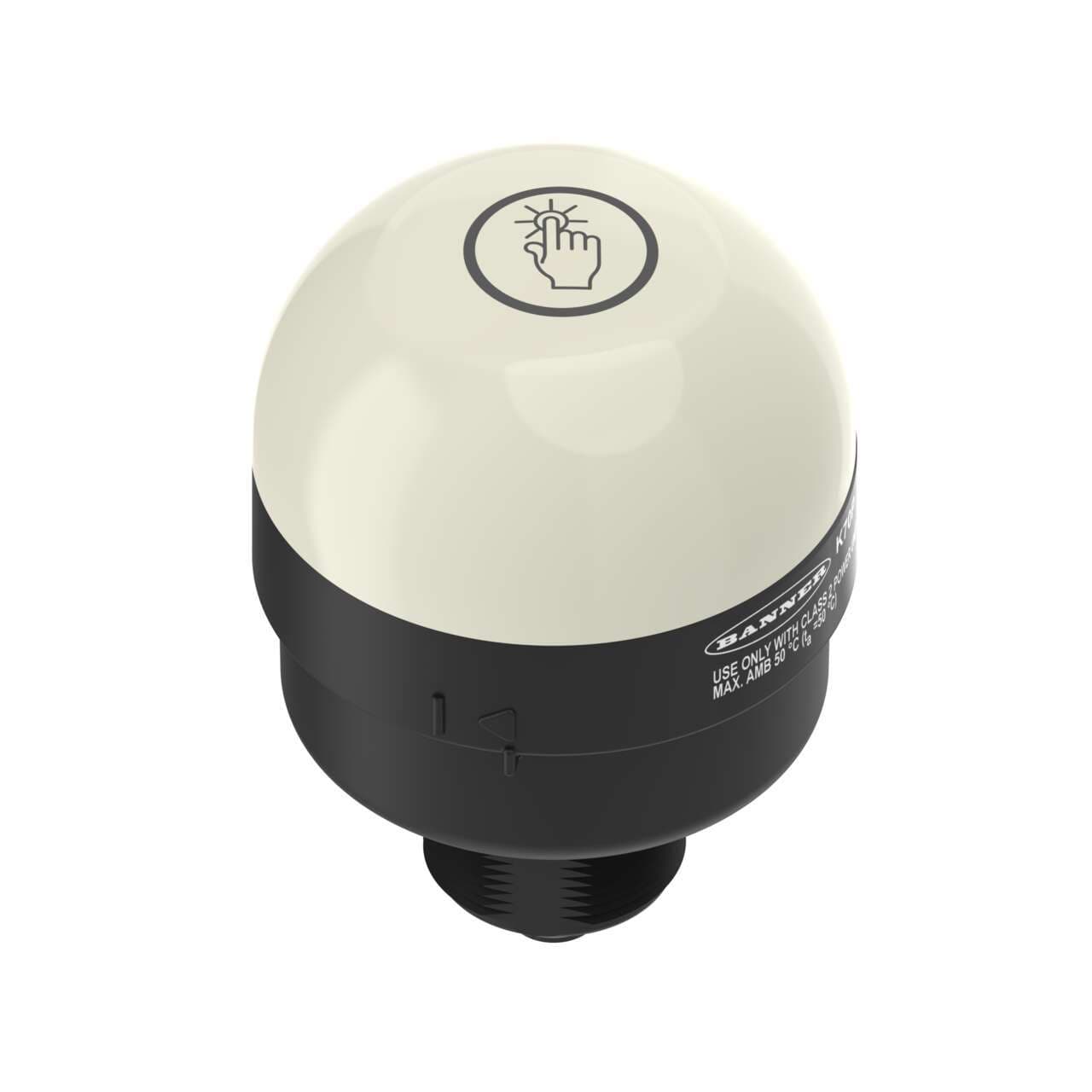

Banner Engineering K70APT2GRYC3Q, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from PC. This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K70APT2GRYC3Q can be mounted on a surface, base, or pole flush with a 30mm hole and has a diameter of 70mm or approximately 2-3/4 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP65 for protection against dust and water ingress. The operating mode includes a momentary job light (Green) that turns on when the job input is active, and touch activation triggers the output only. Touch activation with an inactive job input activates the mispick light (Red). It features a Normally Open (NO) touch output, with a current consumption of 220mA. Additionally, it has 1 x digital input (12-30Vdc; PNP) for JOB color control and 2 x digital outputs (12-30Vdc; PNP) for Touch and Mispick functions.
