K70APT2GRYF2 Banner Pick-to-Light Sensors
Part#:K70APT2GRYF2
Alt. Part#:96934
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K70 Series EZ-LIGHT: 3-Input-Color Touch Sensor Gen 2; Voltage: 12-30 V dc; Housing: Polycarbonate; IP65; Input: PNP (NO); Colors: Green Red Yellow; 2 m (6.5 ft) PVC Cable
Product Details
- Weight 290.29888 g
- Country Of Origin MX
- Cable Length (m) 2
- Lumens Color 1 45.0
- Input Type PNP
- Primary Housing Color Black
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Colors / Segments 3
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 95.5
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Connection Cable
- Output Type PNP
- Min Op. Temperature (°C) -40
- Primary Housing Material Polycarbonate
- Color Option 3 Yellow
- Operation Normally Open
- Feature: Chemical Resistant No
- Actuation Yes
- Color Option 1 Green
- Max Current Color (mA) 220
- Environmental Rating IP65
- Wireless No
- Power DC
- Lumens Color 3 13.0
- Supply Voltage 12-30 V dc
- Multi-Color Device Single Color On
- Power Source DC
- Animation Option 1 Solid On
- Pick-to-Light Function F2
- Feature: Audible No
- Pro-Editor Compatible (Discrete) No
- Activation Function Capacitive Touch
- Product Size (mm) 70
- Number of Input Pins/Conductors 8
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- IO Link No
- Housing Style Base Mount - Dome Window
- Color Technology Standard LED
- Color Option 2 Red
- Feature: Hazardous Area No
- Feature: Quick Disconnect No
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Output Response Time (ms) 50
- Max Op. Temperature (°C) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70APT2GRYF2 on Powermatic Associates is $216.00. Order now.
About the product

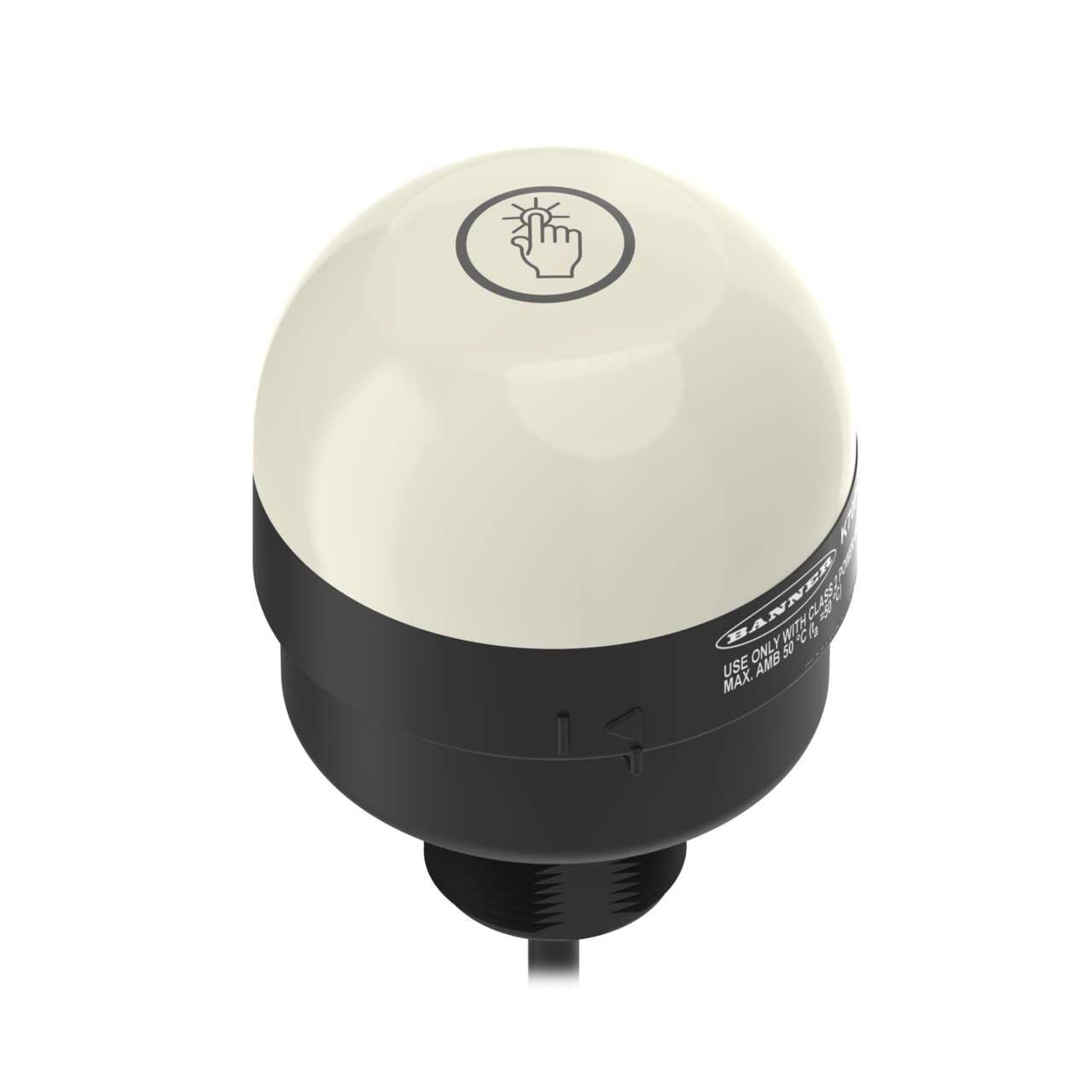

Banner Engineering K70APT2GRYF2, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination in a black housing. It features a dome window shape made from polycarbonate (PC) for both the diffused window and the base. This part is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal, and can be mounted on the surface, base, or pole flush with a 30mm hole. The diameter of the dome is 70mm / 2-3/4". It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and has an IP65 degree of protection. The operating mode includes a momentary job light (G/R/Y; Green or Red or Yellow) that is ON when one of the three job inputs is active, and touch activates the output only with a Normally Open (NO) touch output. The current consumption is 220mA. It also features 3 x digital inputs (12-30Vdc; PNP) for JOB color control and 1 x digital output (12-30Vdc; PNP) for touch.
