K70DXN2T2GRY Banner Pick-to-Light Sensors
Part#:K70DXN2T2GRY
Alt. Part#:96986
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
K70 Wireless Touch Sensor Gen 2, 2.4 GHz, Black Housing: 3-Color Indicator; Voltage: 12-30 V dc; Environmental Rating: IP65; Colors: Green Red Yellow; 2 m (6.5 ft) PVC Cable
Product Details
- Weight 217.72416 g
- Country Of Origin US
- Primary Housing Material Polycarbonate
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Output Type Communication Protocol
- Min Op. Temperature (°C) -40
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Power DC
- Color Option 2 Red
- Input Type Communication Protocol
- Lumens Color 3 13.0
- Physical Dimensions (LxWxH or DxH mm) 70.0 x 95.5
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 3
- Product Size (mm) 70
- Color Option 3 Yellow
- Max Input Response Time (ms) 180
- Button Operation Momentary
- Activation Function Capacitive Touch
- Color Technology Standard LED
- Color 3 - Wavelength/Color Temp/Coordinates 590 nm
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Wireless Yes
- Mounting Thread M30 x 1.5
- Animation Option 1 Solid On
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Power Source DC
- Lumens Color 1 45.0
- Operation Normally Open
- Actuation Yes
- Connection Cable
- Supply Voltage 12-30 V dc
- Wireless Network Node
- Housing Style Base Mount - Dome Window
- Color Option 1 Green
- Max Current Color (mA) 260
- Environmental Rating IP65
- Feature: Audible No
- Multi-Color Device Single Color On
- Feature: Hazardous Area No
- Modbus RTU No
- Wireless Radio Frequency 2.4 GHz
- Primary Housing Color Black
- IO Link No
- Feature: Chemical Resistant No
- Feature: Quick Disconnect No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of K70DXN2T2GRY on Powermatic Associates is $349.00. Order now.
About the product

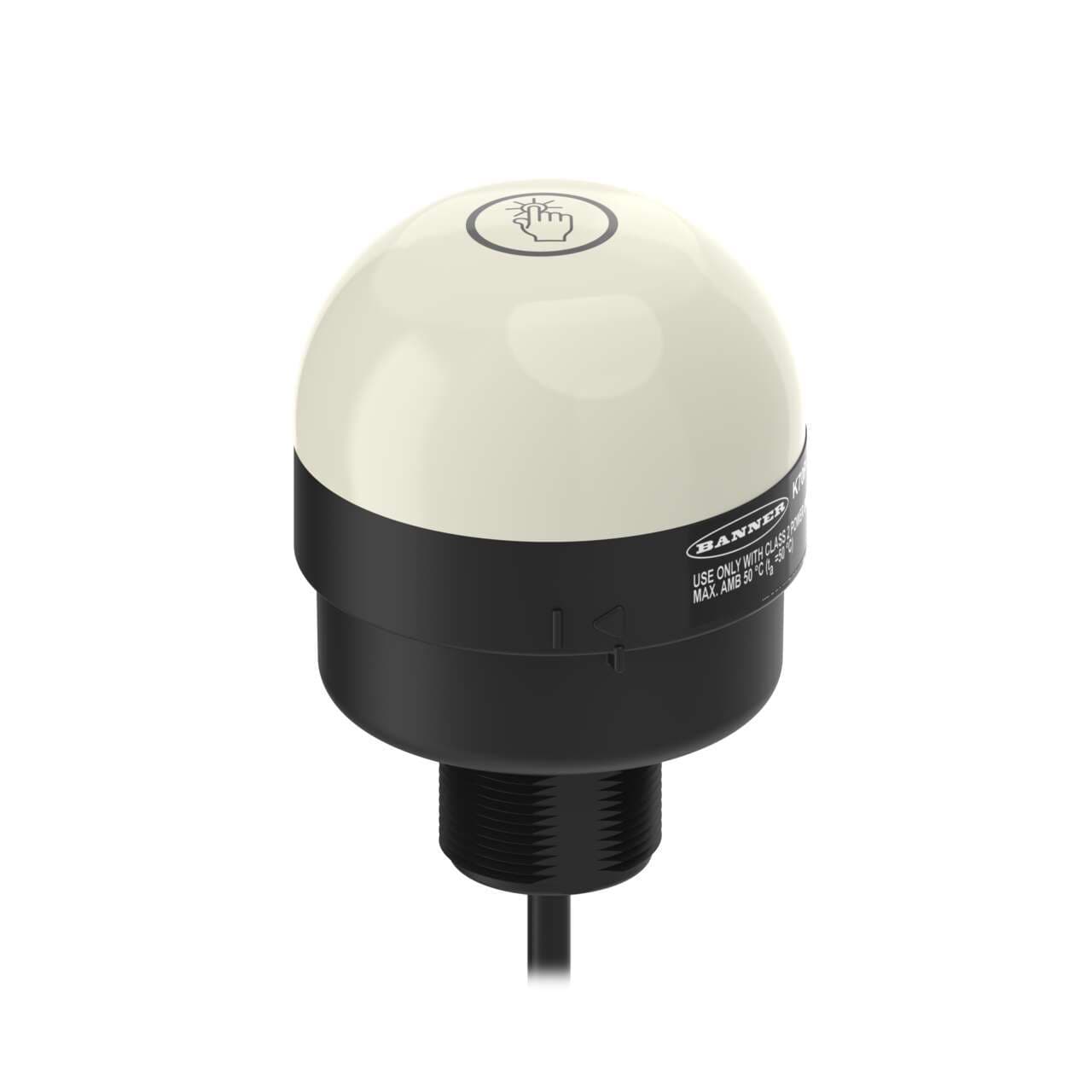

Banner Engineering K70DXN2T2GRY, part of the EZ-LIGHT series, is a capacitive touch-sensitive pick-to-light device designed with Gen.2 LED illumination. It features a black housing with a dome-shaped window made from diffused polycarbonate (PC) and a base also constructed from polycarbonate (PC). This part is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. It operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc nominal. The K70DXN2T2GRY can be mounted on a surface, base, or pole flush with a 30mm hole and has a diameter of 70mm or approximately 2-3/4 inches. It is designed to operate in ambient air temperatures ranging from -40°C to +50°C and is rated at IP65 for protection against dust and water ingress. The operating mode includes a momentary job light (G; Green) that remains ON when the input is active, and touch activates the output only with a Normally Open (NO) touch output. It has a current consumption of 220mA, one digital input (12-30Vdc; PNP) for JOB color control, and one digital output (12-30Vdc; PNP) for touch functionality.
