LEDBLA290XD6-PHQ Banner Vision Accessories
Part#:LEDBLA290XD6-PHQ
Alt. Part#:81803
Manufacturer:Banner
Category:Vision Accessories
Product Lifecycle:Active
Product description
LINEAR ARRAY BLUE ACRY DIFF 1 FT DIMMABLE ACT. HIGH
Product Details
- Weight 771.1064 g
- Country Of Origin US
- Window Material Diffuse Acrylic
- Primary Housing Material Anodized Aluminum
- Lens Focusing Angle (°)/Field of View 6.5
- Connection Type Integral QD
- Physical Dimensions (LxWxH or DxH mm) 332.6 x 59.4 x 32.6
- QD Type/Cable Length M12 (Euro) requires mating cordset
- Color Technology Standard LED
- Device Type Bar Light
- Housing Style Linear Strip
- Number of Input Pins/Conductors 5
- Power DC
- Max Current Color (mA) 1000
- Intensity Adjustment Potentiometer and Analog
- Supply Voltage 24 V DC
- Color Blue
- Max Op. Temperature (°C) 50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of LEDBLA290XD6-PHQ on Powermatic Associates is $1,076.00. Order now.
About the product

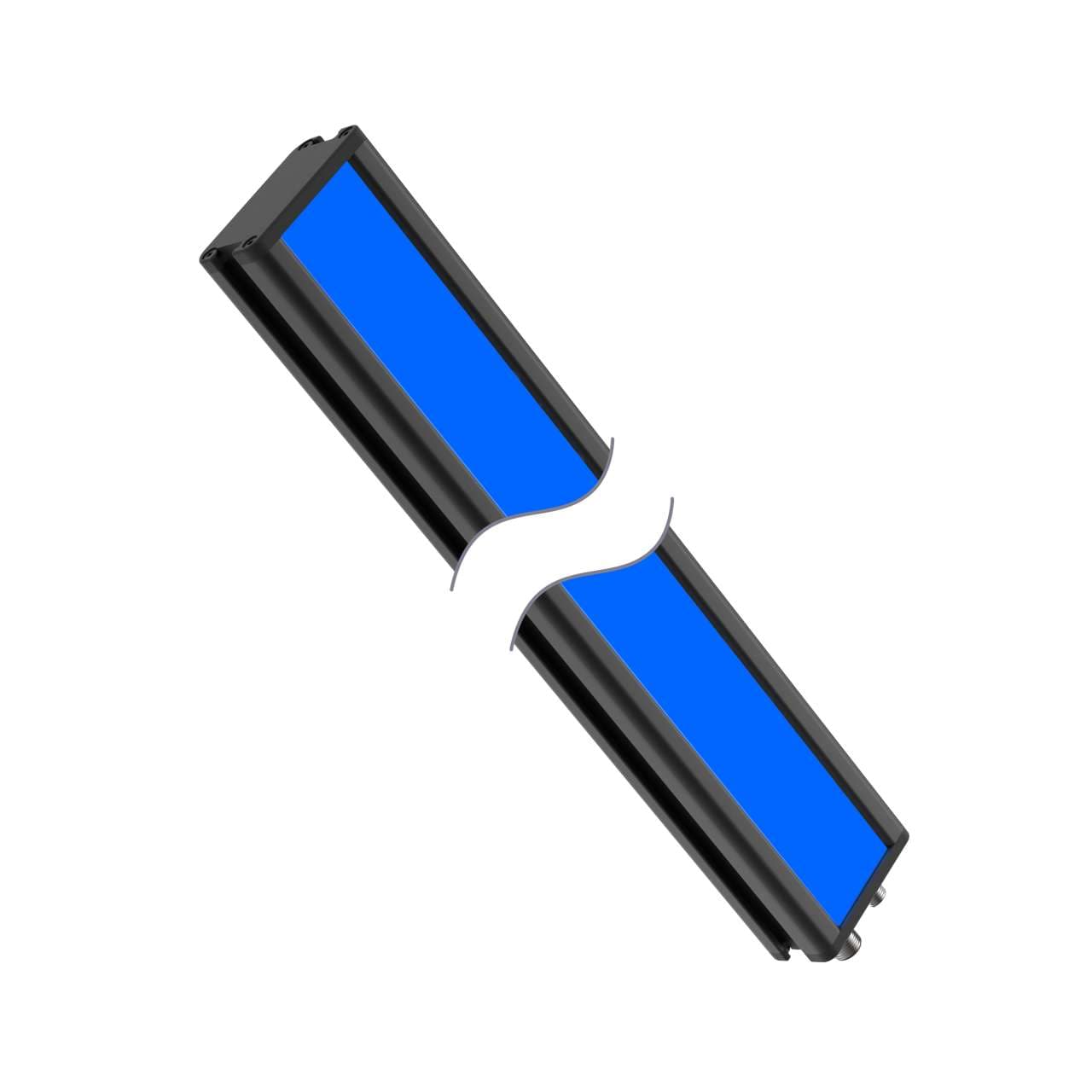

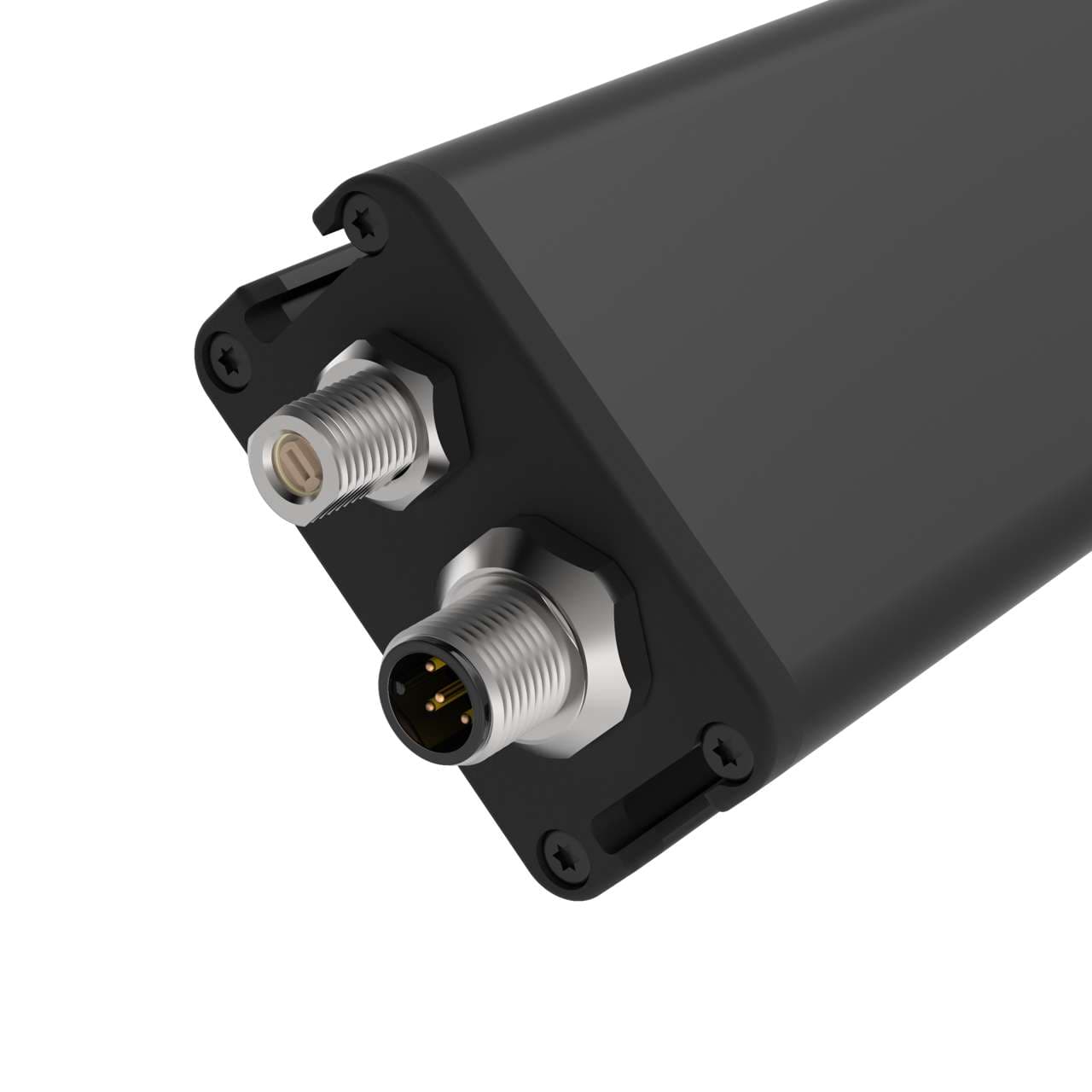

Banner Engineering LEDBLA290XD6-PHQ is an illumination unit designed for linear array illumination backlight applications. It features intensity adjustment capabilities, allowing for dimming via a potentiometer or analog input, and delivers high-intensity visible blue light. The unit measures 290mm in array length and is housed in a black anodized aluminum casing with a diffused acrylic window, shaped in a rectangular form. It comes pre-equipped with a 5-pin Euro-style M12 connector for connectivity. The LEDBLA290XD6-PHQ operates on a 24Vdc supply voltage and offers a degree of protection rated at IP50. It includes 1 x digital input (24Vdc; high-polarity) for strobe control and 1 x analog input (0-10Vdc) for intensity control.
