MQDC1-5100 Banner Cordsets

Name: MQDC1-5100
Brand: Banner
Price: 129 USD
Availability: BackOrder

Part#:MQDC1-5100

Alt. Part#:81082

Manufacturer:Banner

Category:Cordsets

Product Lifecycle:Active

Product description

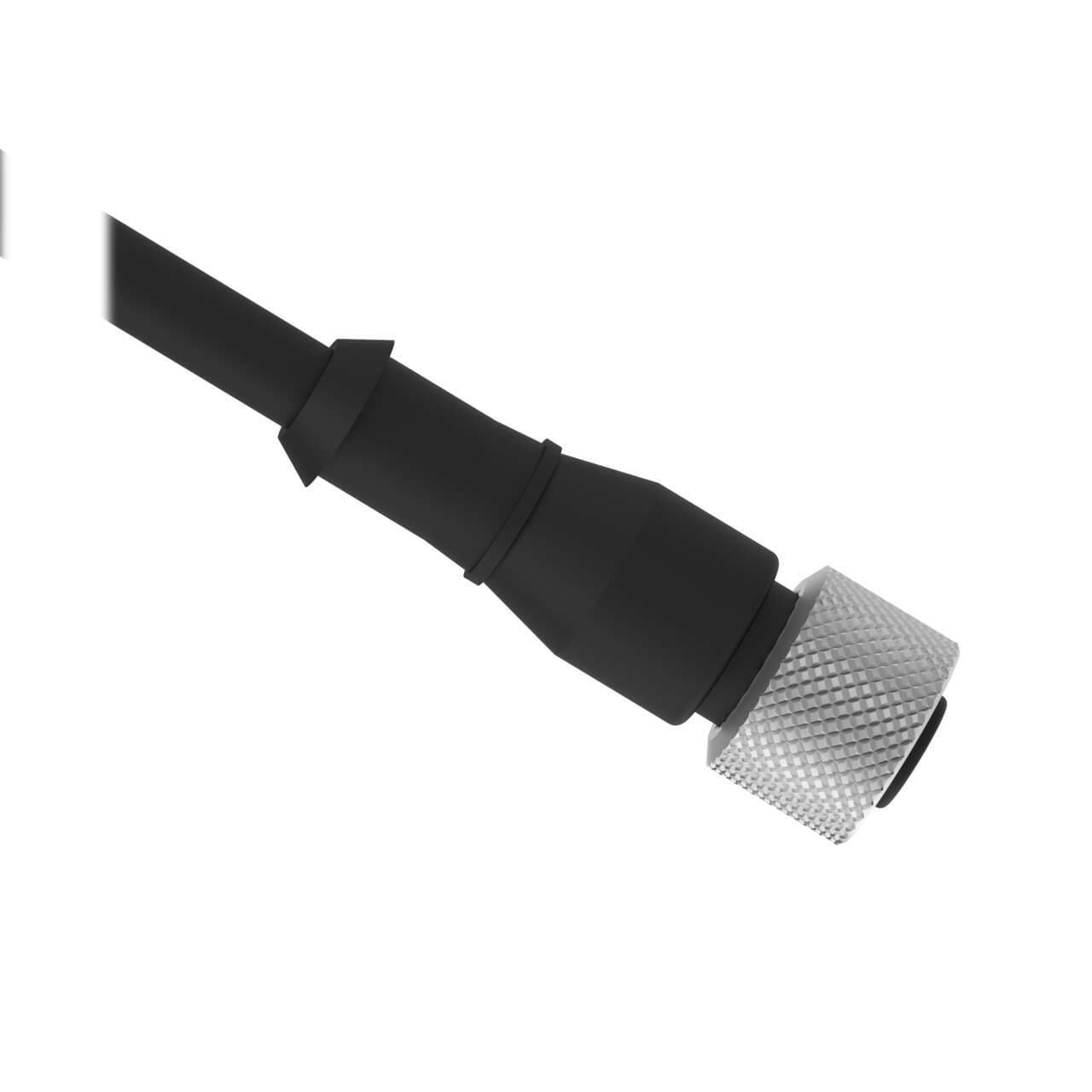

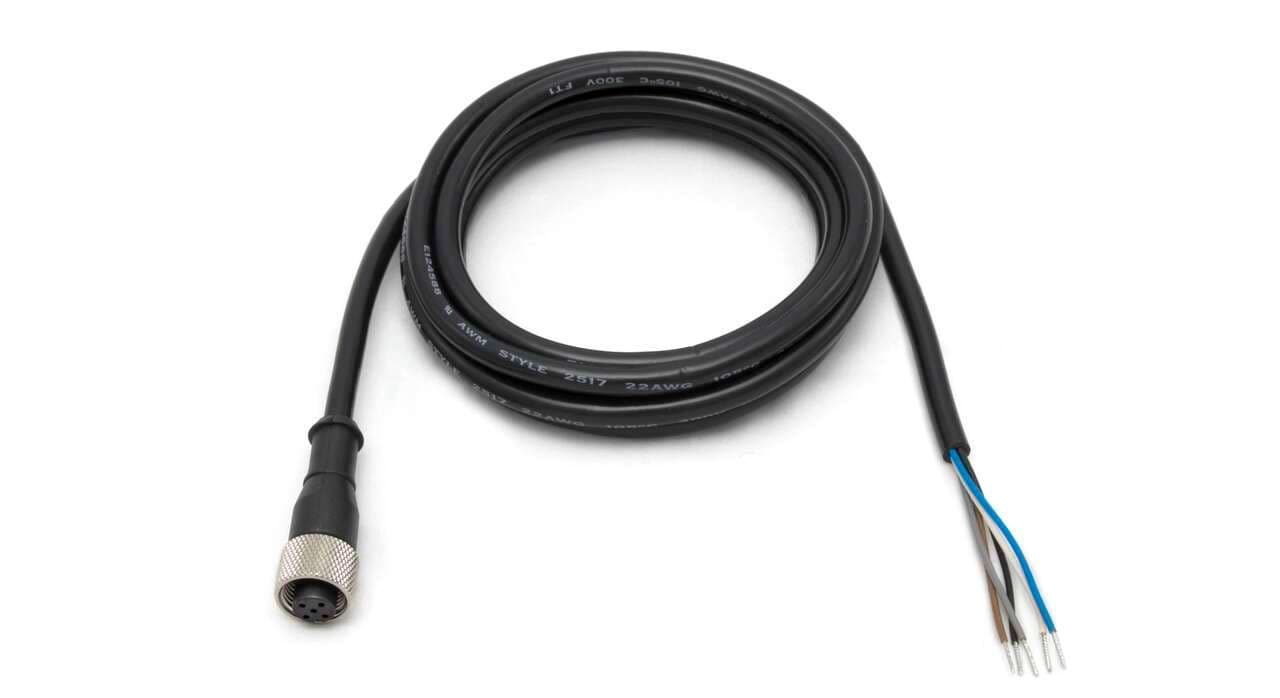

Cordset: Single Ended M12; 5-pin Straight Female; 31 m 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut

Product Details

Weight
1494.132048 g
Country Of Origin
US
Cable Jacket Color
Black
Voltage Rating (V)
250 V ac/dc
Coupling Material/Color
Nickel Plated Brass
Primary Orientation
Straight
Cordset Length (m)
31
Maximum Temp. (°C)
105
Number of Contacts
5
Primary Coupling Method
M12 Single Key
Feature: Hazardous Area
No
Connector Body Material/Color
PUR Black
Primary Connector Type
EURO
Oil/Grease Resistant
No
Number of Connectors
1
Current Rating (A)
4.0
Primary AWG
22
Cable Jacket Material
PVC
IP Rating
IP67
Secondary Connector Type
Flying Leads

Shield/No Shield

No Shield

Primary Number of Conductors

Trunk Length (m)

No Trunk

Primary Gender

Female

Outside Cable Diameter (mm)

5.6

Minimum Temp. (°C)

-40

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of MQDC1-5100 on Powermatic Associates is $129.00. Order now.

About the product

Banner Engineering MQDC1-5100 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a length of 100ft (30.5m). This model is equipped with a 5-pin Euro-style M12 female connector and bare end flying leads for connectivity. The connection nut is made from chrome-plated brass, ensuring durability. It operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The cable is black sheathed, and it is rated for a voltage of 250Vac.
