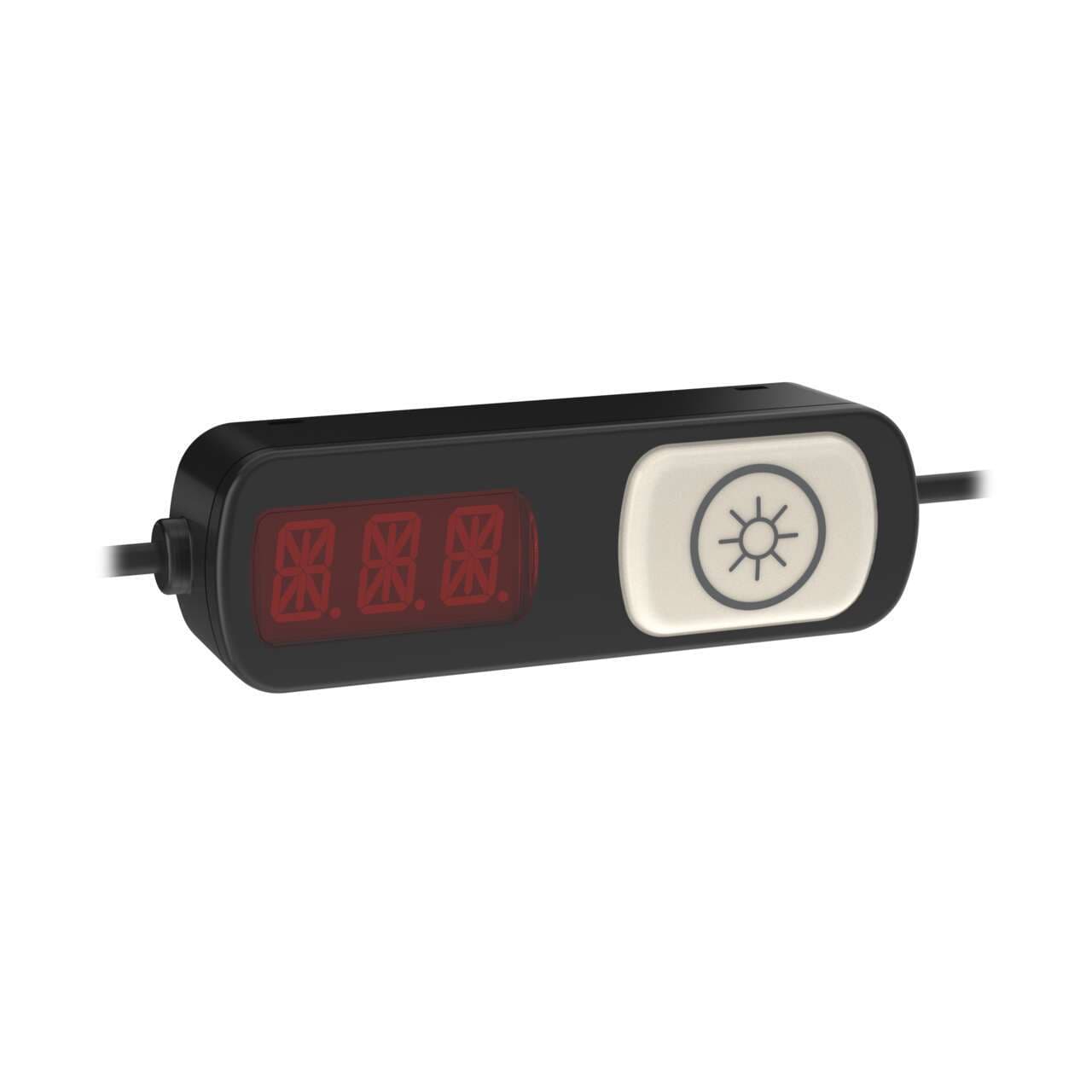

PTL110S-FF100TD3-QP150 Banner Pick-to-Light Sensors
Part#:PTL110S-FF100TD3-QP150
Alt. Part#:805482
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
PTL110 Node; Voltage: 10-30 V dc; Environmental Rating: IP54; 100 mm Fixed Field; Touch Sensor; 3-digit 14-segment LED Display; 150 mm (6 in) M12 PVC Pigtail QDs
Product Details
- Weight 12.700576 g
- Country Of Origin US
- Activation Function Capacitive Touch and Optical
- Product Size (mm) 110
- Acknowledge (Sense) Light Programmable
- Power DC
- Color Input Control Communication Protocol
- Indication Yes
- Animation Option 1 Modbus Controlled
- Sensing Mode (General) Fixed Field
- Power Source DC
- Mounting Thread No Thread
- Housing Style Flat Mount - Flat Window
- Primary Housing Material ABS
- Connection Pigtail QD
- Number of Input Pins/Conductors 4
- Mis-Pick Light Programmable
- Max Current Color (mA) 155
- Color Option 1 RGB
- Maximum Sensing Distance (mm) 100
- Number of Beams 1
- Max Op. Temperature (°C) 50
- Min Op. Temperature (°C) -40
- Feature: Audible No
- Modbus RTU Yes
- Wireless No
- Actuation Yes
- Number of Colors / Segments 14
- Color Technology RGB Configurable
- Quick Disconnect Type M12 (Euro)
- Pick-to-Light Function Programmable
- Supply Voltage 10-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 110.0 x 35.0 x 33.1
- Output Type Communication Protocol
- Environmental Rating IP54
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Color Black
- Feature: Hazardous Area No
- Primary Window Material Polycarbonate Diffused
- PICK-IQ (Modbus RTU) Yes
- IO Link No
- Job Light Programmable
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
- Multi-Color Device Single Color On
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PTL110S-FF100TD3-QP150 on Powermatic Associates is $266.00. Order now.
About the product
Banner Engineering PTL110S-FF100TD3-QP150 is a scalable versatile capacitive touch-sensitive pick-to-light node designed for surface or pipe mounting. It operates within an ambient air temperature range of -40°C to +50°C and features fixed field sensing with PICK IQ serial communication, compatible with RS-485 / Modbus RTU, and LED illumination. This part is pre-wired with two 6" / 15cm PVC shielded pigtails terminated with 5-pin M12 Euro-style QD connectors. It offers a degree of protection of IP54 and requires a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The rectangular-shaped body is made from an ABS housing with a polycarbonate indicator and an acrylic lens, in a black housing with a gray window. It has a 100mm sensing range and supports both momentary and latched operating modes, configurable via serial communication, with a current consumption of 155mA.
