PTL110S-T-QP150 Banner Pick-to-Light Sensors
Part#:PTL110S-T-QP150
Alt. Part#:805491
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
PTL110 Node; Voltage: 10-30 V dc; Environmental Rating: IP54; Touch Sensor; 150 mm (6 in) M12 PVC Pigtail QDs
Product Details
- Weight 123.830616 g
- Country Of Origin US
- Color Input Control Communication Protocol
- Max Current Color (mA) 155
- Environmental Rating IP54
- IO Link No
- Feature: Audible No
- Indication Yes
- Number of Colors / Segments 14
- Acknowledge (Sense) Light Programmable
- Primary Housing Color Black
- Activation Function Capacitive Touch
- Mis-Pick Light Programmable
- Physical Dimensions (LxWxH or DxH mm) 110.0 x 35.0 x 33.1
- PICK-IQ (Modbus RTU) Yes
- Multi-Color Device Single Color On
- Actuation Yes
- Color Technology RGB Configurable
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Mounting Thread No Thread
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 50
- Modbus RTU Yes
- Power Source DC
- Connection Pigtail QD
- Output Type Communication Protocol
- Min Op. Temperature (°C) -40
- Power DC
- Number of Input Pins/Conductors 4
- Feature: Chemical Resistant No
- Animation Option 1 Modbus Controlled
- Housing Style Flat Mount - Flat Window
- Color Option 1 RGB
- Pick-to-Light Function Programmable
- Feature: Hazardous Area No
- Job Light Programmable
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Primary Housing Material ABS
- Product Size (mm) 110
- Supply Voltage 10-30 V dc
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PTL110S-T-QP150 on Powermatic Associates is $186.00. Order now.
About the product

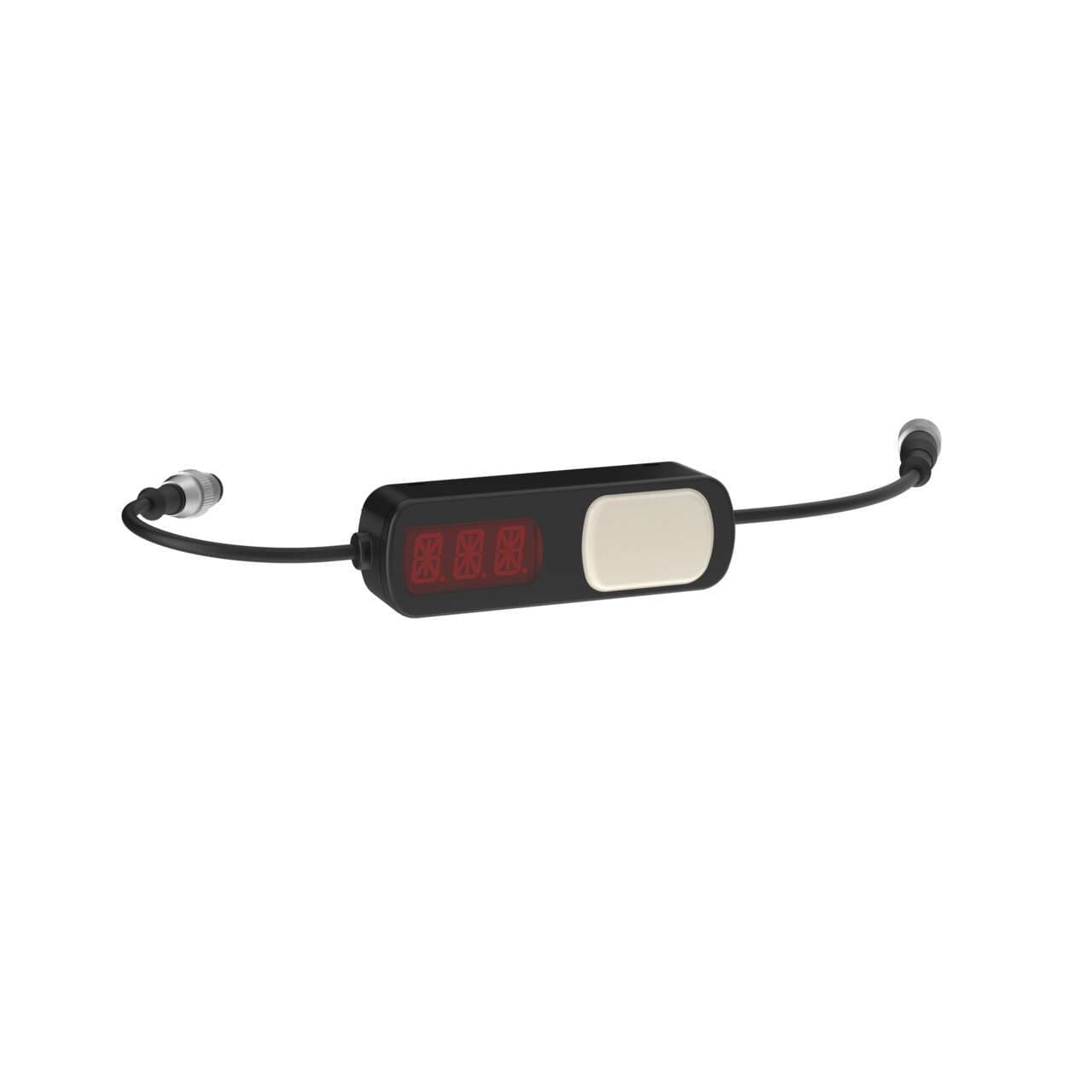

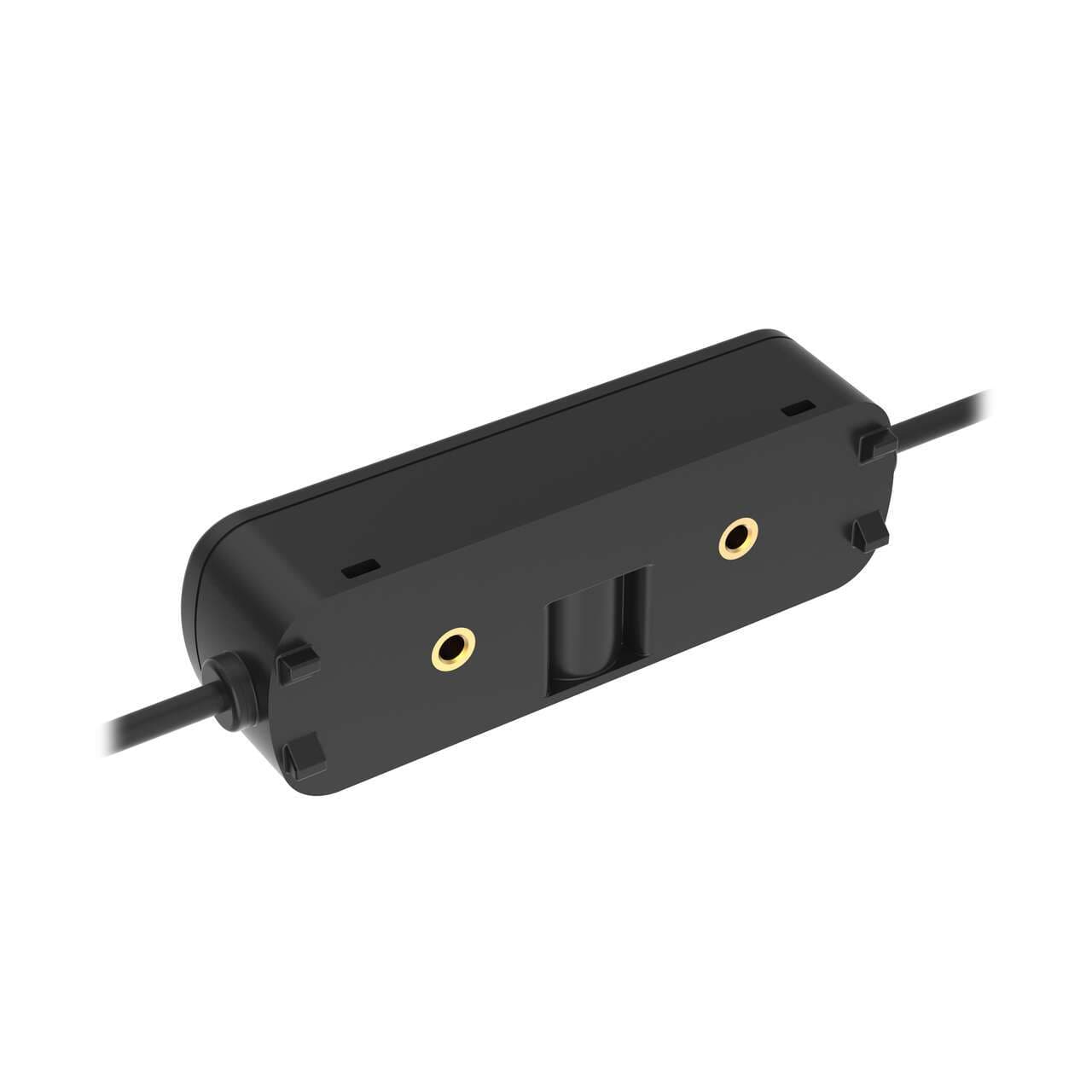

Banner Engineering PTL110S-T-QP150 is a pick-to-light sensor designed for scalable and versatile indication applications. It supports both surface and pipe mounting modes and operates within an ambient air temperature range of -40°C to +50°C. This part features PICK IQ serial communication, making it compatible with RS-485 and Modbus RTU for LED illumination control. It comes pre-wired with two 6-inch (15cm) PVC shielded pigtails terminated with 5-pin M12 Euro-style quick disconnect (QD) connectors. The PTL110S-T-QP150 offers an IP54 degree of protection and requires a supply voltage of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. Its rectangular-shaped body is made from an ABS housing with a polycarbonate indicator and an acrylic lens. The housing is black, and the window is gray. Operating modes are momentary or latched, configurable via serial communication, and it has a current consumption of 155mA.
