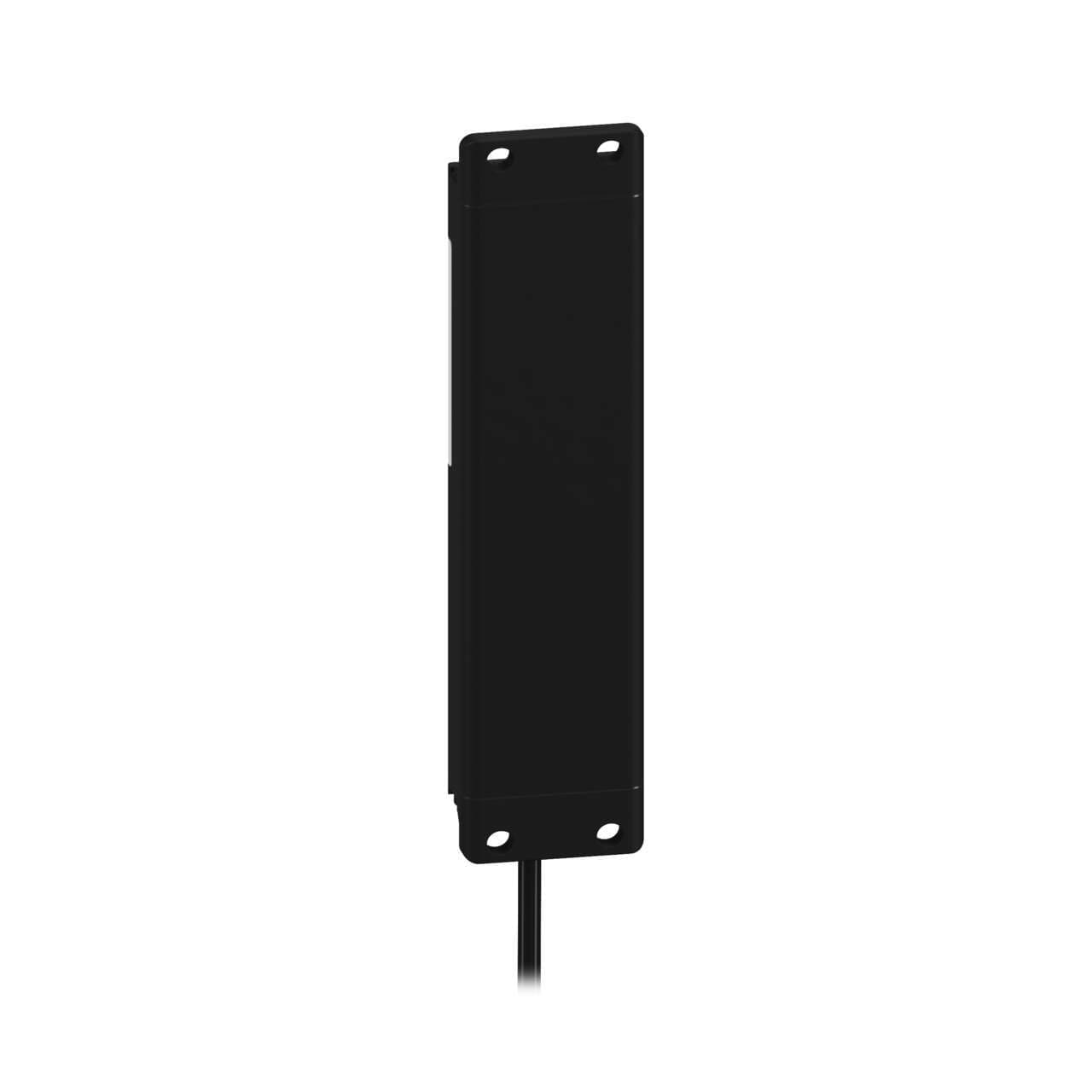

PVD100 W/30 Banner Pick-to-Light Sensors

PVD100 W/30 on Powermatic Associates
Banner
  • PVD100 W/30
  • PVD100 W/30

Part#:PVD100 W/30

Alt. Part#:75261

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 100 mm 4 channel; Range; up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 9 m (30 ft) Integral Cable

Product Details

  • Weight
    469.921312 g
  • Country Of Origin
    MX
  • Sensing Mode (Detailed)
    Diffuse/Non-Polarized
  • Actuation
    Yes
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Lumens Color 1
    12.0
  • Mis-Pick Light
    Red
  • Operation
    Normally Open/Normally Closed
  • Input Type
    Bimodal (PNP/NPN)
  • Environmental Rating
    IP62
  • Beam Spacing (mm)
    28.6
  • Activation Function
    Optical
  • Color Option 1
    Green
  • Output Type
    Bipolar (NPN or PNP - user selectable)
  • Number of Beams
    4
  • Sensing Resolution (mm)
    51
  • Sensing Mode (General)
    Retroreflective or Proximity
  • Animation Option 1
    Solid On
  • Color Option 2
    Red
  • Maximum Sensing Distance (mm)
    400/2000
  • Max Op. Temperature (°C)
    50
  • Job Light
    Green
  • Primary Housing Material
    Aluminum
  • Lumens Color 2
    2.5
  • Max Input Response Time (ms)
    400
  • Primary Housing Color
    Black
  • Pro-Editor Compatible (Discrete)
    No
  • Housing Style
    Flat Mount - Array
  • Number of Colors / Segments
    2
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Sensing Array Length (mm)
    100
  • Primary Window Material
    Acrylic Clear
  • Modbus RTU
    No
  • Power Source
    DC
  • Product Size (mm)
    Other
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Supply Voltage
    12-30 V dc
  • NEMA Type and UL Type Rating
    NEMA 2
  • Power
    DC
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    88
  • Array Length (mm)
    100.0
  • Button Operation
    Momentary
  • Wireless
    No
  • Mounting Thread
    No Thread
  • Feature: Audible
    No
  • Connection
    Cable
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Feature: Chemical Resistant
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Number of Input Pins/Conductors
    5
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100 W/30 on Powermatic Associates is $367.00. Order now.

About the product

Banner Engineering PVD100 W/30 is a photo-electric array sensor designed for pallet detection with a diffuse/retro-reflective sensing mode that can be custom set. It operates within an ambient air temperature of +50°C and has a net height of 15 mm. This sensor is pre-wired with a 2m / 6.5ft cable that terminates with bare end flying leads. It features a 100mm array length and offers a degree of protection rated at IP62 NEMA 2. The supply voltage required ranges from 12Vdc to 30Vdc, with a nominal voltage of 24Vdc. Its rectangular shape is constructed from an aluminium housing with an acrylic clear window, and it measures 30 mm in width and 138 mm in depth. The sensing distance is up to 2m in retro-reflective mode and 400mm in diffuse mode. The light color emitted is green and red, with wavelengths of 525 nm and 625 nm respectively. It includes 1 x digital output (PNP/NPN transistor) and supports operating modes of NO (Normally Open) and NC (Normally Closed).
