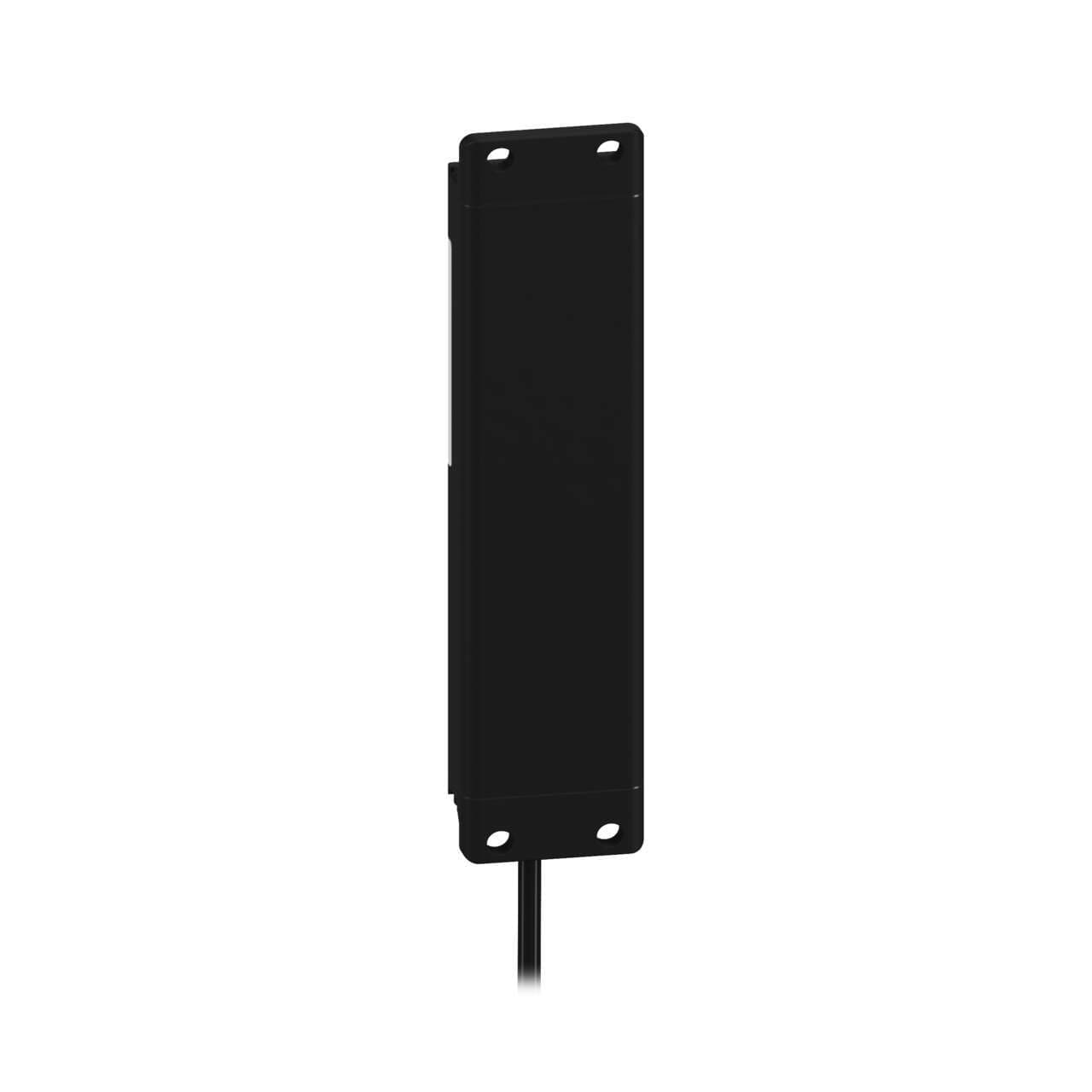

PVD100 Banner Pick-to-Light Sensors

PVD100 on Powermatic Associates
Banner
  • PVD100
  • PVD100

Part#:PVD100

Alt. Part#:70988

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

PVD Series: Parts Verification; 100 mm 4 channel; Range; up to 2 m; Input: 12-30 V dc; Outputs: Selectable NPN/PNP; 2 m (6.5 ft) Integral Cable

Product Details

  • Weight
    254.01152 g
  • Country Of Origin
    MX
  • Primary brand
    Banner Engineering
  • Wavelength
    630 nm
  • Material
    Acrylic Clear (window) Aluminum (housing)
  • Order code / Manufacturer SKU
    70988
  • Maximum temperature
    50 °C
  • Sensing distance
    2m / 2000 mm
  • Operating mode
    NO (Normally Open) NC (Normally Closed)
  • Compliant with standard(s)
    CE cULus Listed
  • Current consumption
    88mA / 0.088 A
  • Distance
    (beam spacing) 28.6mm
  • Supply voltage (DC)
    12-30Vdc (12Vdc-24Vdc nom.)
  • Connection type
    Pre-wired bare end flying leads
  • Digital outputs
    1 x digital output (PNP/NPN transistor)
  • Technology used in component
    LED
  • Light Color
    Green Red
  • Length (mm)
    (array) 100 mm
  • Product series / family name
    PVD
  • Frame color
    Black
  • Main function
    Sensor (Array)
  • Functions
    Flat-mount array optical sensor for error-proofing of bin handpicking operations - diffuse or retroreflective sensing
  • Mounting mode
    Surface Pole
  • Degree of protection
    IP62 NEMA 2
  • Ambient air temperature for operation
    0...+50 °C
  • Supply voltage
    (DC) 12-30 V
  • Length (m)
    (cable) 2 m
  • Visual position indicator
    green LED (power ON) yellow LED (output state)
  • Net Height (mm)
    (sensing height) 6.5" / 100 mm
  • Primary Housing Material
    Aluminum
  • Number of Colors / Segments
    2
  • Color Technology
    Standard LED
  • Mis-Pick Light
    Red
  • Physical Dimensions (LxWxH or DxH mm)
    137.8 x 30.0 x 15.0
  • Activation Function
    Optical
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 2
    2.5
  • Output Type
    Bipolar (NPN or PNP - user selectable)
  • Actuation
    Yes
  • Color Option 1
    Green
  • Supply Voltage
    12-30 V dc
  • Environmental Rating
    IP62
  • Feature: Chemical Resistant
    No
  • Array Length (mm)
    100.0
  • Feature: Audible
    No
  • Sensing Mode (Detailed)
    Diffuse/Non-Polarized
  • Operation
    Normally Open/Normally Closed
  • Number of Beams
    4
  • Sensing Resolution (mm)
    51
  • Sensing Mode (General)
    Retroreflective or Proximity
  • Lumens Color 1
    12.0
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Input Response Time (ms)
    400
  • Primary Housing Color
    Black
  • Job Light
    Green
  • Power Source
    DC
  • Connection
    Cable
  • Color Option 2
    Red
  • Sensing Array Length (mm)
    100
  • Button Operation
    Momentary
  • Power
    DC
  • Product Size (mm)
    Other
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Input Type
    Bimodal (PNP/NPN)
  • Max Op. Relative Humidity Non-Condensing (%)
    90% @ 50°C
  • Cable Length (m)
    0.15
  • Animation Option 1
    Solid On
  • Number of Input Pins/Conductors
    5
  • Beam Spacing (mm)
    28.6
  • Feature: Hazardous Area
    No
  • Max Current Color (mA)
    88
  • Maximum Sensing Distance (mm)
    400/2000
  • Max Op. Temperature (°C)
    50
  • Housing Style
    Flat Mount - Array
  • Pro-Editor Compatible (Discrete)
    No
  • Mounting Thread
    No Thread
  • Modbus RTU
    No
  • Primary Window Material
    Acrylic Clear
  • Wireless
    No
  • NEMA Type and UL Type Rating
    NEMA 2
  • IO Link
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PVD100 on Powermatic Associates is $350.00. Order now.

About the product

Banner Engineering PVD100 is a photo-electric array sensor designed for diffuse/retro-reflective sensing mode modified for automotive applications. It operates within an ambient air temperature of +50 °C and features a net height of 15 mm, a net width of 30 mm, and a net depth of 138 mm, with an array length of 100mm. The sensor is housed in aluminum with an acrylic clear window and is pre-wired with a 6" / 150mm pigtail terminated with a 5-pin M12 connector. It offers a degree of protection rated at IP62 NEMA 2 and operates on a supply voltage of 12Vdc-30Vdc (24Vdc nom.). The PVD100 has a rectangular shape and provides a sensing distance of 2m in retro-reflective mode and 400mm in diffuse mode. It emits light in green and red colors, with wavelengths of 525 nm and 625 nm, respectively. The sensor supports both NO (Normally Open) and NC (Normally Closed) operating modes and includes 1 x digital output (PNP/NPN transistor).
