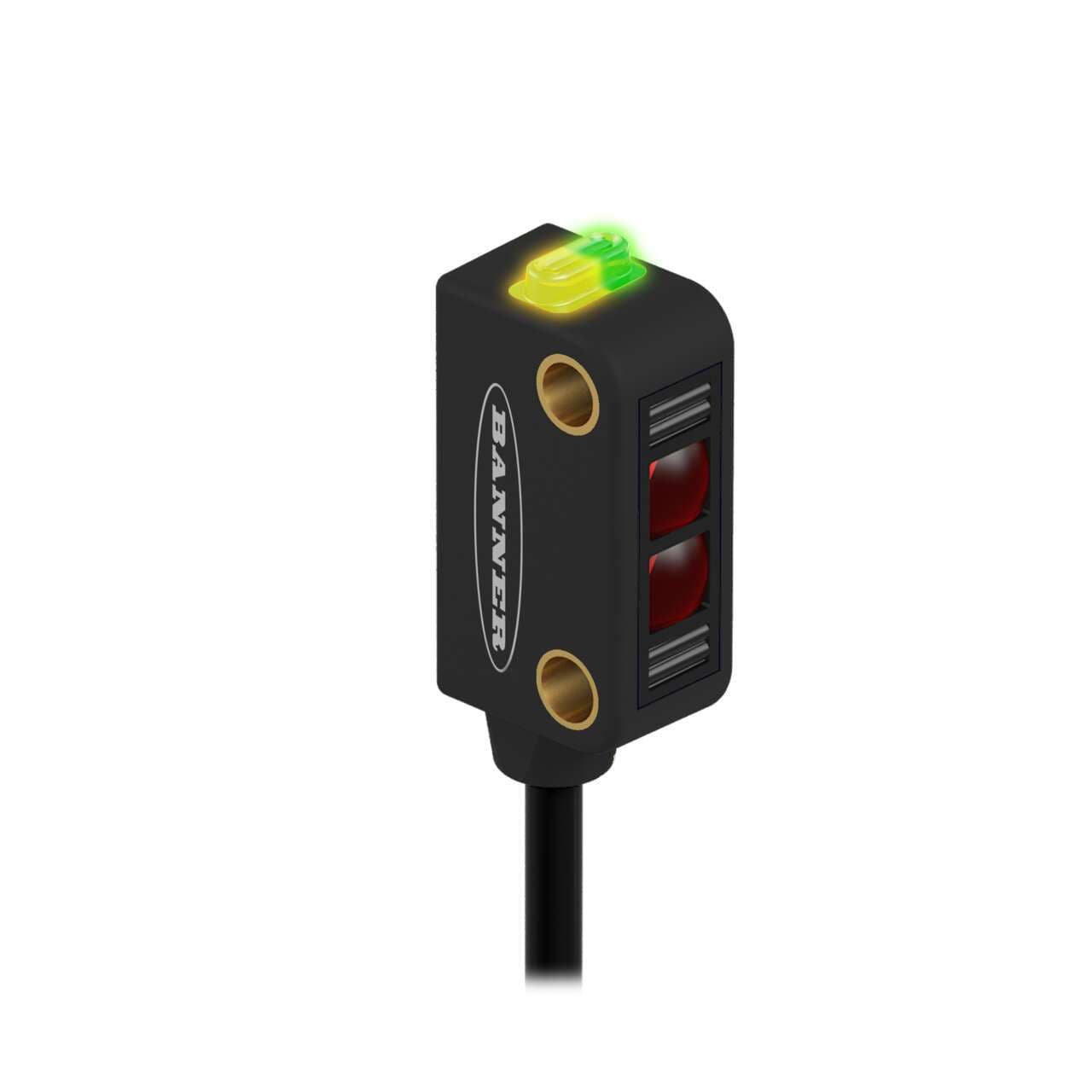

Q12AN6FF15Q3 Banner Proximity Sensors
Part#:Q12AN6FF15Q3
Alt. Part#:77099
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q12 AN6FF15Q3 3-PIN M8 6 in THD L.O. NPN
Product Details
- Weight 22.6796 g
- Country Of Origin MX
- Design background suppression system
- Shape Rectangular
- Main function Sensor (Photo-electric)
- Sensing distance 15mm
- Response time 0.7ms / 0.0007 s
- Product series / family name WORLD-BEAM series
- Functions Fixed-field photo-electric sensor green LED (power ON) yellow LED (signal)
- Wavelength 640 nm
- Ambient air temperature for operation -20...+55 °C
- Primary brand Banner Engineering
- Sub-range name Q12 series
- Compliant with standard(s) cURus CE
- Material thermoplastic housing Polycarbonate lns.
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Light Color Visible red
- Operating mode Light-ON
- Degree of protection IP67
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 3-pin Pico-style M8 connector
- Digital outputs 1 x digital output (NPN transistor)
- Order code / Manufacturer SKU 77099
- Cable Length (m) 0.15
- Quick Disconnect Type M8 (Pico)
- Sensing Beam Visible Red LED
- Outputs NPN
- Special Feature: Water Detection No
- Indicator LEDs
- Min Op. Temp. (°C) -20
- Power Supply/Supply Voltage 10-30 V dc
- Barrel Diameter (mm) N/A
- Feature: Hazardous Area No
- Housing Style Rectangular
- Max Sensing Distance (mm) 15
- Repeatability (µs) 175
- Number of Pins 3
- Power DC
- Input/Output Discrete
- Sensing Mode (General) Proximity
- Connection Pigtail QD
- Sensing Beam Wavelength 640
- Special Feature: Remote Teach No
- Small Visible Spot LED
- Delay at Power-up (ms) 120
- Max Op. Relative Humidity [%] 95% @ 50°C
- Opposed Mode Emitter/Receiver N/A
- Feature: Audible No
- Primary Housing Material Thermoplastic
- Operation Light Operate
- Adjustments N/A
- Feature: Encapsulated No
- Sensing Mode (Detailed) Background Suppression (Fixed)
- Output response time (ms) 0.85 ON/OFF
- Special Feature: Intrinsically Safe No
- Lens Material Polycarbonate
- Max Op. Temp. (°C) 55
- IP Rating IP67
- Feature: Timing (Hold/Delay) No
- IO Link No
- Feature: Chemical Resistant No
- DeviceNet No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12AN6FF15Q3 on Powermatic Associates is $112.00. Order now.
About the product
Banner Engineering Q12AN6FF15Q3 is a fixed-field photo-electric sensor designed with a background suppression system. It operates within an ambient air temperature range of -20 to +55 °C and is housed in a thermoplastic with a polycarbonate lens. This sensor is pre-wired with a 6" / 150mm pigtail terminated with a 3-pin Pico-style M8 connector, ensuring easy integration. Part of the Q12 series, it offers a degree of protection rated at IP67, making it suitable for various industrial environments. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. It features a rectangular shape and is capable of sensing at a distance of 15mm. The Q12AN6FF15Q3 emits visible red light with a wavelength of 640 nm and operates in a Light-ON mode. It includes 1 x digital output (NPN transistor) and boasts a quick response time of 0.7ms / 0.0007 s.
