Q12VP6FF15Q5 Banner Proximity Sensors

Q12VP6FF15Q5 on Powermatic Associates
Banner

Part#:Q12VP6FF15Q5

Alt. Part#:96949

Manufacturer:Banner

Category:Proximity Sensors

Product Lifecycle:Active

Product description

WORLD-BEAM Q12 Series: Fixed-Field; Range: 15 mm Cutoff; Input: 10-30 V dc; Output: LO (Light Operate); PNP complementary; 150 mm (6 in) 4-pin M12 Pigtail QD

Product Details

  • Weight
    22.6796 g
  • Country Of Origin
    MX
  • Feature: Audible
    No
  • IO Link
    No
  • Feature: Hazardous Area
    No
  • Feature: Encapsulated
    No
  • Feature: Timing (Hold/Delay)
    No
  • Lens Material
    Polycarbonate
  • Opposed Mode Emitter/Receiver
    N/A
  • IP Rating
    IP67
  • Delay at Power-up (ms)
    120
  • Indicator
    LEDs
  • Number of Pins
    4
  • Barrel Diameter (mm)
    N/A
  • Repeatability (µs)
    175
  • Special Feature: Remote Teach
    No
  • Operation
    Light Operate
  • Max Op. Temp. (°C)
    55
  • Special Feature: Intrinsically Safe
    No
  • Output response time (ms)
    0.85 ON/OFF
  • Quick Disconnect Type
    M12 (Euro)
  • Power Supply/Supply Voltage
    10-30 V dc
  • Min Op. Temp. (°C)
    -20
  • Connection
    Pigtail QD
  • Primary Housing Material
    Thermoplastic
  • Housing Style
    Rectangular
  • Sensing Beam
    Visible Red LED
  • Outputs
    PNP
  • Sensing Mode (Detailed)
    Background Suppression (Fixed)
  • Input/Output
    Discrete
  • Small Visible Spot
    LED
  • DeviceNet
    No
  • Feature: Chemical Resistant
    No
  • Adjustments
    N/A
  • Max Op. Relative Humidity [%]
    95% @ 50°C
  • Special Feature: Water Detection
    No
  • Sensing Beam Wavelength
    640
  • Sensing Mode (General)
    Proximity
  • Max Sensing Distance (mm)
    15
  • Power
    DC

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q12VP6FF15Q5 on Powermatic Associates is $129.00. Order now.

About the product

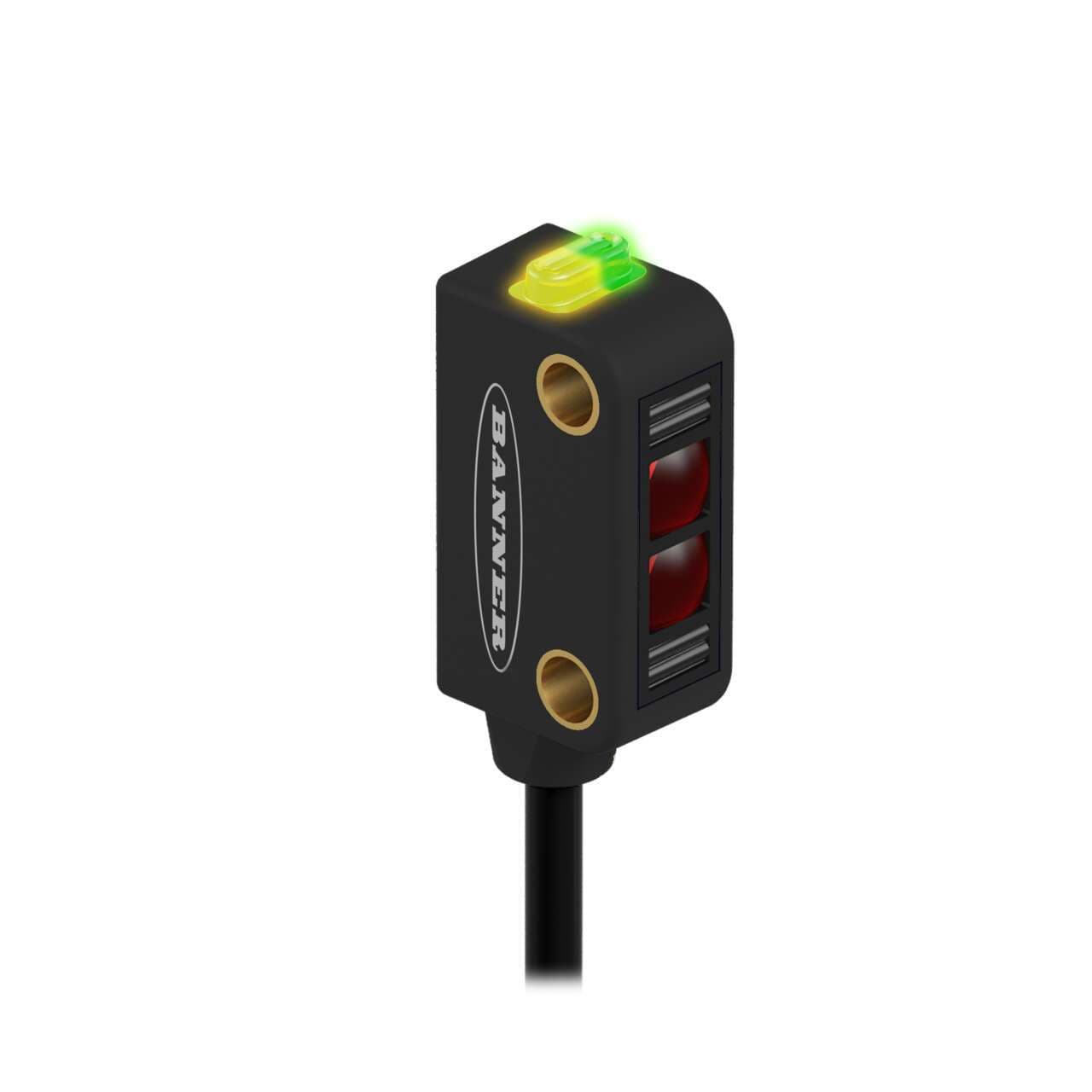

Banner Engineering Q12VP6FF15Q5 is a fixed-field photo-electric sensor designed for precise sensing tasks. It operates within an ambient air temperature range of -20 to +55 °C and features a background suppression system for enhanced performance. This sensor is equipped with a pre-wired 6-inch (150mm) pigtail that terminates with a 4-pin Euro-style M12 connector, ensuring easy and secure connections. Part of the Q12 series, it offers a degree of protection rated at IP67, making it suitable for challenging environments. The sensor operates on a supply voltage range of 10Vdc to 30Vdc, with nominal voltages of 12Vdc and 24Vdc. Its rectangular shape is constructed from a thermoplastic housing with a polycarbonate lens, ensuring durability. The sensing distance is set at 15mm, utilizing visible red light with a wavelength of 640 nm in a Light-ON operating mode. It also features a single digital output (PNP transistor) with a rapid response time of 0.7ms (0.0007 seconds).
