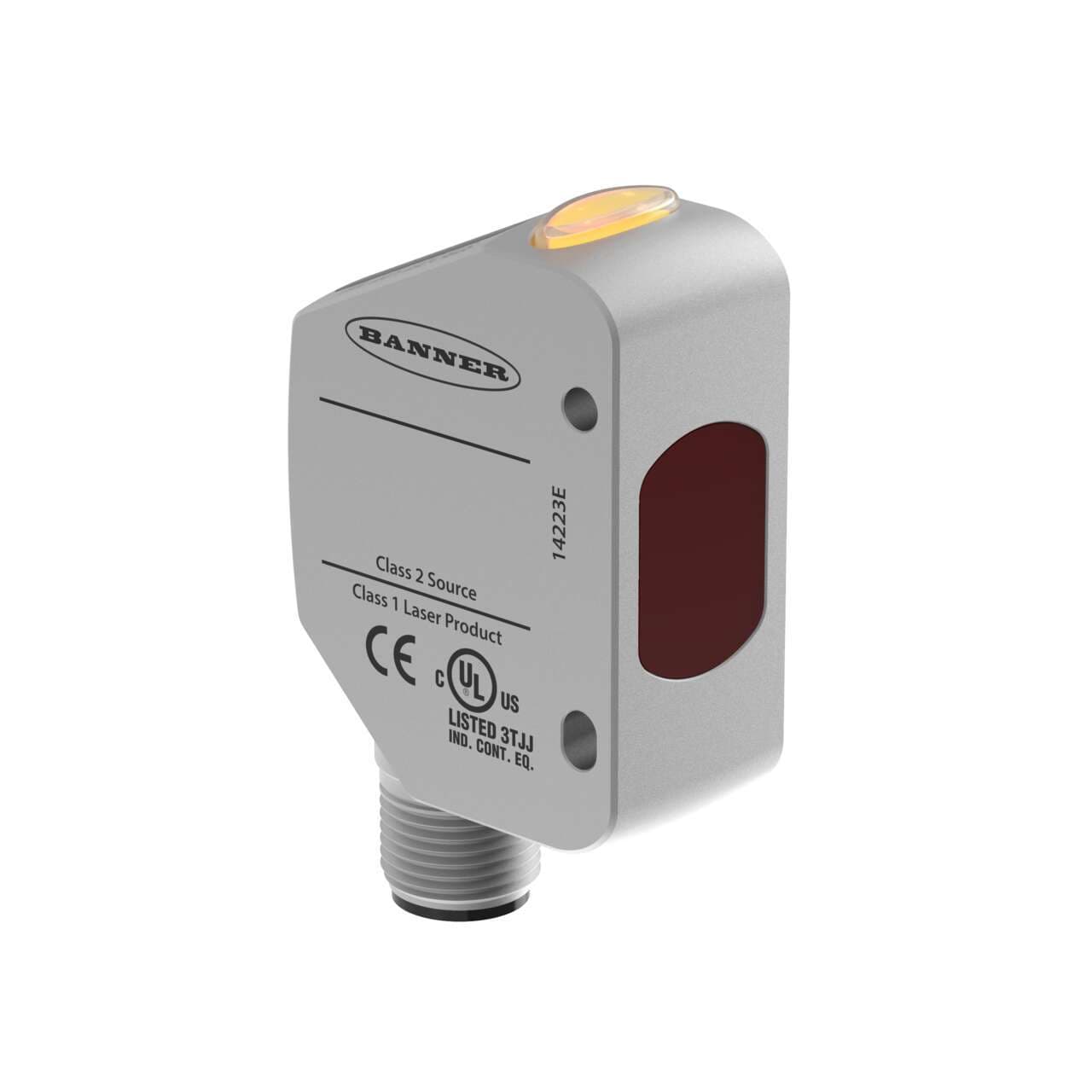

Q4XFILAF110-Q8 Banner Proximity Sensors

Product Details

• Weight
  136.0776 g
• Country Of Origin
  US
• Supply voltage (DC)
  12Vdc-30Vdc (24Vdc nom.)
• Design
  background / foreground suppression system
• Analog outputs
  1 x analog output (4-20mA)
• Primary brand
  Banner Engineering
• Display
  LED 4 digits display
• Shape
  Rectangular
• Mounting mode
  Flush face housing
• Degree of protection
  IP67 IP68 IP69K
• Functions
  Class 1 Laser adjustable-field photo-electric sensor/transmitter TEACH mode
• Sensing distance
  35...110mm
• Material
  Stainless steel housing Acrylic LED window
• Equivalent to
  Q4XFILAF110Q8
• Product series / family name
  Q series
• Light Color
  Visible class 1 red Laser
• Thread size
  M18
• Ambient air temperature for operation
  -10...+50 °C
• Compliant with standard(s)
  CE
• Main function
  Sensor (Photo-electric)
Sub-range name
Q4X
Wavelength
655 nm
Connection type
Pre-equipped with 5-pin Euro-style M12 connector
Protection functions
Overload Short-circuit
Order code / Manufacturer SKU
97542
Chemical resistance
chemical-resistant
Power Supply
12-30 V dc
Min Operating Temperature (°C)
-10
Max Ambient Light (Lux)
5000
PROFINET
No
Primary Housing Material
Stainless Steel
Power
DC
Mechanical Shock
MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
Warm-up Time (minutes)
10
Feature: Remote Teach
Yes
RS-232
No
PC Configurable
No
Connection
Integral QD
Max Measurement Range
>100 mm - <=500 mm
Indicator
Display; LED(s)
Number of Pins
5
Window Material
Acrylic
Supply Protection Circuitry
Protected against reverse polarity and transient overvoltages
Common Ethernet Protocol
No
Profibus
No
Sensing Mode (Detailed)
Background/Foreground Suppression
Input/Output
Analog
Delay at Power-up (ms)
750
Max Operating Temperature (°C)
50
Alarm Output (mA)
100
IO Link
No
Analog Resolution/Discrete Repeatability
0.15
Temperature Effect (mm/°C)
+/- 0.05 mm/°C
Output Protection
Protected against continuous overload and short circuit
Spot Size (@ Reference Distance)
1.8 mm x 0.7 mm @ 100 mm
RS-485
No
Sensing Beam
Visible Red Laser
Quick Disconnect Type
M12 (Euro)
Vibration
MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
Max Op. Relative Humidity Non-Condensing (%)
95 at 55°C
Minimum Window Size (mm)
2
Feature: Chemical Resistant
Yes
1-wire Serial Interface
No
Sensing Mode (General)
Proximity
Max Sensing Distance (mm)
110
Minimum Sensing Distance (mm)
35
RS-422
No
Housing Style
Rectangular
Laser Classification
Class 1
Adjustments
Push Button; Remote Teach
IP Rating
IP67; IP68; IP69
Analog Linearity (mm)
+/- 0.25 mm from 25 to 45 mm, 1.0 mm at 100 mm
Feature: Timing (Hold/Delay)
No
SSI
No
Device Type
Sensor
Analog Output Configuration
4-20 mA
Sensing Beam Wavelength (nm)
655
Storage Temperature (°C)
-25 to 75
Laser Control
Yes
Feature: Ecolab Certified
Yes
Wireless
No
Feature: Washdown Rated
Yes
Analog Current Output Rating
1 kΩ max @24 V dc, max load resistance = [(Vcc-4.5 V)/0.02 A] Ω
Minimum Response Time (ms)
0.5
Power/Current Consumption (exclusive of load)
< 675 mW
