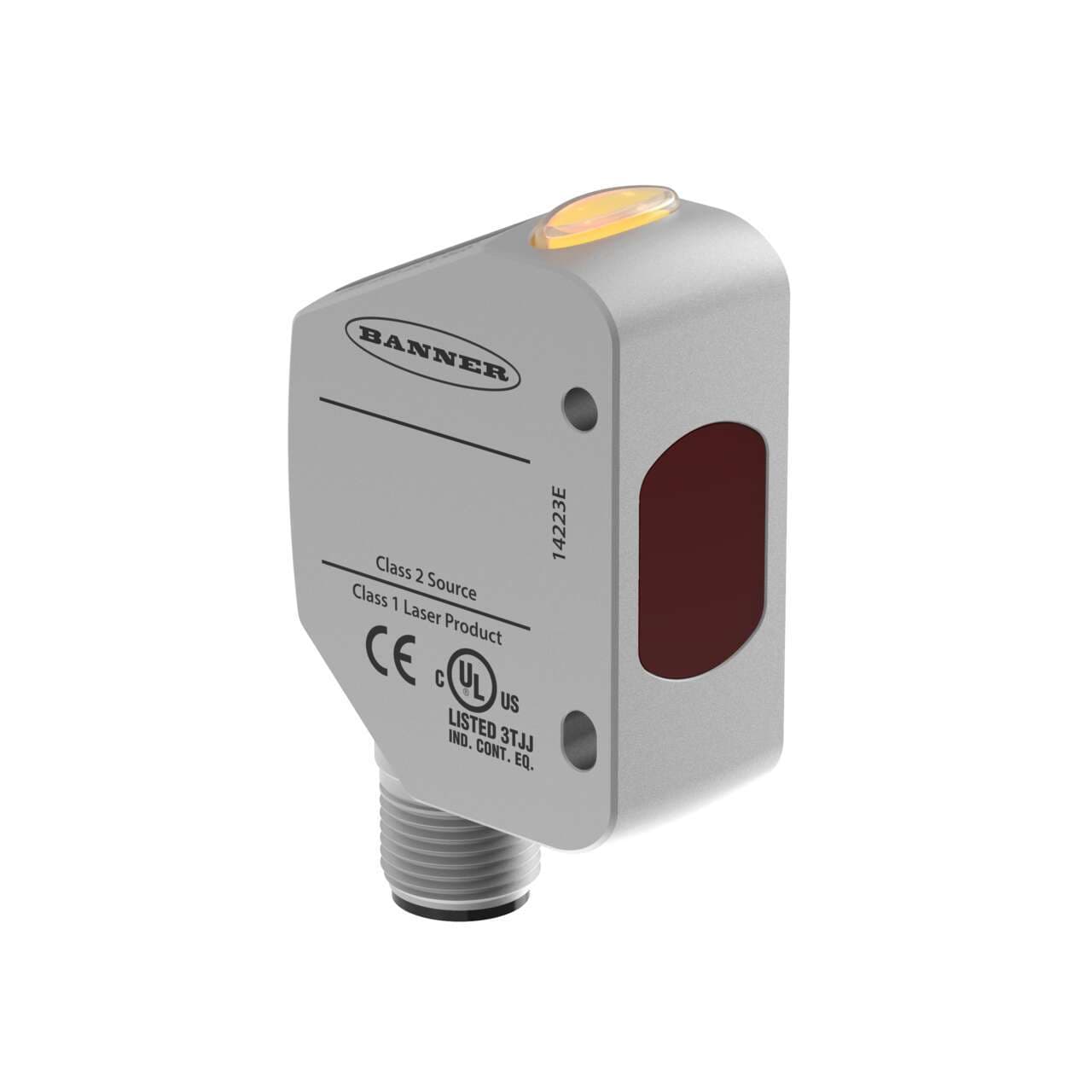

Q4XFPCOD310-Q8 Banner Proximity Sensors
Part#:Q4XFPCOD310-Q8
Alt. Part#:97544
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q4X Series: Clear Object; Range: 310 mm; Input: 10-30 V dc; Outputs: 1 PNP; 4-pin M12 Integral QD; Flush Mount Housing
Product Details
- Weight 136.0776 g
- Country Of Origin US
- Device Type Sensor
- Power Supply 10-30 V dc
- Max Discrete (Switched) Output (mA) 100
- Alarm Output (mA) 100
- PROFINET No
- Sensing Mode (General) Proximity
- Indicator Display; LED(s)
- Adjustments Push Button; Remote Teach
- Storage Temperature (°C) -25 to 75
- Spot Size (@ Reference Distance) 2.0 mm x 0.8 mm @ 300 mm
- IO Link No
- Primary Housing Material Stainless Steel
- Minimum Sensing Distance (mm) 35
- Output Protection Protected against continuous overload and short circuit
- Max Op. Relative Humidity Non-Condensing (%) 95 at 55°C
- Laser Control Yes
- Max Ambient Light (Lux) 5000
- Feature: Clear Object Detection Yes
- Wireless No
- Power DC
- Max Sensing Distance (mm) 310
- Vibration MIL-STD-202G req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Minimum Response Time (ms) 1.5
- Max Off-state Leakage Current (µA) 5 @ 30 V dc
- Feature: Ecolab Certified Yes
- Sensing Mode (Detailed) Background/Foreground Suppression
- Quick Disconnect Type M12 (Euro)
- Output Saturation Voltage PNP Outputs <1.5 V @ 100 mA
- Window Material Acrylic
- Feature: Remote Teach Yes
- RS-232 No
- PC Configurable No
- Connection Integral QD
- Min Operating Temperature (°C) -10
- Number of Pins 4
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- RS-422 No
- Housing Style Rectangular
- Sensing Beam Wavelength (nm) 655
- Discrete (Switched) Outputs 1 PNP
- Warm-up Time (minutes) 10
- Feature: Washdown Rated Yes
- RS-485 No
- Max Measurement Range >100 mm - <=500 mm
- Input/Output Discrete
- Max Operating Temperature (°C) 50
- Mechanical Shock MIL-STD-202G, Meth. 213B, Cond. I (100G 6x along X, Y & Z axes, 18 total shocks) w/ sensor operating
- Power/Current Consumption (exclusive of load) < 675 mW
- Sensing Beam Visible Red Laser
- Laser Classification Class 1
- Delay at Power-up (ms) 750
- IP Rating IP67; IP68; IP69
- Analog Linearity (mm) +/- 0.75 mm from 25 to 50 mm, 9.0 mm at 300 mm
- Feature: Timing (Hold/Delay) Yes
- Common Ethernet Protocol No
- 1-wire Serial Interface No
- Profibus No
- SSI No
- Feature: Chemical Resistant Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q4XFPCOD310-Q8 on Powermatic Associates is $433.00. Order now.
About the product
Banner Engineering Q4XFPCOD310-Q8 is a photo-electric sensor designed for clear object detection with an adjustable-field class 1 laser. It features a flush face housing for mounting and operates within an ambient air temperature range of -10 to +50 °C. This sensor incorporates a background/foreground suppression system with TEACH mode for enhanced detection capabilities. It is pre-equipped with a 4-pin Euro-style M12 connector for connectivity. Part of the Q4X series, it offers a high degree of protection rated at IP67, IP68, and IP69K, making it resistant to various chemicals. The sensor operates on a supply voltage of 10Vdc to 30Vdc, with nominal values of 12Vdc and 24Vdc. Its rectangular shape is constructed from stainless steel housing and an acrylic LED window. The sensing distance ranges from 35 to 310mm, utilizing a visible class 1 red laser with a wavelength of 655 nm. It includes 1 x digital output (PNP transistor) and is equipped with protection functions against overload and short-circuit.
