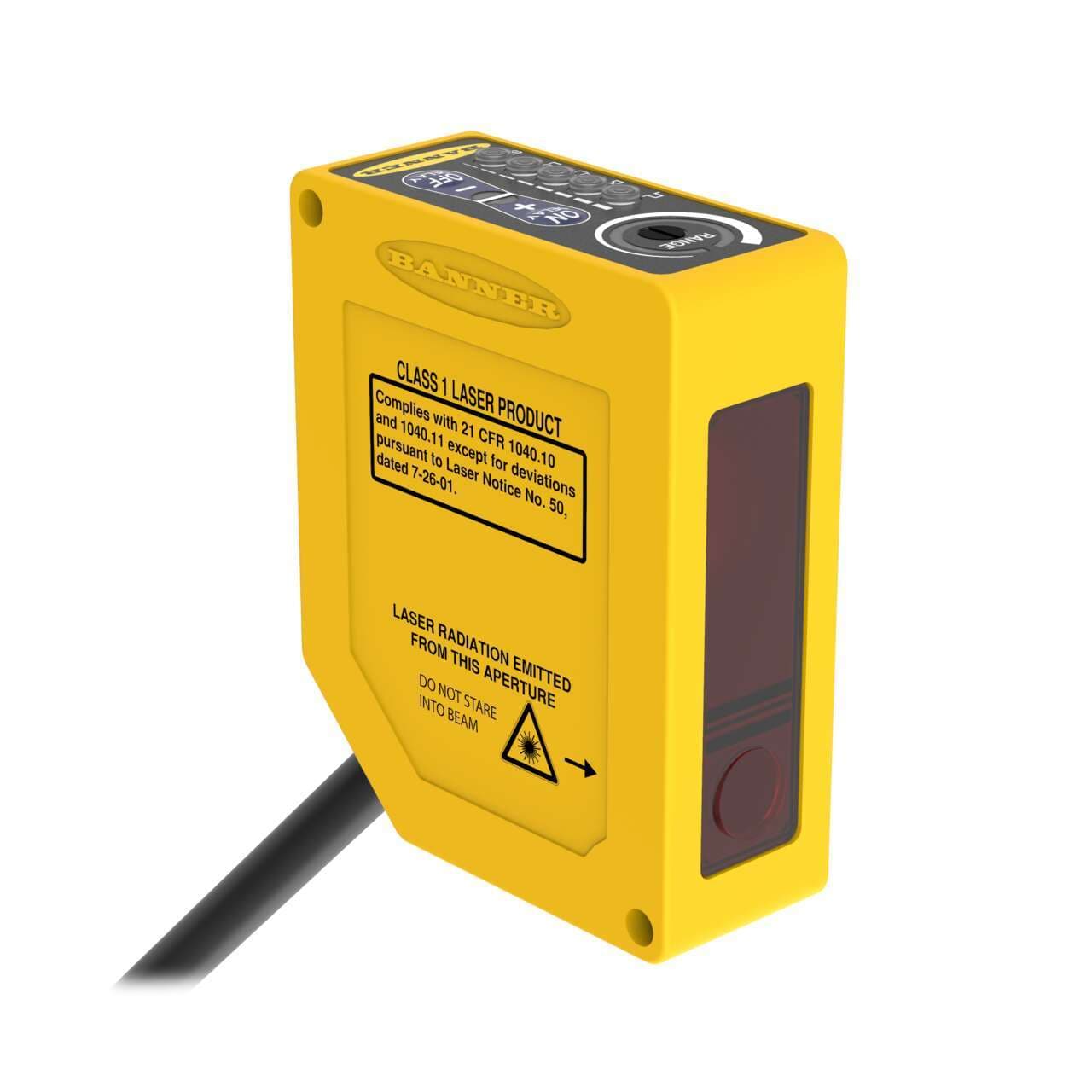

Q60BB6LAF1400QP Banner Proximity Sensors
Part#:Q60BB6LAF1400QP
Alt. Part#:71783
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q60 Series: Adjustable-Field Laser (Class 1); Range: 200-1400 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 154.22128 g
- Country Of Origin US
- Max Sensing Distance (mm) 1400
- Cable Length (m) 0.15
- Connection Pigtail QD
- NEMA Rating NEMA 6
- Power DC
- Input/Output Discrete
- Special Feature: Remote Teach Yes
- Primary Housing Material Thermoplastic
- Power Supply/Supply Voltage 10-30 V dc
- Special Feature: Intrinsically Safe No
- DeviceNet No
- Sensing Mode (General) Proximity
- Sensing Beam Visible Red Laser
- Outputs Bipolar (NPN & PNP)
- Output response time (ms) 2
- Laser Classification Class 1
- Operation Light/Dark Operate
- Repeatability (µs) 500
- Opposed Mode Emitter/Receiver N/A
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Min Op. Temp. (°C) -10
- Number of Pins 5
- Small Visible Spot Laser
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Feature: Encapsulated No
- Housing Style Rectangular
- Delay at Power-up (ms) 1000
- Indicator LEDs
- Feature: Chemical Resistant No
- Special Feature: Water Detection No
- Barrel Diameter (mm) N/A
- Feature: Audible No
- Lens Material Acrylic
- Feature: Hazardous Area No
- Adjustments Screw Adjustment
- IO Link No
- Quick Disconnect Type M12 (Euro)
- Feature: Timing (Hold/Delay) Yes
- Max Op. Relative Humidity [%] 90% @ 50°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60BB6LAF1400QP on Powermatic Associates is $433.00. Order now.
About the product
Banner Engineering Q60BB6LAF1400QP is a sensor with an adjustable-field Class 1 laser photo-electric functionality designed for precise detection tasks. It operates within an ambient air temperature range of -10 to +50 °C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector, ensuring compatibility with various installations. Part of the Q60LAF series, it offers a degree of protection rated at IP67 NEMA 6, suitable for demanding environments. The supply voltage requirement is 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, measuring 75 mm in height, 25 mm in width, and 60 mm in depth. The sensing distance ranges from 20cm to 1.4m, utilizing a visible class 1 red laser for detection. It supports both Light-ON and Dark-ON operating modes and includes 1 x digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s.
