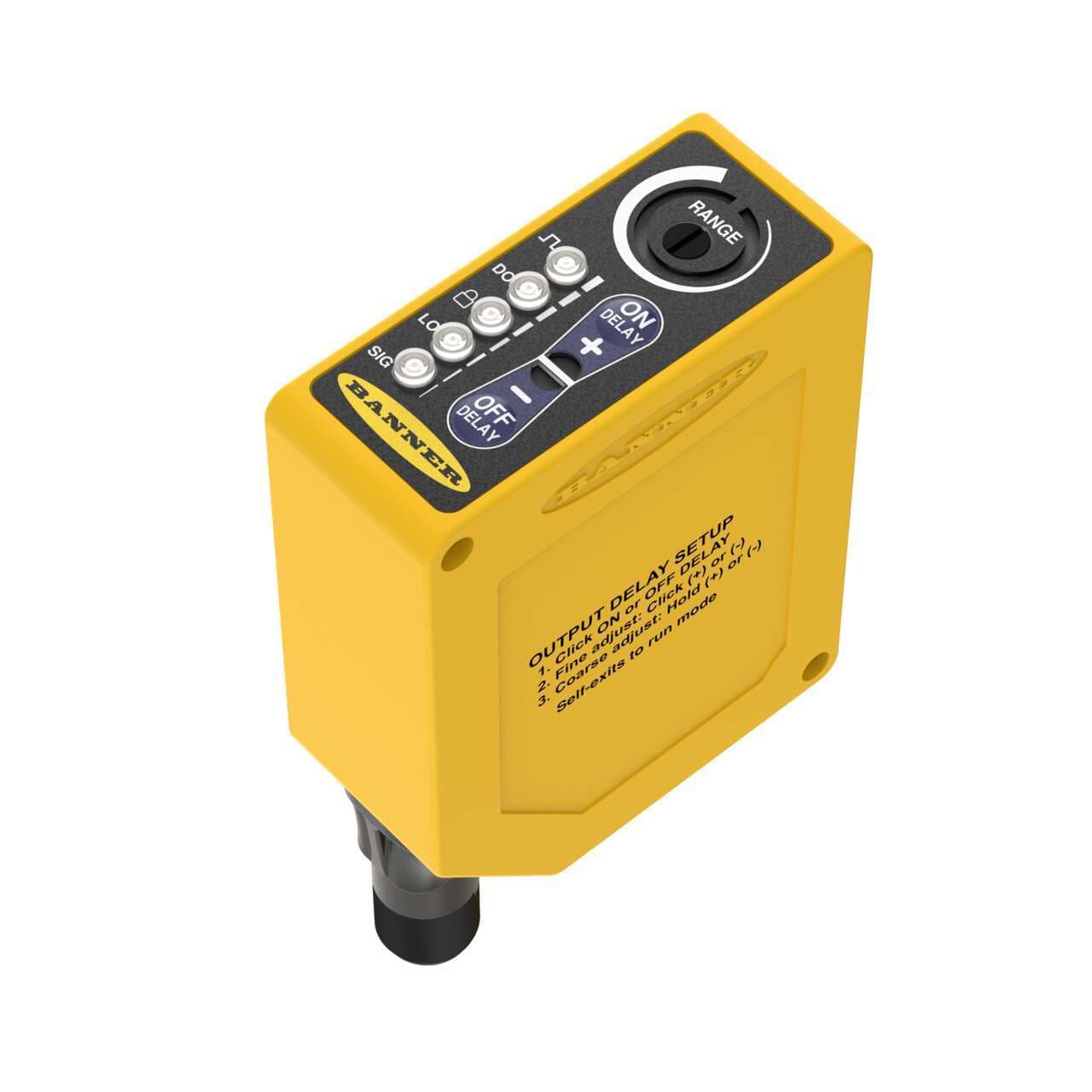

Q60BB6AF2000Q Banner Proximity Sensors
Part#:Q60BB6AF2000Q
Alt. Part#:63001
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q60 Series: Adjustable-Field Infrared; Range: 200-2000 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 5-pin M12 Integral QD
Product Details
- Weight 117.93392 g
- Country Of Origin US
- Main function Sensor (Photo-electric)
- Design background suppression system
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Product series / family name Q series
- Light Color Infrared (IR)
- Material thermoplastic housing Acrylic lns.
- Primary brand Banner Engineering
- Functions Adjustable-field photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Connection type Pre-equipped with 5-pin Euro-style M12 connector
- Sub-range name Q60AF
- Shape Rectangular
- Response time 2ms / 0.002 s
- Ambient air temperature for operation -20...+55 °C
- Sensing distance 20cm...2m
- Degree of protection IP67 NEMA 6
- Operating mode Light-ON Dark-ON
- Compliant with standard(s) cURus CE
- Net Depth (mm) 60 mm
- Order code / Manufacturer SKU 63001
- Net Height (mm) 75 mm
- Net Width (mm) 25 mm
- Power DC
- Quick Disconnect Type M12 (Euro)
- NEMA Rating NEMA 6
- DeviceNet No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Input/Output Discrete
- Lens Material Acrylic
- Primary Housing Material Thermoplastic
- Special Feature: Intrinsically Safe No
- Special Feature: Water Detection No
- IP Rating IP67
- Feature: Encapsulated No
- Feature: Hazardous Area No
- IO Link No
- Max Sensing Distance (mm) 2000
- Output response time (ms) 2
- Indicator LEDs
- Sensing Mode (General) Proximity
- Operation Light/Dark Operate
- Special Feature: Remote Teach Yes
- Opposed Mode Emitter/Receiver N/A
- Max Op. Temp. (°C) 55
- Feature: Timing (Hold/Delay) Yes
- Sensing Beam Infrared LED
- Connection Integral QD
- Number of Pins 5
- Feature: Chemical Resistant No
- Housing Style Rectangular
- Max Op. Relative Humidity [%] 90% @ 50°C
- Barrel Diameter (mm) N/A
- Power Supply/Supply Voltage 10-30 V dc
- Delay at Power-up (ms) 150
- Adjustments Screw Adjustment
- Outputs Bipolar (NPN & PNP)
- Min Op. Temp. (°C) -20
- Repeatability (µs) 500
- Feature: Audible No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60BB6AF2000Q on Powermatic Associates is $229.00. Order now.
About the product
Banner Engineering Q60BB6AF2000Q is an adjustable-field photo-electric sensor designed for a variety of applications requiring precise detection. This sensor operates within an ambient air temperature range of -20 to +55 °C and features a background suppression system with screw adjustment for fine-tuning. It comes pre-equipped with a 5-pin Euro-style M12 connector for easy integration into existing systems. The Q60AF series sensor boasts a degree of protection rated at IP67 NEMA 6, ensuring durability in harsh environments. It requires a supply voltage of 10Vdc to 30Vdc, with 12Vdc and 24Vdc as nominal values. The rectangular-shaped sensor has a thermoplastic housing and an acrylic lens, measuring 75 mm in height, 25 mm in width, and 60 mm in depth. It offers a sensing distance ranging from 20cm to 2m and utilizes infrared (IR) light for detection. The operating modes include Light-ON and Dark-ON, with one digital output (PNP/NPN transistor) and a quick response time of 2ms / 0.002 s.
