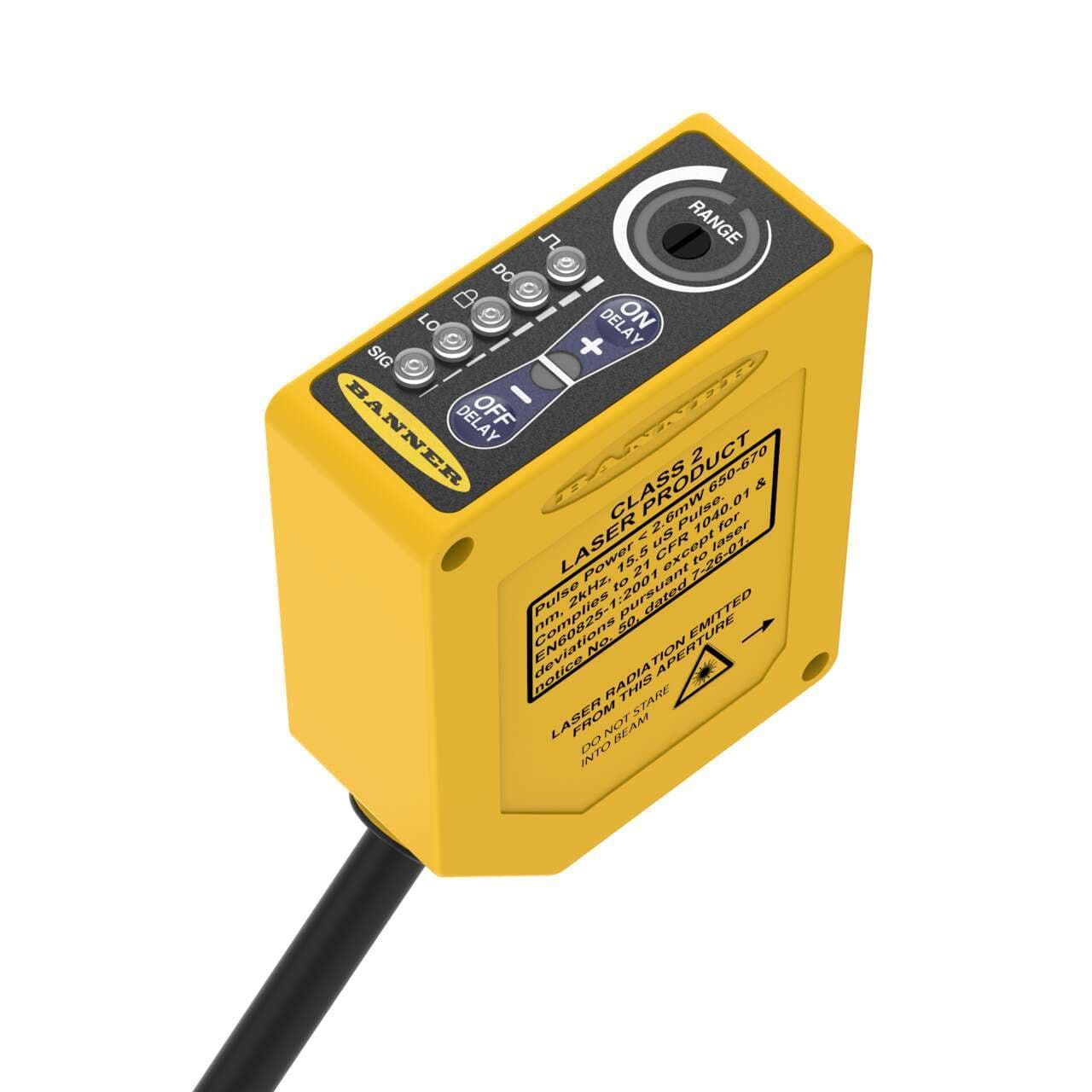

Q60BB6LAF2000QP Banner Proximity Sensors
Part#:Q60BB6LAF2000QP
Alt. Part#:71784
Manufacturer:Banner
Category:Proximity Sensors
Product Lifecycle:Active
Product description
Q60 Series: Adjustable-Field Laser (Class 2); Range: 200-2000 mm; Input: 10-30 V dc; Output: Bipolar: 1 NPN; 1 PNP; 150 mm (6 in) M12 Pigtail QD
Product Details
- Weight 158.7572 g
- Country Of Origin US
- Primary brand Banner Engineering
- Supply voltage (DC) 10Vdc-30Vdc (12Vdc / 24Vdc nom.)
- Sensing distance 20cm...2m
- Operating mode Light-ON Dark-ON
- Order code / Manufacturer SKU 71784
- Compliant with standard(s) cURus CE
- Product series / family name Q series
- Shape Rectangular
- Digital outputs 1 x digital output (PNP/NPN transistor)
- Net Width (mm) 25 mm
- Design background suppression system
- Degree of protection IP67 NEMA 6
- Ambient air temperature for operation -10...+50 °C
- Net Depth (mm) 60 mm
- Main function Sensor (Photo-electric)
- Sub-range name Q60LAF
- Response time 2ms / 0.002 s
- Net Height (mm) 75 mm
- Material thermoplastic housing Acrylic lns.
- Light Color Visible class 2 red Laser
- Functions Adjustable-field class 2 Laser photo-electric sensor green LED (power ON) yellow LED (output state) screw adjustment
- Connection type Pre-wired with 6" / 150mm pigtail terminated with 5-pin Euro-style M12 connector
- Power DC
- Operation Light/Dark Operate
- Connection Pigtail QD
- Indicator LEDs
- Feature: Hazardous Area No
- Sensing Mode (General) Proximity
- Min Op. Temp. (°C) -10
- NEMA Rating NEMA 6
- Feature: Chemical Resistant No
- Delay at Power-up (ms) 1000
- Lens Material Acrylic
- Feature: Encapsulated No
- Housing Style Rectangular
- Max Sensing Distance (mm) 2000
- Special Feature: Intrinsically Safe No
- Sensing Mode (Detailed) Background Suppression (Adjustable)
- Power Supply/Supply Voltage 10-30 V dc
- Number of Pins 5
- Feature: Timing (Hold/Delay) Yes
- Small Visible Spot Laser
- Outputs Bipolar (NPN & PNP)
- Special Feature: Water Detection No
- Opposed Mode Emitter/Receiver N/A
- Primary Housing Material Thermoplastic
- Input/Output Discrete
- Special Feature: Remote Teach Yes
- Barrel Diameter (mm) N/A
- DeviceNet No
- Laser Classification Class 2
- Cable Length (m) 0.15
- Output response time (ms) 2
- Adjustments Screw Adjustment
- Sensing Beam Visible Red Laser
- Quick Disconnect Type M12 (Euro)
- Repeatability (µs) 500
- Max Op. Temp. (°C) 50
- IP Rating IP67
- Feature: Audible No
- IO Link No
- Max Op. Relative Humidity [%] 90% @ 50°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of Q60BB6LAF2000QP on Powermatic Associates is $481.00. Order now.
About the product
Banner Engineering Q60BB6LAF2000QP is an adjustable-field Class 2 laser photo-electric sensor designed for a variety of applications requiring precise detection. It operates within an ambient air temperature range of -10 to +50°C and features a background suppression system with screw adjustment for fine-tuning. This sensor is pre-wired with a 6" / 150mm pigtail that terminates with a 5-pin Euro-style M12 connector, ensuring easy installation. It belongs to the Q60LAF series and offers a degree of protection rated at IP67 NEMA 6, making it suitable for challenging environments. The supply voltage required for operation is 10Vdc-30Vdc, with 12Vdc / 24Vdc being nominal. Its rectangular shape is constructed from a thermoplastic housing with an acrylic lens, measuring 75 mm in height, 25 mm in width, and 60 mm in depth. The sensing distance ranges from 20cm to 2m, utilizing a visible class 2 red laser for detection. It operates in both Light-ON and Dark-ON modes and includes 1 x digital output (PNP/NPN transistor) with a response time of 2ms / 0.002 s.
