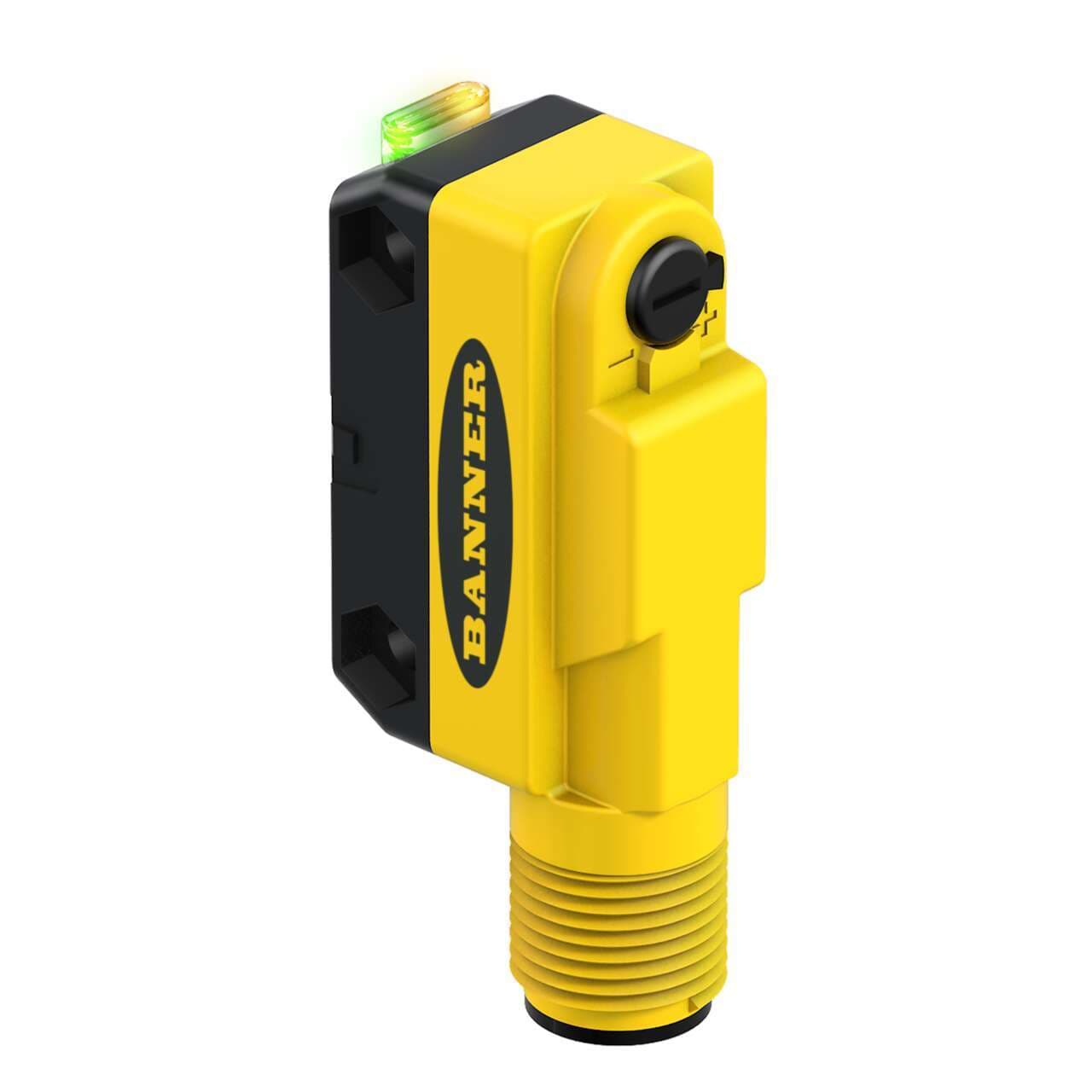

QS18VN6WQ8 Banner Proximity Sensors

Product Details

• Weight
  45.3592 g
• Country Of Origin
  MX
• Sub-range name
  QS18 series
• Sensing distance
  100mm
• Operating mode
  Light-ON Dark-ON
• Degree of protection
  IP67 NEMA 6
• Product series / family name
  WORLD-BEAM series
• Connection type
  Pre-equipped with 4-pin Euro-style M12 connector
• Material
  thermoplastic housing Acrylic lns.
• Primary brand
  Banner Engineering
• Design
  divergent diffuse system
• Main function
  Sensor (Photo-electric)
• Light Color
  Infrared (IR)
• Digital outputs
  1 x digital output (NPN transistor)
• Response time
  0.6ms / 0.0006 s
• Order code / Manufacturer SKU
  66463
• Supply voltage (DC)
  10Vdc-30Vdc (12Vdc / 24Vdc nom.)
• Compliant with standard(s)
  cURus CE
• Functions
  Photo-electric sensor green LED (power ON) yellow LED (light sensed)
• Ambient air temperature for operation
  -20...+70 °C
Shape
Rectangular
Power Supply/Supply Voltage
10-30 V dc
Operation
Light/Dark Operate
Special Feature: Intrinsically Safe
No
IP Rating
IP67
Feature: Quick Disconnect
Yes
Max Sensing Distance (mm)
100
Sensing Mode (Detailed)
Divergent
Delay at Power-up (ms)
100
Feature: Timing (Hold/Delay)
No
Primary Housing Material
ABS
Connection
Integral QD
Number of Pins
4
Barrel Diameter (mm)
N/A
Feature: Audible
No
Lens Material
Acrylic
Quick Disconnect Type
M12 (Euro)
Max Op. Temp. (°C)
70
Power
DC
Min Op. Temp. (°C)
-20
Repeatability (µs)
150
Feature: Encapsulated
No
IO Link
No
Housing Style
Rectangular
Sensing Mode (General)
Proximity
NEMA Rating
NEMA 6
Feature: Hazardous Area
No
Outputs
NPN
Special Feature: Remote Teach
No
Max Op. Relative Humidity [%]
95% @ 50°C
Sensing Beam
Infrared LED
Special Feature: Water Detection
No
Indicator
LEDs
DeviceNet
No
Input/Output
Discrete
Output response time (ms)
0.6
Feature: Chemical Resistant
No
Adjustments
N/A
