Part#:S18SN6DL W-30

Manufacturer:Banner

Category:Sensors & Transducers

Product Lifecycle:Active

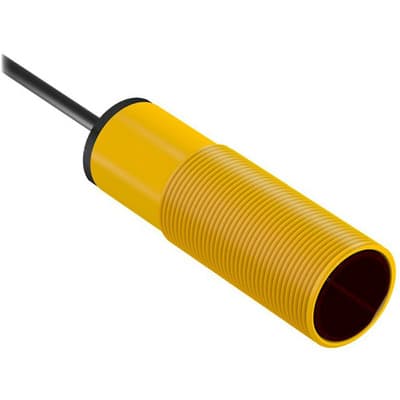

Product description

Photo-electric sensor with diffuse mode - Banner Engineering (EZ-BEAM series - S18 DC series) - Part #35869 - Sensing range 300mm - Infrared (IR) light (880nm) - 1 x digital output (NPN transistor) (Light-ON or Dark-ON operation) - Supply voltage 10Vdc-30

Product Details

  • Sub-range name
    S18 DC series
  • Sensing distance
    300mm
  • Operating mode
    Light-ON Dark-ON
  • Equivalent to
    S18SN6DLW30
  • Primary brand
    Banner Engineering
  • Supply voltage (DC)
    10Vdc-30Vdc (12Vdc / 24Vdc nom.)
  • Light Color
    Infrared (IR)
  • Response time
    3ms / 0.003 s
  • Ambient air temperature for operation
    -40...+70 °C
  • Order code / Manufacturer SKU
    35869
  • Main function
    Sensor (Photo-electric)
  • Thread size
    M18
  • Degree of protection
    IP67 IP69K NEMA 6P
  • Design
    diffuse mode
  • Wavelength
    880 nm
  • Digital outputs
    1 x digital output (NPN transistor)
  • Compliant with standard(s)
    cULus cCSAus CE
  • Product series / family name
    EZ-BEAM series
  • Functions
    Photo-electric sensor green LED (power ON) amber LED (output state)
  • Shape
    Cylindrical threaded/barrel
  • Connection type
    Pre-wired with 30ft / 9m cable terminated with bare end flying leads
  • Material
    thermoplastic housing Acrylic lns.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
