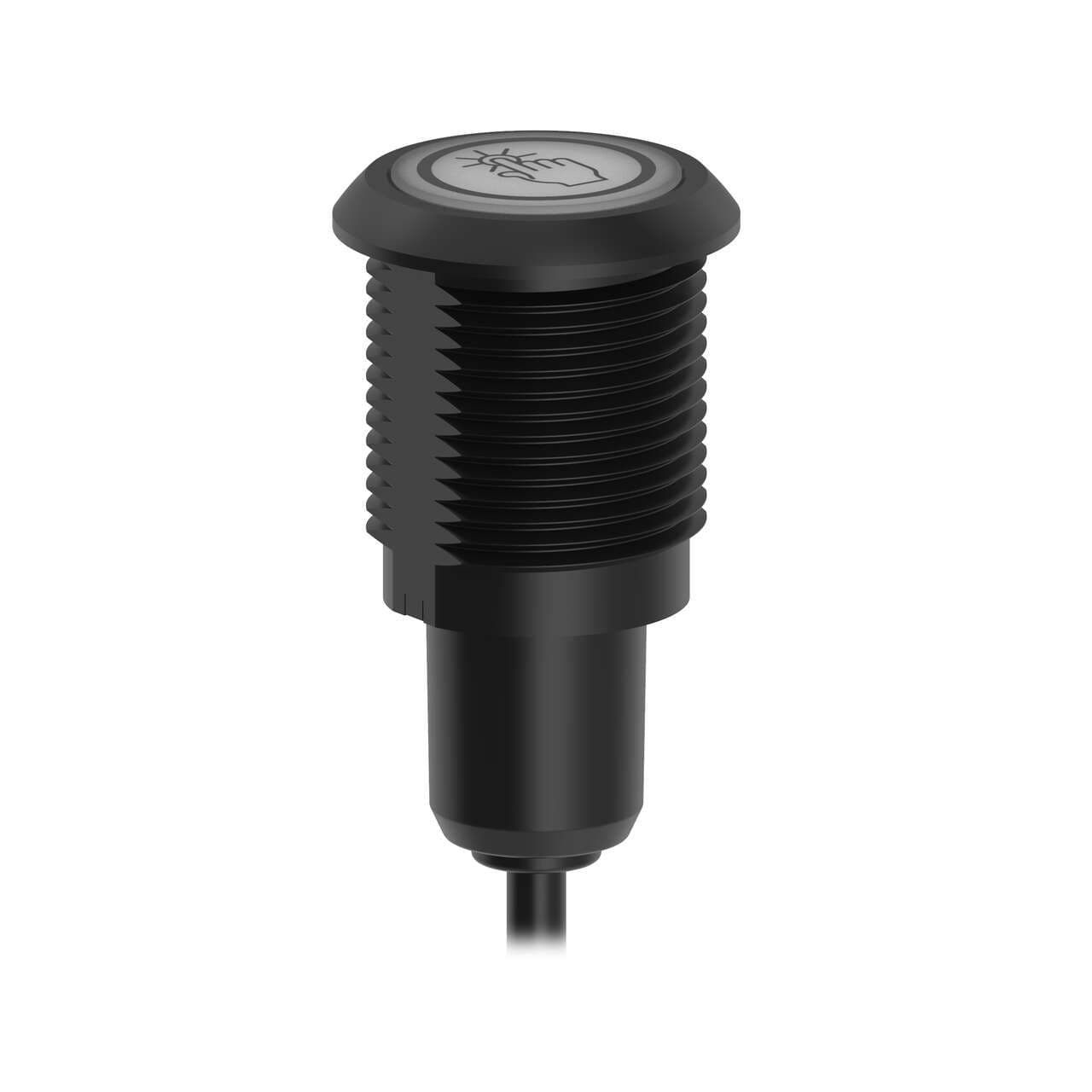

S22ALTSRGB7QP Banner Pick-to-Light Sensors
Part#:S22ALTSRGB7QP
Alt. Part#:804247
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 7-color RGB Touch Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input/Output: Bimodal, NO, Latching; Colors: Multicolor; 150 mm (6 in) 8-pin M12 PVC Pigtail QD
Product Details
- Weight 33.565808 g
- Country Of Origin MX
- Cable Length (m) 0.15
- Product Size (mm) 22
- Lumens Color 2 0.18
- Color Option 4 Yellow
- Color Option 6 Magenta
- Activation Function Capacitive Touch
- Color Option 3 Blue
- Color 4 - Wavelength/Color Temp/Coordinates 572 nm
- Lumens Color 7 0.20
- Input Type Bimodal (PNP/NPN)
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 47.8
- Primary Window Material Polycarbonate Diffused
- Actuation Yes
- Quick Disconnect Type M12 (Euro)
- Lumens Color 4 0.25
- Color 6 - Wavelength/Color Temp/Coordinates 0.354, 0.149
- Output Type Bipolar (NPN & PNP)
- Max Input Response Time (ms) 20
- Min Op. Temperature (°C) -40
- Feature: Chemical Resistant No
- Power Source DC
- Primary Housing Material Polycarbonate
- Color Option 1 Red
- Connection Pigtail QD
- Lumens Color 3 0.03
- Color 5 - Wavelength/Color Temp/Coordinates 5700K
- Pick-to-Light Function F2
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Housing Style Barrel Mount - Flat Window
- Color Technology RGB Configurable
- Color 2 - Wavelength/Color Temp/Coordinates 527 nm
- Color Option 5 White
- Max Current Color (mA) 80
- Operation Normally Open
- Storage Temp (°C) -40 to 70
- Feature: Hazardous Area No
- Mounting Thread M22 x 1.5
- Lumens Color 1 0.08
- Power DC
- Number of Colors / Segments 7
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Color 3 - Wavelength/Color Temp/Coordinates 465 nm
- Lumens Color 6 0.10
- Number of Input Pins/Conductors 8
- Max Op. Temperature (°C) 50
- Feature: Washdown Rated Yes
- Pro-Editor Compatible (Discrete) Yes
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color Option 2 Green
- Lumens Color 5 0.24
- Color Option 7 Cyan
- Supply Voltage 10-30 V dc
- Max Output Response Time (ms) 300
- Button Operation Latching
- IO Link No
- Color 7 - Wavelength/Color Temp/Coordinates 492 nm
- Environmental Rating IP66; IP67; IP69
- Feature: Audible No
- Wireless No
- Modbus RTU No
- Feature: Quick Disconnect Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22ALTSRGB7QP on Powermatic Associates is $90.00. Order now.
About the product
Banner Engineering S22ALTSRGB7QP is an illuminated capacitive touch-sensitive button designed with a 7-color RGB multicolor LED illumination. It features a polycarbonate (PC) diffused window and a PC base, with a 22mm button diameter. This part is pre-wired with a 6" / 15cm pigtail that terminates with an 8-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It is designed for flush mounting in a 22mm hole with an M22 thread. The S22ALTSRGB7QP can operate in ambient air temperatures ranging from -40°C to +50°C and offers a degree of protection rated at IP66, IP67, and IP69K. The shape is characterized by a flat window and a threaded cylindrical barrel. It includes 1 x digital output (10-30Vdc; PNP/NPN) for touch functionality and 3 x digital inputs (10-30Vdc; PNP/NPN) for color control, with a current consumption of 80mA. The operating mode is latched NO (Normally Open) touch output.
