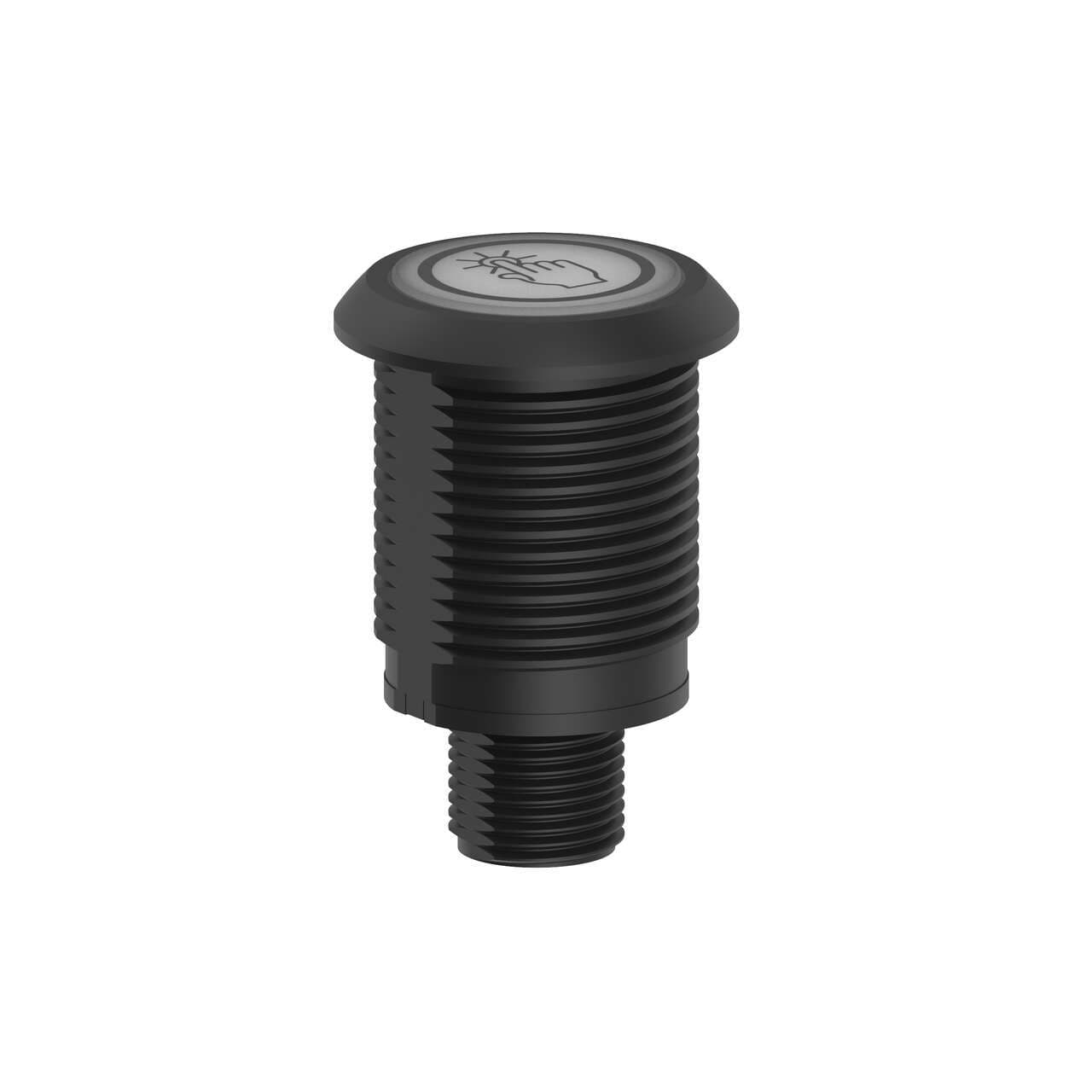

S22AMTSGRY3Q Banner Pick-to-Light Sensors
Part#:S22AMTSGRY3Q
Alt. Part#:806301
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 3-color RGB Touch Sensor; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input/Output: Bimodal, NO, Momentary; Colors: Green Red Yellow; 5-pin M12 Integral QD
Product Details
- Weight 0.1360776 g
- Country Of Origin MX
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Max Current Color (mA) 80
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- IO Link No
- Primary Housing Material Polycarbonate
- Lumens Color 1 0.18
- Max Input Response Time (ms) 20
- Environmental Rating IP66; IP67; IP69
- Feature: Hazardous Area No
- Mounting Thread M22 x 1.5
- Connection Integral QD
- Number of Input Pins/Conductors 5
- I/O Block Compatible Yes
- Feature: Washdown Rated Yes
- Power Source DC
- Color Technology RGB Configurable
- Cable Length (m) 0.15
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Power DC
- Color Option 2 Red
- Feature: Chemical Resistant No
- Number of Colors / Segments 3
- Storage Temp (°C) -40 to 70
- Lumens Color 2 0.08
- Quick Disconnect Type M12 (Euro)
- Color 3 - Wavelength/Color Temp/Coordinates 572 nm
- Max Output Response Time (ms) 300
- Feature: Audible No
- Wireless No
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 40.2
- Color Option 3 Yellow
- Pick-to-Light Function F2
- Color Option 1 Green
- Operation Normally Open
- Primary Window Material Polycarbonate Diffused
- Housing Style Barrel Mount - Flat Window
- Product Size (mm) 22
- Supply Voltage 10-30 V dc
- Modbus RTU No
- Feature: Quick Disconnect Yes
- Activation Function Capacitive Touch
- Lumens Color 3 0.25
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Pro-Editor Compatible (Discrete) Yes
- Primary Housing Color Black
- Multi-Color Device Single Color On
- Actuation Yes
- Output Type Bipolar (NPN & PNP)
- Min Op. Temperature (°C) -40
- Button Operation Momentary
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22AMTSGRY3Q on Powermatic Associates is $82.00. Order now.
About the product
Banner Engineering S22AMTSGRY3Q is a touch-button featuring illuminated capacitive touch-sensitive technology. This part is designed with a 3-color GRY multicolor LED illumination and is constructed from a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It has a 22mm button diameter and comes pre-equipped with a 5-pin M12 Euro-style QD connector. The housing color is black, and it operates on a supply voltage range of 10Vdc-30Vdc, with a nominal range of 12Vdc-24Vdc. It is designed for flush mounting in a 22mm hole with an M22 thread. The ambient air temperature for operation ranges from -40°C to +50°C. This part offers a degree of protection rated at IP66, IP67, and IP69K. It features a flat window and a threaded cylindrical barrel shape. The S22AMTSGRY3Q has 1 x digital output (10-30Vdc; PNP/NPN) for touch functionality and 2 x digital inputs (10-30Vdc; PNP/NPN) for color control. It operates with a momentary NO (Normally Open) touch output and has a current consumption of 80mA.
