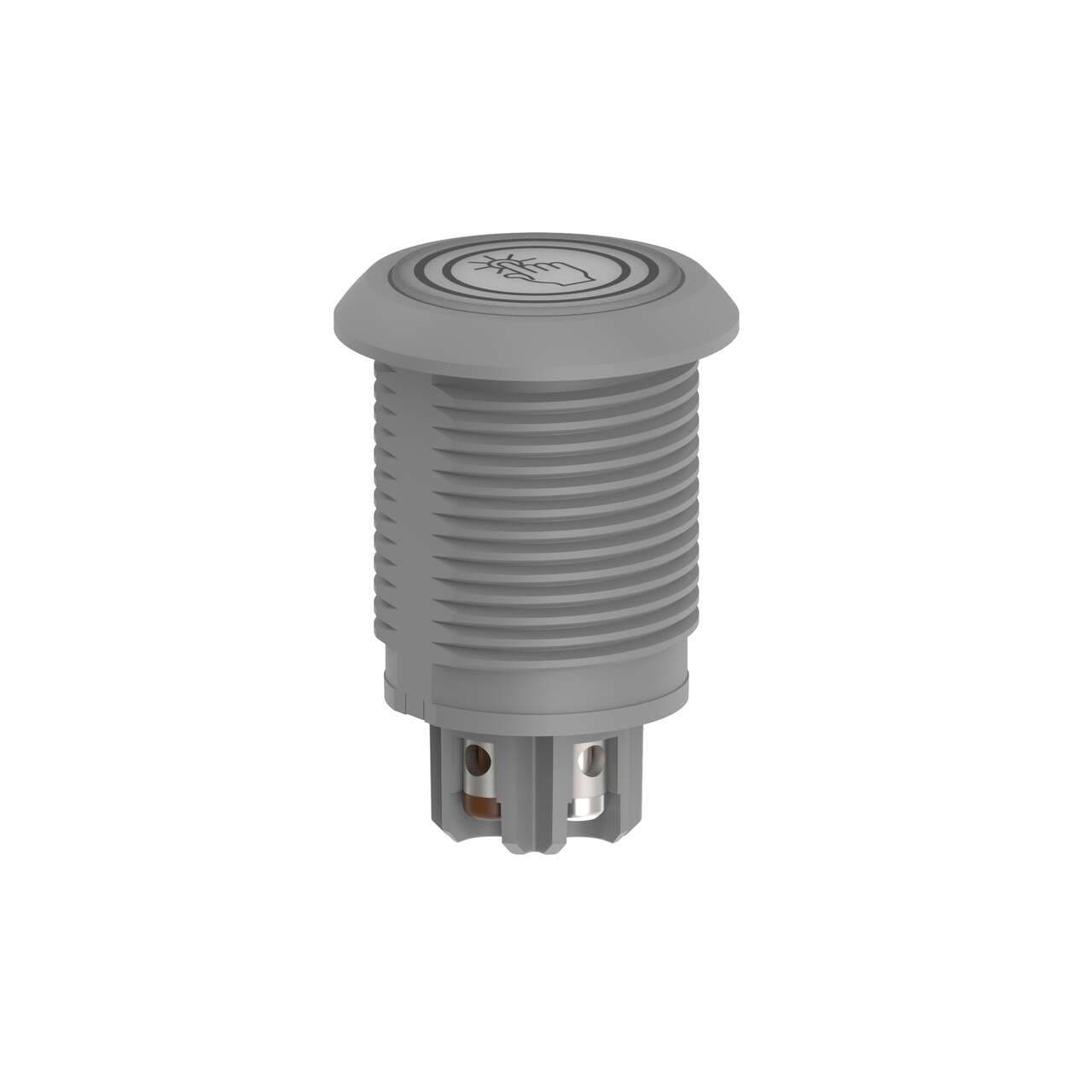

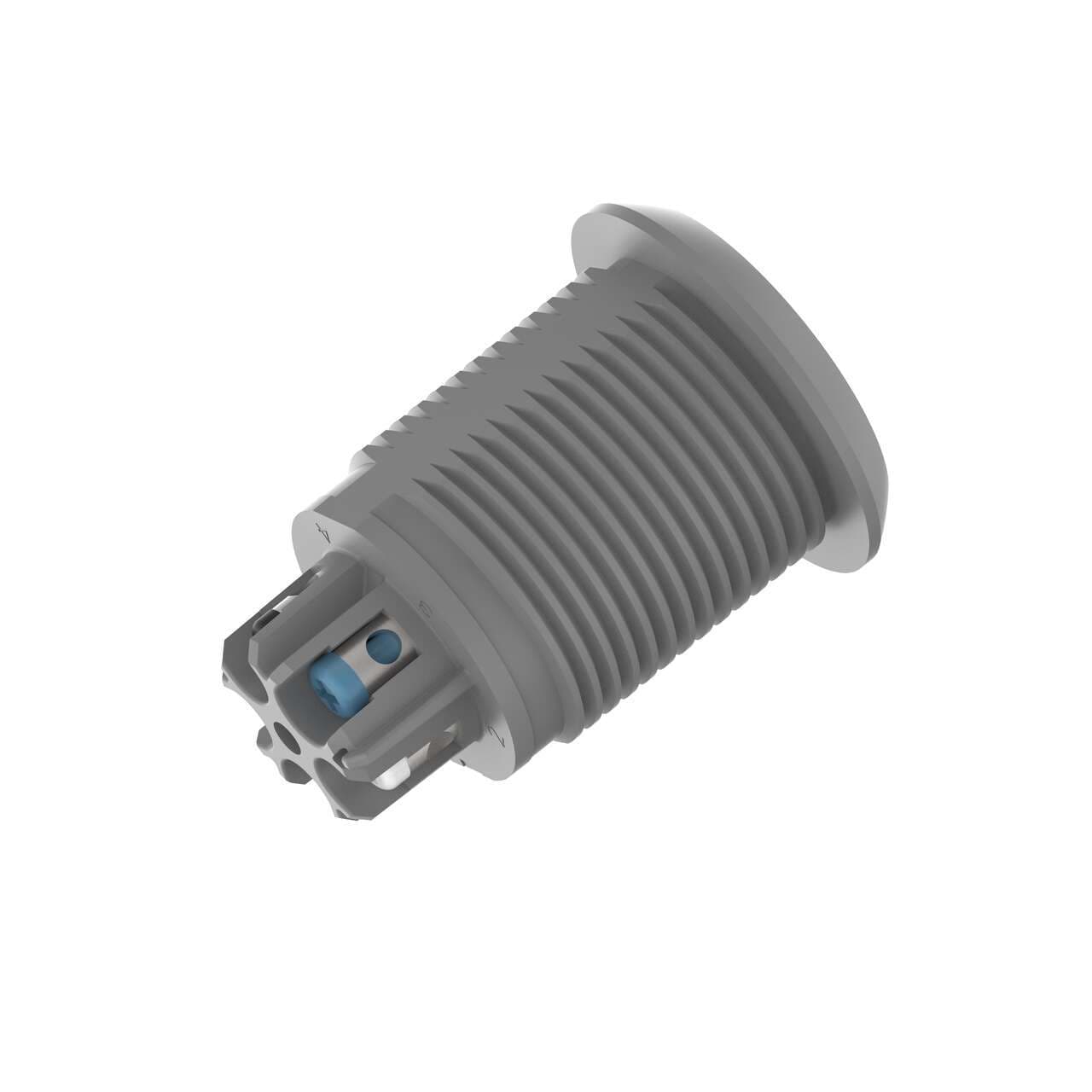

S22AMTFGRCT Banner Pick-to-Light Sensors
Part#:S22AMTFGRCT
Alt. Part#:804306
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Touch Series: 2-color RGB Touch Sensor-FDA; Voltage: 10-30 V dc; Housing: Copolyester; IP67 IP69K; Input/Output: Bimodal, NO, Momentary; Colors: Green Red; 5-screw Terminal Wiring
Product Details
- Weight 21.318824 g
- Country Of Origin MX
- Actuation Yes
- Mounting Thread M22 x 1.5
- Number of Colors / Segments 2
- Activation Function Capacitive Touch
- Primary Housing Material FDA Copolyester
- Color 1 - Wavelength/Color Temp/Coordinates 527 nm
- Color Option 2 Red
- Lumens Color 2 0.08
- Product Size (mm) 22
- Color Option 1 Green
- Lumens Color 1 0.18
- Connection Terminal
- Color Technology RGB Configurable
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Acknowledge (Sense) Light Red
- Pick-to-Light Function C
- Operation Normally Open
- Max Current Color (mA) 80
- Number of Input Pins/Conductors 5
- Power Source DC
- Power DC
- Housing Style Barrel Mount - Flat Window
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
- Output Type Bipolar (NPN & PNP)
- Storage Temp (°C) -40 to 70
- IO Link No
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Wireless No
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 39.1
- Primary Window Material Copolyester Diffused
- Job Light Green
- Supply Voltage 10-30 V dc
- Primary Housing Color FDA Gray
- Feature: Audible No
- Max Output Response Time (ms) 300
- Modbus RTU No
- Environmental Rating IP66; IP67; IP69
- Feature: Hazardous Area No
- I/O Block Compatible Yes
- Button Operation Momentary
- Feature: Quick Disconnect No
- Pro-Editor Compatible (Discrete) Yes
- Max Input Response Time (ms) 20
- Feature: Washdown Rated Yes
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Chemical Resistant No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22AMTFGRCT on Powermatic Associates is $94.00. Order now.
About the product
Banner Engineering S22AMTFGRCT is a pick-to-light sensor designed with hygienic considerations, utilizing FDA-grade materials for both its copolyester diffused window and housing. This sensor features a capacitive touch-sensitive interface for pick-to-light operations, with a 22mm diameter button for flush mounting in a 22mm hole. It offers a screw-clamp terminal connection and comes in a gray housing. The S22AMTFGRCT operates on a supply voltage range of 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc, and is designed to function in ambient air temperatures ranging from -40°C to +50°C. It provides a high degree of protection with IP66, IP67, and IP69K ratings, ensuring durability in various environments. The sensor has a flat window and a threaded cylindrical barrel shape. It includes 1 x digital output (10-30Vdc; PNP/NPN) for touch activation and 1 x digital input (10-30Vdc; PNP/NPN) for JOB color control, with a current consumption of 80mA. The operating mode is momentary, with a job light (G; Green) indicating active input and a sensing light (R; Red) alongside a normally open (NO) touch output.
