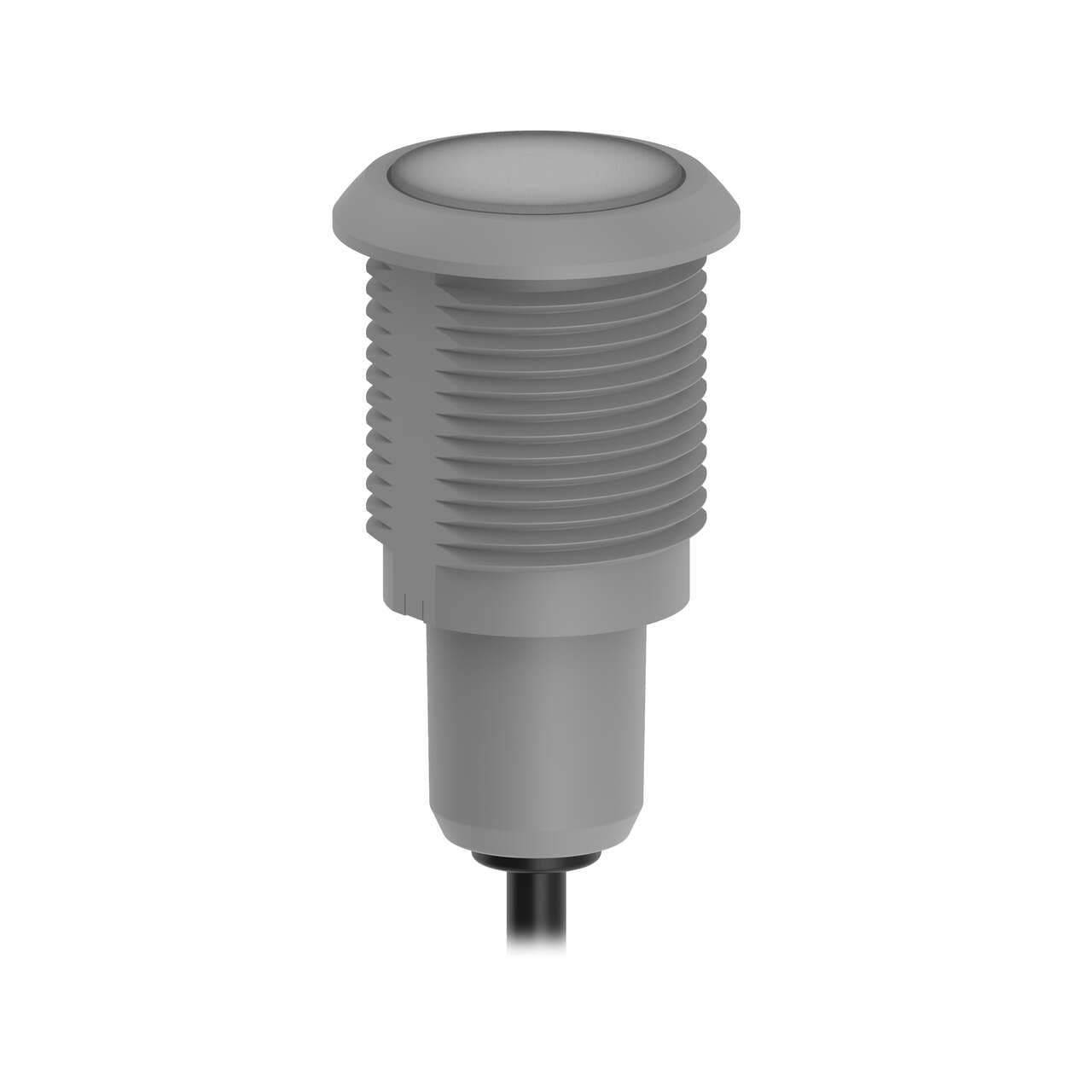

S22L2FRGB7QP Banner Pick-to-Light Sensors

Product Details

• Weight
  33.565808 g
• Country Of Origin
  MX
• Indication
  Yes
• Color Option 1
  Red
• Lumens Color 3
  0.30
• Color Option 6
  Magenta
• Primary Window Material
  Copolyester Diffused
• Environmental Rating
  IP66; IP67; IP69
• Power Source
  DC
• Product Size (mm)
  22
• Lumens Color 2
  1.9
• Color 5 - Wavelength/Color Temp/Coordinates
  5700K
• IO Link
  No
• Housing Style
  Barrel Mount - Flat Window
• Color 3 - Wavelength/Color Temp/Coordinates
  465 nm
• Color Option 7
  Cyan
• Input Type
  Bimodal (PNP/NPN)
• Feature: Washdown Rated
  Yes
• Color Input Control
  Multiple (One or more wires/color, enables more colors than input wires)
• Color Option 2
  Green
Lumens Color 6
1.2
Min Op. Temperature (°C)
-40
Max Current Color (mA)
70
Storage Temp (°C)
-40 to 70
Feature: Quick Disconnect
Yes
Cable Length (m)
2
Color 1 - Wavelength/Color Temp/Coordinates
625 nm
Color Option 5
White
Number of Input Pins/Conductors
5
Max Input Response Time (ms)
250
Mounting Thread
M22 x 1.5
Primary Housing Material
FDA Copolyester
Color Technology
RGB Configurable
Connection
Pigtail QD
Color Option 3
Blue
Color 2 - Wavelength/Color Temp/Coordinates
527 nm
Color 4 - Wavelength/Color Temp/Coordinates
571 nm
Lumens Color 5
2.5
Power
DC
Lumens Color 1
0.80
Color Option 4
Yellow
Color 6 - Wavelength/Color Temp/Coordinates
0.345, 0.161
Supply Voltage
10-30 V dc
Physical Dimensions (LxWxH or DxH mm)
27.3 x 47.8
Modbus RTU
No
Wireless
No
Number of Colors / Segments
7
Quick Disconnect Type
M12 (Euro)
Lumens Color 4
2.5
Lumens Color 7
2.0
Max Op. Temperature (°C)
50
I/O Block Compatible
Yes
Feature: Chemical Resistant
No
Max Op. Relative Humidity Non-Condensing (%)
90% @ 50°C
Feature: Hazardous Area
No
Primary Housing Color
FDA Gray
Pro-Editor Compatible (Discrete)
Yes
Multi-Color Device
Single Color On
Color 7 - Wavelength/Color Temp/Coordinates
492 nm
Wire Selectable Function
Flashing
Feature: Audible
No
