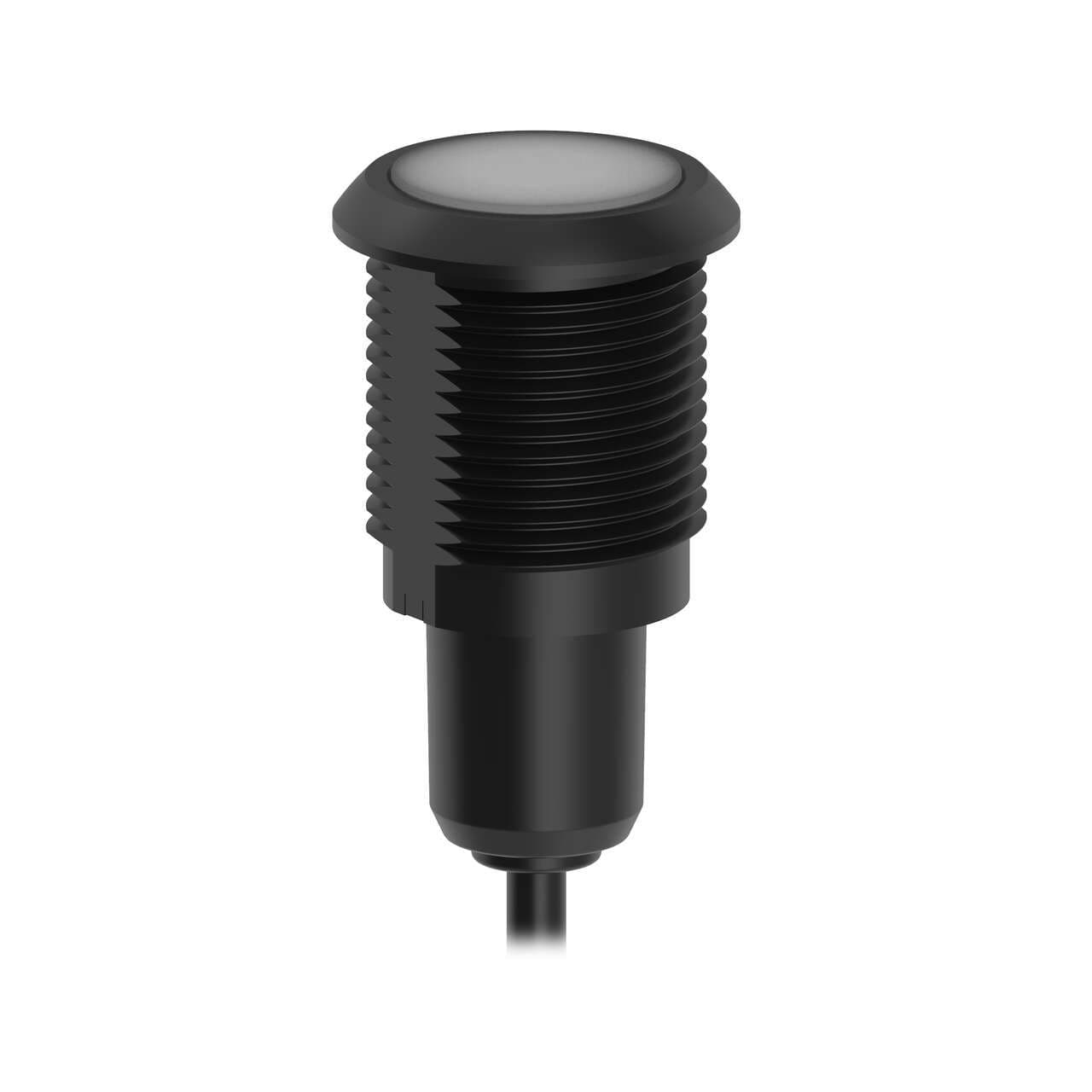

S22L2SRGB14QP Banner Pick-to-Light Sensors
Part#:S22L2SRGB14QP
Alt. Part#:804230
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 Pro Series: 14-color RGB Indicator; Voltage: 10-30 V dc; Housing: Polycarbonate; IP67 IP69K; Input: Bimodal; Colors: Multicolor; 150 mm (6 in) 5-pin M12 PVC Pigtail QD
Product Details
- Weight 33.565808 g
- Country Of Origin MX
- Power DC
- Color Technology RGB Configurable
- Lumens Color 3 0.30
- Lumens Color 5 2.5
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- Cable Length (m) 2
- Power Source DC
- Color 2 - Wavelength/Color Temp/Coordinates 527 nm
- Color 5 - Wavelength/Color Temp/Coordinates 5700K
- I/O Block Compatible Yes
- Feature: Washdown Rated Yes
- Wireless No
- Housing Style Barrel Mount - Flat Window
- Lumens Color 1 0.80
- Color Option 5 White
- Color 6 - Wavelength/Color Temp/Coordinates 0.345, 0.161
- Physical Dimensions (LxWxH or DxH mm) 27.3 x 47.8
- Feature: Hazardous Area No
- Indication Yes
- Lumens Color 2 1.9
- Color Option 6 Magenta
- Color 7 - Wavelength/Color Temp/Coordinates 492 nm
- Environmental Rating IP66; IP67; IP69
- Feature: Chemical Resistant No
- Color Input Control Multiple (One or more wires/color, enables more colors than input wires)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 4 2.5
- Lumens Color 7 2.0
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
- Color Option 2 Green
- Product Size (mm) 22
- Color 4 - Wavelength/Color Temp/Coordinates 571 nm
- Number of Input Pins/Conductors 5
- Max Op. Temperature (°C) 50
- Multi-Color Device Single Color On
- Number of Colors / Segments 14
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Color 3 - Wavelength/Color Temp/Coordinates 465 nm
- Color Option 7 Cyan
- Max Input Response Time (ms) 250
- Storage Temp (°C) -40 to 70
- IO Link No
- Mounting Thread M22 x 1.5
- Connection Pigtail QD
- Color Option 4 Yellow
- Max Current Color (mA) 70
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Primary Housing Material Polycarbonate
- Color Option 1 Red
- Color Option 3 Blue
- Lumens Color 6 1.2
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) Yes
- Modbus RTU No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22L2SRGB14QP on Powermatic Associates is $74.00. Order now.
About the product
Banner Engineering S22L2SRGB14QP is a pilot light designed for I.O. block compatibility, featuring 14-color RGB multicolor LED illumination. This part includes an LED pilot light indicator housed in a black casing with a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It has a 22mm indicator diameter and is pre-wired with a 6" / 15cm pigtail that terminates with a 5-pin M12 Euro-style quick disconnect (QD) connector. The supply voltage required ranges from 10Vdc to 30Vdc, with a nominal range of 12Vdc to 24Vdc. It is designed for flush mounting in a 22mm hole with an M22 thread. The S22L2SRGB14QP operates within an ambient air temperature range of -40°C to +50°C and offers a degree of protection rated at IP66, IP67, and IP69K. The shape of the part is characterized by a flat window and a threaded cylindrical barrel, with a current consumption of 70mA. It also features 4 x digital inputs (10-30Vdc; NPN/PNP) for color control.
