S22LBRWPQ Banner Pick-to-Light Sensors

S22LBRWPQ on Powermatic Associates
Banner

Part#:S22LBRWPQ

Alt. Part#:800294

Manufacturer:Banner

Category:Pick-to-Light Sensors

Product Lifecycle:Active

Product description

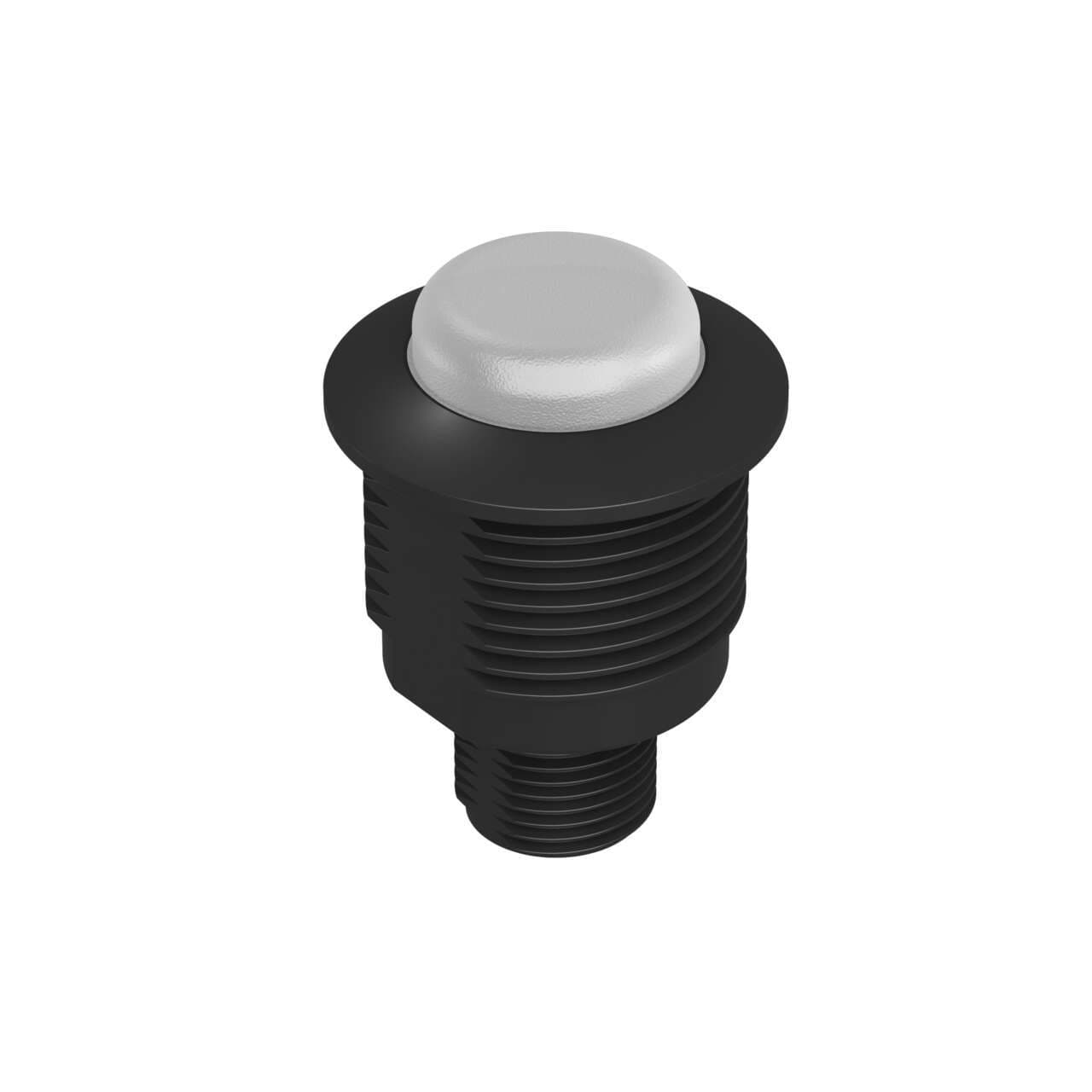

S22 EZ Light - 22 mm - IP67; Three Color: Blue Red White; 10-30 V dc PNP Input; 4-pin M12 Integral QD

Product Details

  • Weight
    54.43104 g
  • Country Of Origin
    US
  • Wireless
    No
  • IO Link
    No
  • Feature: Quick Disconnect
    Yes
  • Feature: Audible
    No
  • Multi-Color Device
    Single Color On
  • Feature: Chemical Resistant
    No
  • Feature: Hazardous Area
    No
  • Primary Window Material
    Polycarbonate Diffused
  • Pro-Editor Compatible (Discrete)
    No
  • Modbus RTU
    No
  • Feature: Washdown Rated
    Yes
  • Min Op. Temperature (°C)
    -40
  • Primary Housing Color
    Black
  • Max Op. Temperature (°C)
    50
  • NEMA Type and UL Type Rating
    NEMA and UL 4X, 13
  • Environmental Rating
    IP67; IP69
  • Physical Dimensions (LxWxH or DxH mm)
    26.0 x 35.3
  • Max Input Response Time (ms)
    1
  • Max Current Color (mA)
    25
  • Input Type
    PNP
  • Number of Input Pins/Conductors
    4
  • Supply Voltage
    10-30 V dc
  • Color Option 3
    White
  • Color 3 - Wavelength/Color Temp/Coordinates
    6000K
  • Lumens Color 3
    4.0
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Lumens Color 2
    1.1
  • Animation Option 1
    Solid On
  • Quick Disconnect Type
    M12 (Euro)
  • Color Option 2
    Red
  • Color 1 - Wavelength/Color Temp/Coordinates
    470 nm
  • Connection
    Integral QD
  • Lumens Color 1
    0.60
  • Color Option 1
    Blue
  • Color Technology
    Standard LED
  • Product Size (mm)
    22
  • Indication
    Yes
  • Housing Style
    Barrel Mount - Flat Window
  • Power
    DC
  • Mounting Thread
    M22 x 1.5
  • Number of Colors / Segments
    3
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Primary Housing Material
    Polycarbonate
  • Power Source
    DC
  • Cable Length (m)
    0.15

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LBRWPQ on Powermatic Associates is $41.00. Order now.

About the product

Banner Engineering S22LBRWPQ is a pilot light from the EZ-LIGHT series featuring a 3-color B/R/W color pattern LED illumination. This LED pilot light indicator is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base. It has a 22mm indicator diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector. The housing color is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). The S22LBRWPQ is designed for flush mounting in a 22mm hole with an M22 thread. It can operate in ambient air temperatures ranging from -40°C to +50°C. This part offers a degree of protection rated at IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. It features a flat window and a threaded cylindrical barrel shape, with a current consumption of 25mA. Additionally, it includes 3 x digital inputs (10-30Vdc; PNP) for color control.
