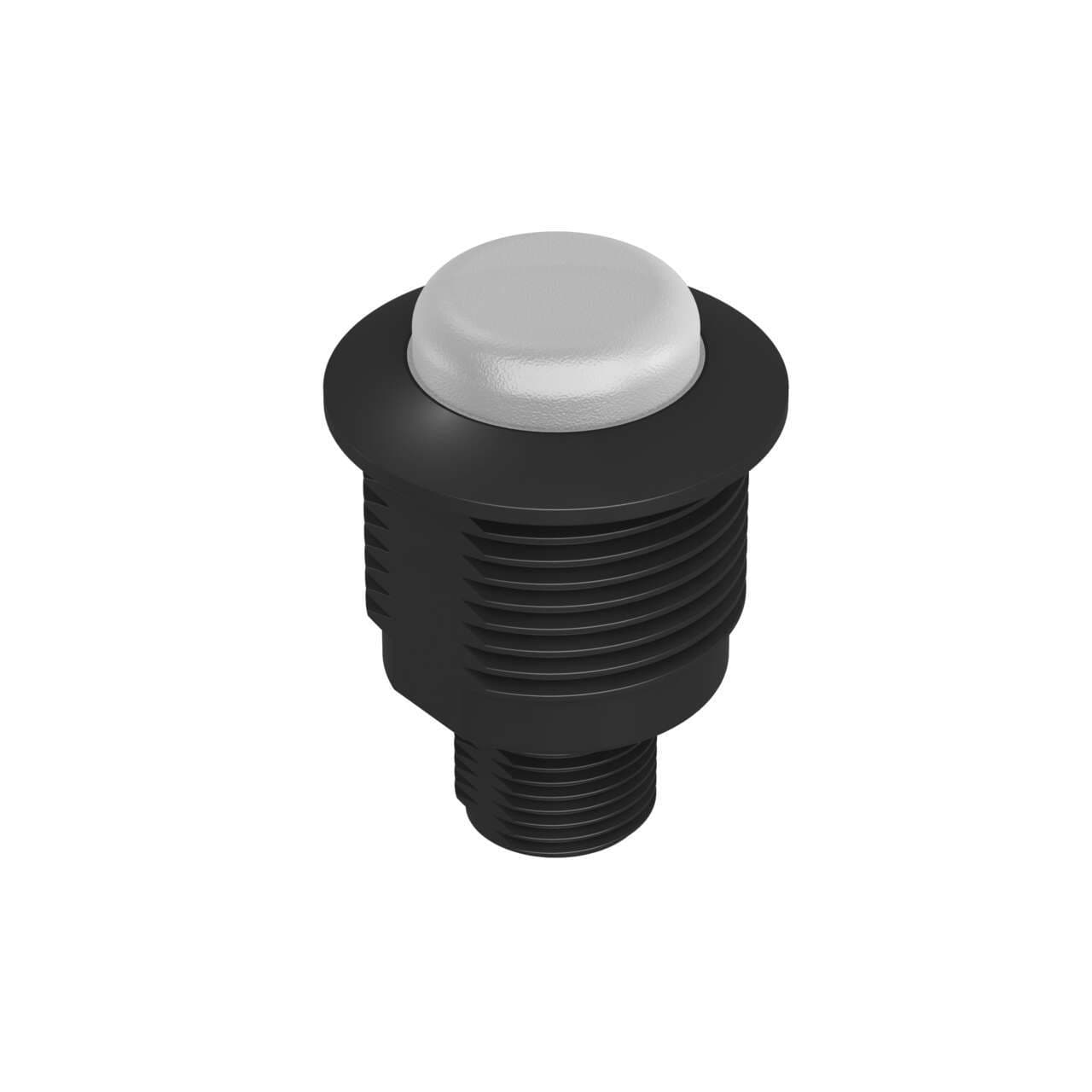

S22LGRBPQ Banner Pick-to-Light Sensors
Part#:S22LGRBPQ
Alt. Part#:86104
Manufacturer:Banner
Category:Pick-to-Light Sensors
Product Lifecycle:Active
Product description
S22 EZ Light - 22 mm - IP67; Three Color: Green Red Blue; 10-30 V dc PNP Input; 4-pin M12 Integral QD
Product Details
- Weight 54.43104 g
- Country Of Origin CN
- Housing Style Barrel Mount - Flat Window
- Animation Option 1 Solid On
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color 1 - Wavelength/Color Temp/Coordinates 525 nm
- Color 3 - Wavelength/Color Temp/Coordinates 470 nm
- Number of Colors / Segments 3
- Lumens Color 1 4.1
- Lumens Color 2 1.1
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Quick Disconnect Yes
- Mounting Thread M22 x 1.5
- Color Technology Standard LED
- Color Option 3 Blue
- Environmental Rating IP67; IP69
- Wireless No
- Physical Dimensions (LxWxH or DxH mm) 26.0 x 35.3
- Feature: Chemical Resistant No
- Cable Length (m) 0.15
- Connection Integral QD
- Color Option 2 Red
- Number of Input Pins/Conductors 4
- Feature: Washdown Rated Yes
- Modbus RTU No
- Primary Housing Material Polycarbonate
- Product Size (mm) 22
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Multi-Color Device Single Color On
- Input Type PNP
- Primary Housing Color Black
- IO Link No
- Power DC
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 1
- Feature: Audible No
- Power Source DC
- Color Option 1 Green
- Max Current Color (mA) 25
- Lumens Color 3 0.60
- Feature: Hazardous Area No
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Min Op. Temperature (°C) -40
- Max Op. Temperature (°C) 50
- Pro-Editor Compatible (Discrete) No
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of S22LGRBPQ on Powermatic Associates is $41.00. Order now.
About the product
Banner Engineering S22LGRBPQ is a pilot light from the EZ-LIGHT series featuring a 3-color G/R/B color pattern LED illumination. This part is designed with a polycarbonate (PC) diffused window and a polycarbonate (PC) base, ensuring durability. It has a 22mm indicator diameter and is equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage range of 10Vdc-30Vdc, with 12Vdc-24Vdc being nominal. It is designed for flush mounting in a 22mm hole with an M22 thread. The S22LGRBPQ can operate in ambient air temperatures ranging from -40°C to +50°C and offers a high degree of protection with ratings of IP67, IP69K, NEMA 4X, NEMA 13, UL type 4X, and UL type 13. Its shape is characterized by a flat window and a threaded cylindrical barrel. The current consumption is 25mA, and it features 3 x digital inputs (10-30Vdc; PNP) for color control.
